Model :
SKU : MB-ASUS WS W880-ACE SE

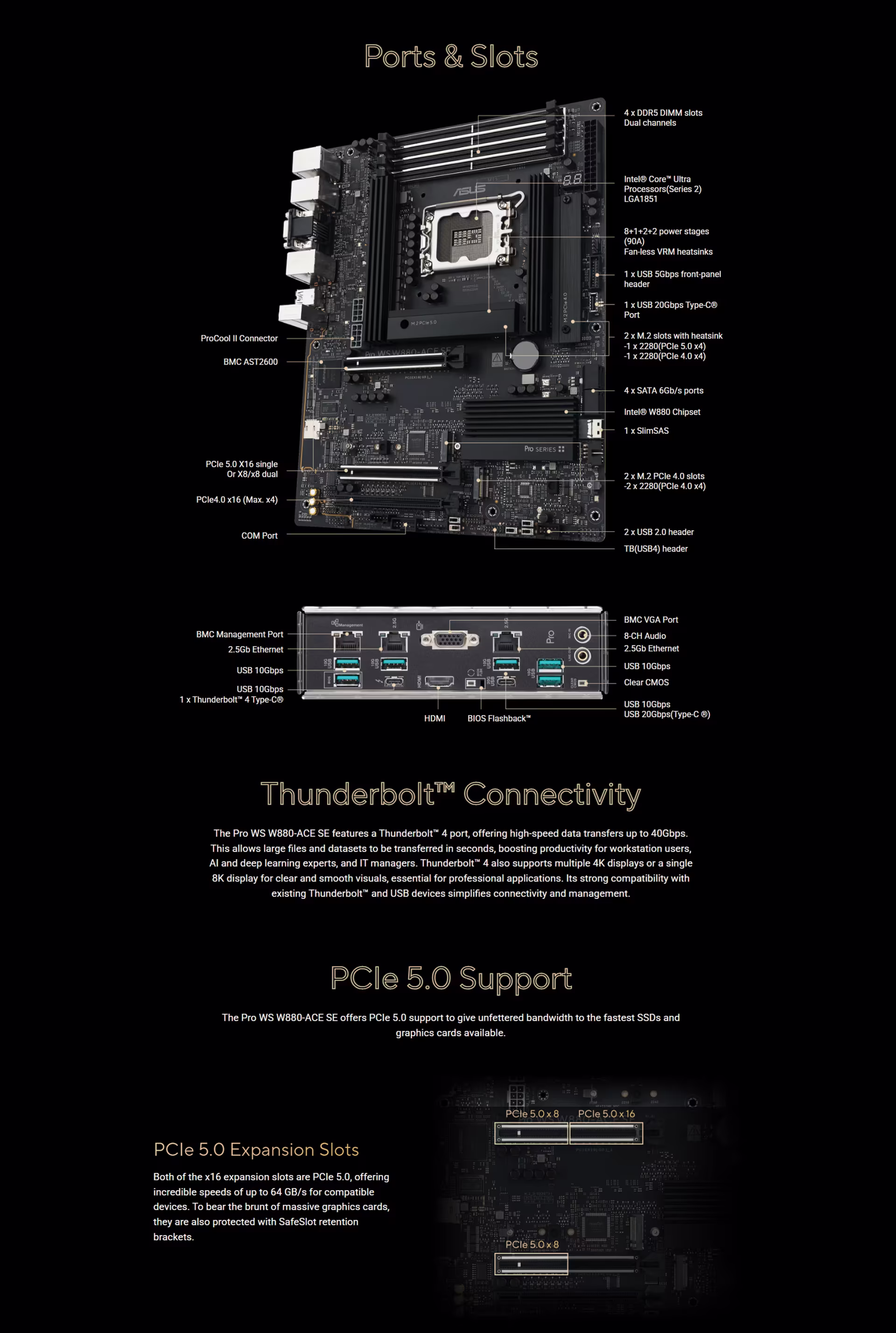

Intel W880 LGA1851 ATX workstation motherboard with PCIe® 5.0, DDR5 support, Dual 2.5Gb Ethernet, four M.2 slots, plus a USB 20Gbps front-panel connector and onboard BMC.
Ready for advanced AI PCs : Designed for the future of AI computing, with the placement and connectivity needed for demanding AI applications
Intel LGA1851 socket : Ready for Intel® Core™ Ultra 9, 7, and 5 desktop processors
Robust performance : 8+1+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
Future-proofed connectivity : Thunderbolt™ 4, Dual 2.5Gb Ethernet, two PCIe® 5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header
Exclusive AI technologies : AI Cooling II and AI Advisor
DIY-friendly design : M.2 Q-Latch, BIOS FlashBack™, Q-Connector
Server-grade IPMI remote management and onboard BMC : Hardware- and software-level management with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management
The ASUS Pro WS W880-ACE SE (90MB1KV0-M0EAY0) is engineered to anchor high-performance systems in the era of Artificial Intelligence. Supporting the latest Intel processors on the LGA 1851 socket, this board is optimized for multi-threaded tasks, complex simulations, and real-time AI content creation. Its "SE" designation signifies enhanced management and stability features tailored for professional environments.
Elite Connectivity: Dual Thunderbolt
Experience unparalleled data transfer speeds and display flexibility with two built-in Thunderbolt 4 ports. Capable of 40Gbps bi-directional bandwidth, these ports allow you to daisy-chain high-speed external storage arrays, connect dual 4K monitors, or utilize external GPU enclosures. This level of connectivity makes the W880-ACE SE a hub for professional media production and engineering.
Enterprise Stability: DDR5 ECC & PCIe 5.0
Mission-critical reliability is at the core of the Pro WS series. Support for DDR5 ECC (Error-Correction Code) memory ensures that your system remains stable during long-duration calculations by fixing memory errors on the fly. Coupled with PCIe 5.0 support for the latest graphics cards and NVMe storage, you get the highest data integrity without sacrificing top-tier speed.
Smart Management & Industrial Design
The W880-ACE SE is built for 24/7 operation. It features ASUS Control Center Express, a centralized IT management tool that simplifies system monitoring and security. The board's aesthetics are professional and functional, featuring heavy-duty heatsinks on the VRM and M.2 slots to prevent thermal throttling under sustained heavy workloads.
Why This Workstation Board Stands Out
LGA 1851 Ready: Future-proof support for the latest generation of Intel workstation processors.
AI PC Ready: Optimized power delivery and data paths for local AI hardware accelerators.
Thunderbolt 4 Integration: Native high-speed ports for professional peripherals.
Dual 2.5G/5G/10G Ready: Robust networking options designed for high-speed local asset transfers.
| Model | Pro WS W880-ACE SE |
|---|---|
| CPU Support | Intel Core Ultra Processors (Series 2) – LGA1851 Supports Intel Turbo Boost 2.0 & Turbo Boost Max 3.0 |
| Chipset | Intel W880 |
| Memory | 4 x DIMM, Max 256GB DDR5 Up to 9066+ MT/s (OC) ECC & Non-ECC Unbuffered / CUDIMM Dual Channel XMP, AEMP III, DIMM Fit & DIMM Flex |
| Graphics | 1 x HDMI (4K@60Hz) 1 x Thunderbolt 4 (USB Type-C, up to 8K@60Hz with DSC) 1 x VGA (AST2600) |
| Expansion Slots | 2 x PCIe 5.0 x16 (x16 or x8/x8) 1 x PCIe 4.0 x16 (x4 mode) |
| Storage | 4 x M.2 (1 x PCIe 5.0 x4, 3 x PCIe 4.0 x4) 1 x SlimSAS (PCIe 4.0 x4 / up to 4 SATA) 8 x SATA 6Gb/s RAID 0/1/5/10 Support |
| Ethernet | 2 x Intel 2.5Gb LAN 1 x Realtek 1Gb LAN (Dedicated for AST2600) |
| Rear USB | 1 x Thunderbolt 4 (Type-C) 1 x USB 20Gbps (Type-C) 6 x USB 10Gbps (Type-A) |
| Front USB | 1 x USB 20Gbps (Type-C) 1 x USB 5Gbps header (2 ports) 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek ALC1220P 7.1 HD Audio 120dB SNR Playback / 113dB Recording Supports 32-bit / 192kHz |
| Internal Connectors | 1 x 24-pin Power 2 x 8-pin CPU Power 5 x Chassis Fan Headers 1 x CPU Fan / CPU OPT 1 x W_PUMP+ 4 x M.2 Slots 4 x SATA Thunderbolt Header TPM Header COM Port Header |
| Remote Management | Built-in BMC (AST2600) IPMI Support microSD Slot Dedicated BMC LAN ASUS Control Center Express (ACCE) |
| Special Features | ASUS 5X Protection III SafeSlot Core+ & SafeDIMM Q-Code, Q-LED, Q-DIMM, Q-Slot BIOS FlashBack & Clear CMOS 24/7 Reliability Design |
| BIOS | 256 Mb Flash ROM UEFI AMI BIOS (Text-based) |
| Operating System | Windows 11 (22H2 & later) Windows 10 64-bit (21H2 & later) |
| Form Factor | ATX 12 x 9.6 inch (30.5 x 24.4 cm) |
