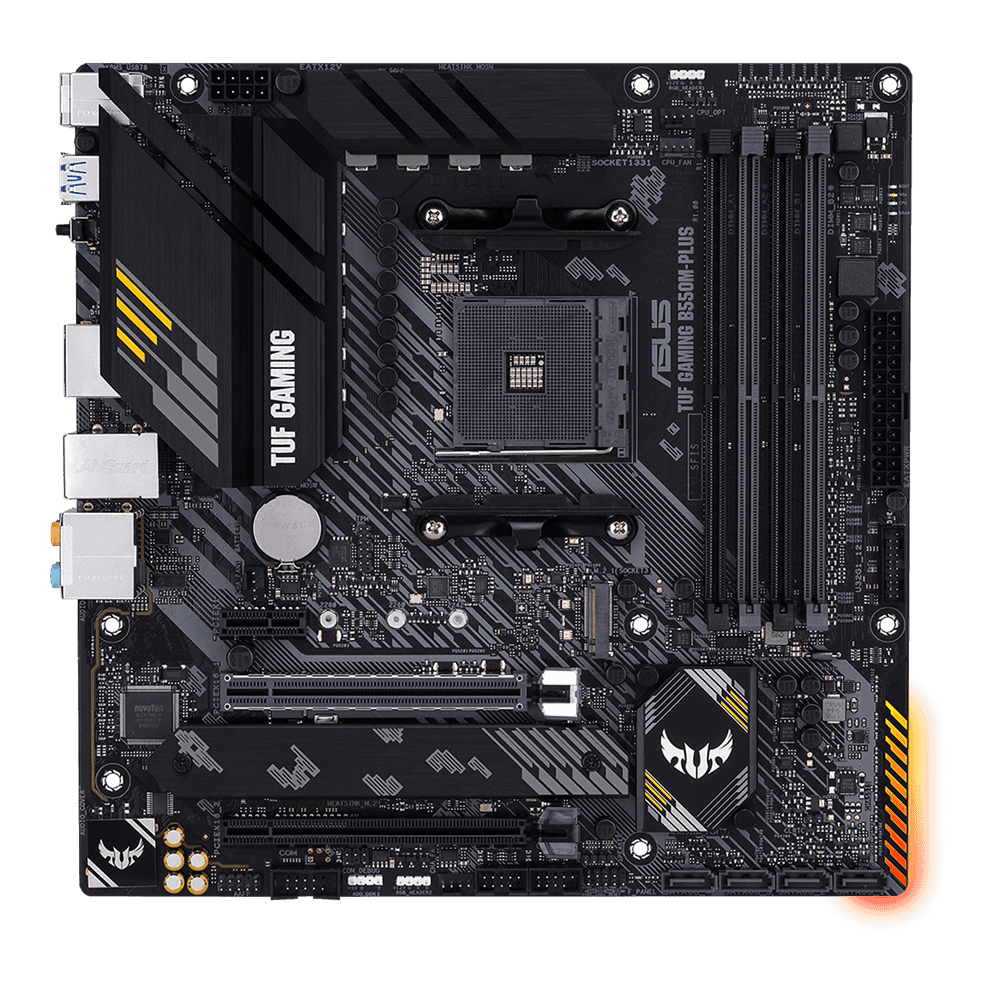

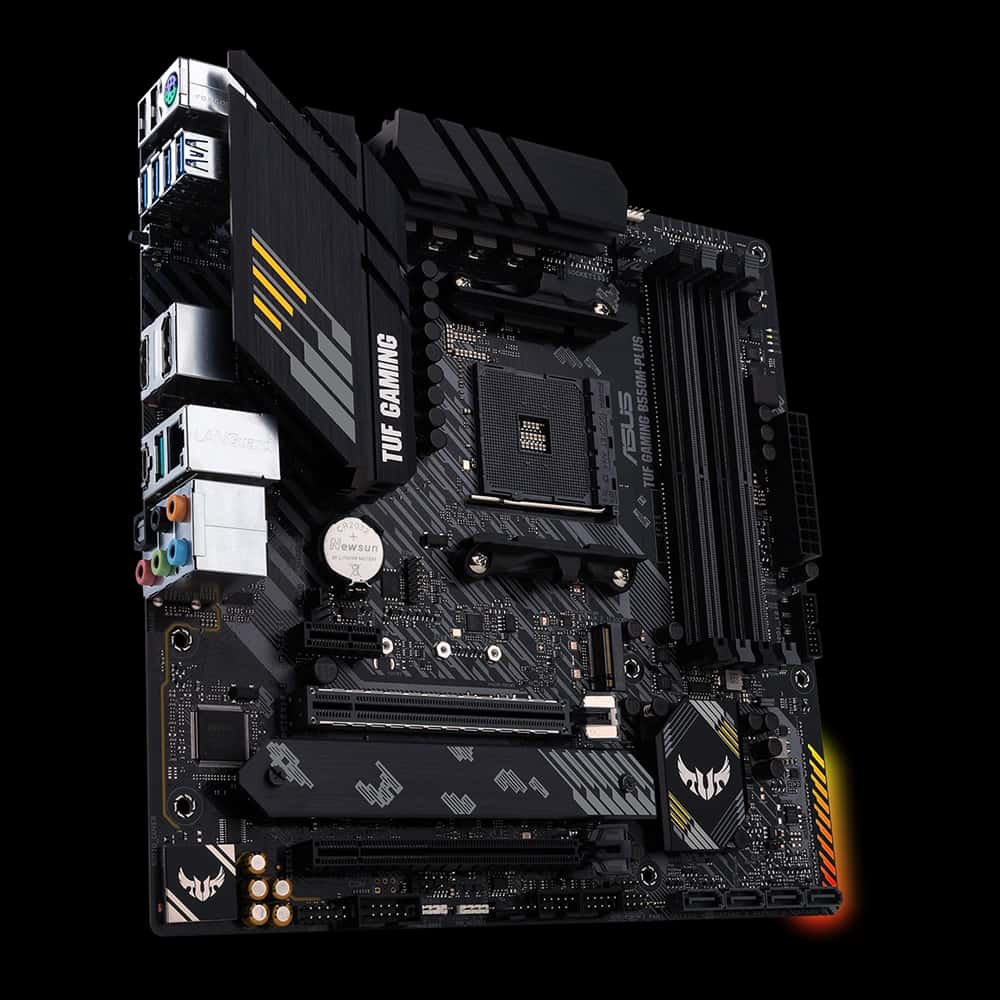

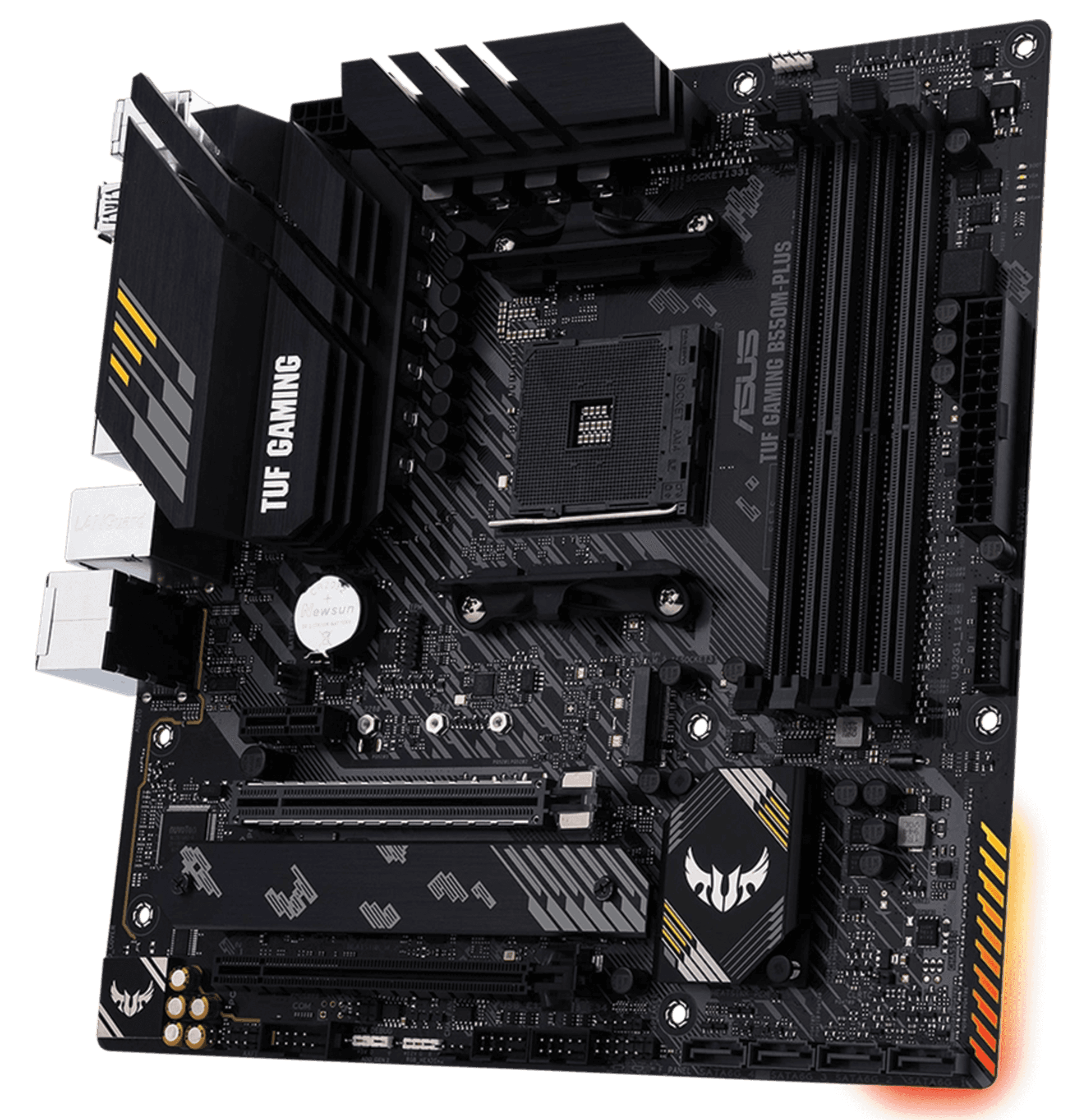

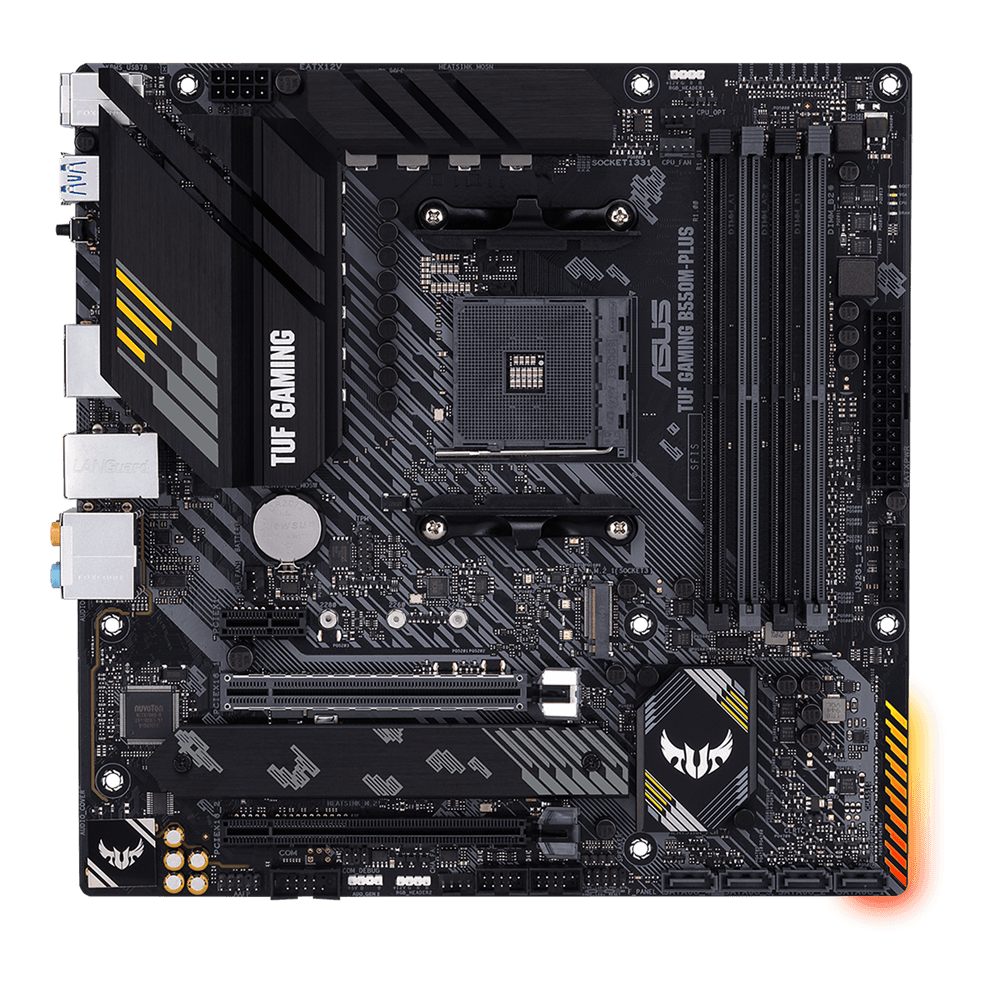

ASUS TUF Gaming B550M-PLUS AMD AM4 microATX Motherboard, PCIe 4.0, Dual M.2, DDR4 Aura Sync RGB | 90MB14A0-M0EAY0

AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support
Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM for maximum durability
Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
Made for online gaming: 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology
Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
AI noise-canceling microphone: Provides crystal-clear in-game voice communication

Performance / Technology

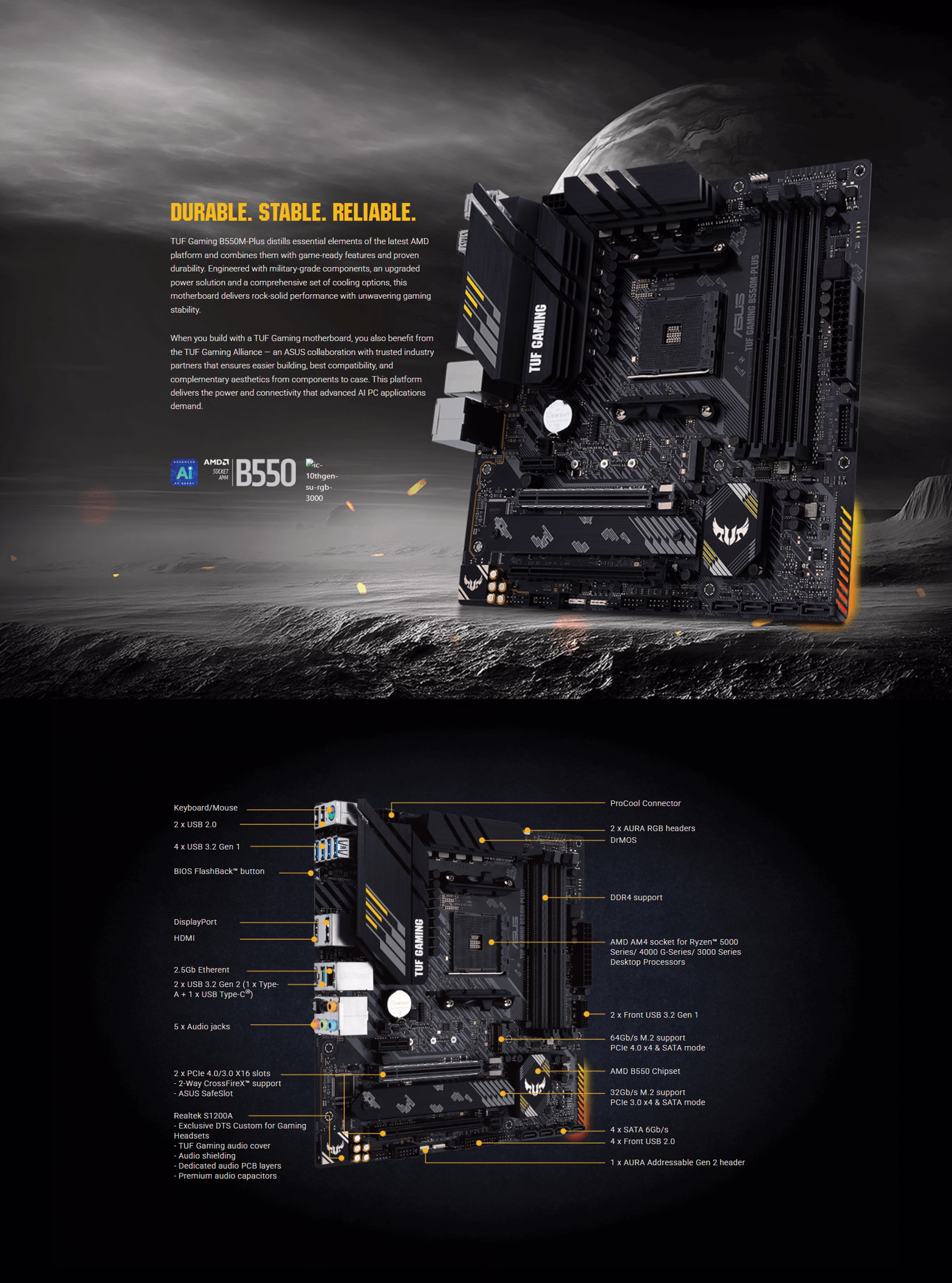

The underlying performance layout of the TUF Gaming B550M-PLUS is dedicated to clean power delivery and aggressive thermal management. The 8+2 DrMOS power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the exact power and efficiency that AMD's high-core-count Ryzen processors demand. To keep temperatures under control, the board features massive VRM heatsinks, thermal pads, and a dedicated M.2 heatsink to prevent SSD throttling. By fully leveraging PCIe 4.0 technology, the primary x16 slot and primary M.2 slot provide instantaneous data transfer rates, virtually eliminating in-game load screens and texture pop-in.

Design & Ergonomics

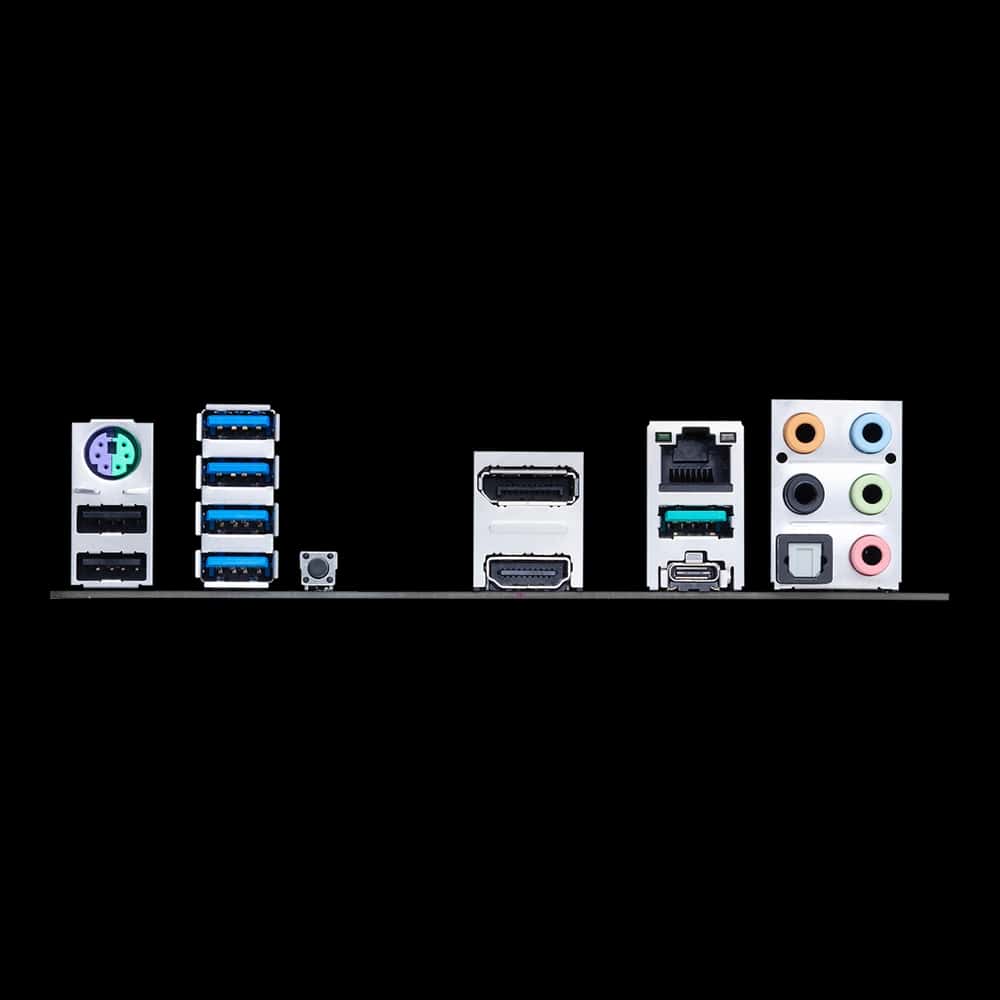

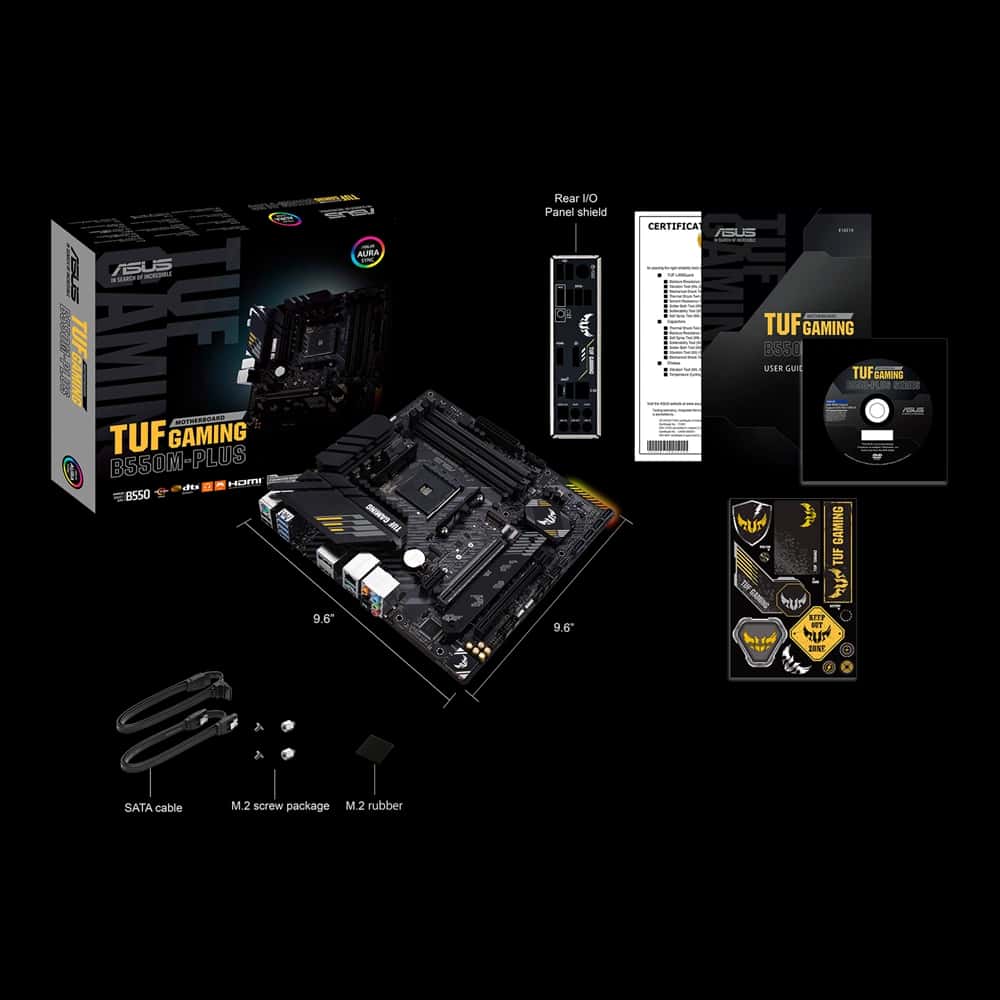

The structural framework of this microATX board showcases the signature TUF Gaming aesthetic, featuring a stealthy black PCB accented by industrial yellow racing stripes and geometric patterns. Despite its smaller mATX size, the board's layout is incredibly DIY-friendly. It includes ASUS SafeSlot core protection, which reinforces the primary PCIe slot with metal to safely support heavy, high-end graphics cards without bending or shearing. Additionally, the pre-mounted I/O shield simplifies the installation process while offering advanced ESD (Electrostatic Discharge) guards to protect your rear connection ports.

Compatibility / Use Cases
This motherboard is the undisputed centerpiece for gamers and creators looking to build a powerful, yet space-conscious system. It functions flawlessly inside compact microATX cases, making it ideal for college dorm setups, LAN party rigs, or minimalist desktop environments. Armed with Realtek 2.5Gb Ethernet, it provides a massive networking upgrade over standard Gigabit connections, ensuring incredibly low-latency online gaming and rapid high-res video streaming. The four DDR4 DIMM slots allow users to start with a standard 16GB memory kit and easily upgrade to a massive 128GB capacity down the road for heavy 3D rendering and multitasking.

Why This Product Stands Out
Many budget-friendly microATX motherboards strip away essential features, leaving gamers with inadequate cooling, slow networking, and limited upgrade paths. The ASUS TUF Gaming B550M-PLUS entirely overcomes these compromises by packing premium ATX-level features—like PCIe 4.0, 2.5G LAN, and high-tier VRM cooling—into a smaller, highly durable package. Combining this immense hardware capability with military-grade component certification and robust Aura Sync RGB customization ensures your compact gaming station remains incredibly fast, totally reliable, and brilliantly personalized.
