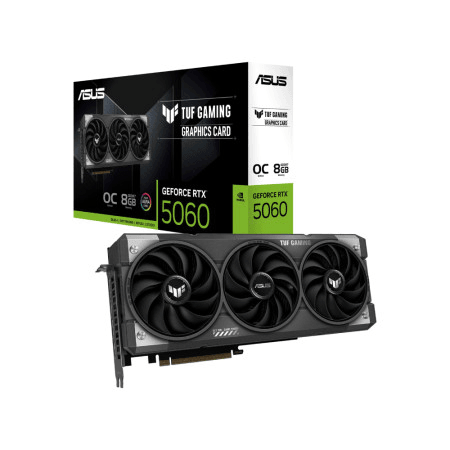

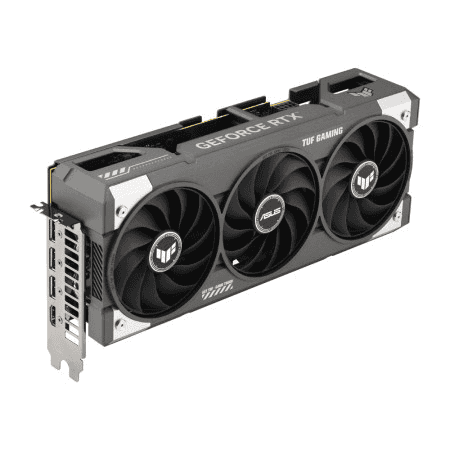

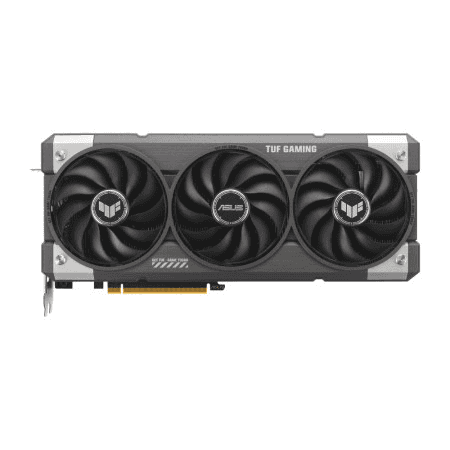

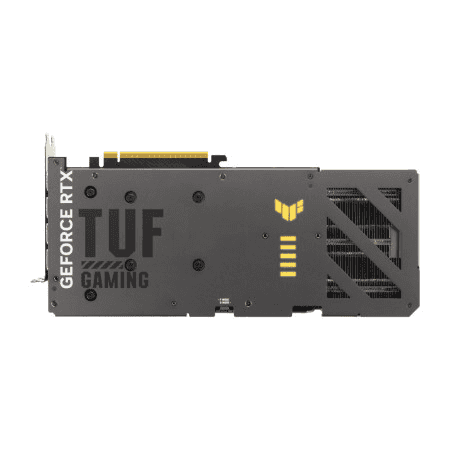

ASUS TUF Gaming GeForce RTX 5060 8GB GDDR7 OC Edition Graphic card, NVIDIA Blackwell Architecture

Customer Service	Quick Links
Contact Us	My Account
Warranty & Repairs Policy	Cart
Shipping Policy	Wishlist
Online Returns Policy	View All Categories
Payment Terms

Customer Service

Quick Links

My Account

Warranty & Repairs Policy

Cart

Shipping Policy

Wishlist

Online Returns Policy

View All Categories

Payment Terms

Model

TUF-RTX5060-O8G-GAMING

Graphic Engine

NVIDIA GeForce RTX 5060

AI Performance

648 TOPs

Bus Standard

PCI Express 5.0

OpenGL

OpenGL 4.6

Video Memory

8GB GDDR7

Engine Clock

OC Mode: 2677 MHz
Default Mode: 2640 MHz (Boost Clock)

CUDA Core

3840

Memory Speed

28 Gbps

Memory Interface

128-bit

Maximum Resolution

7680 x 4320 (Digital Max)

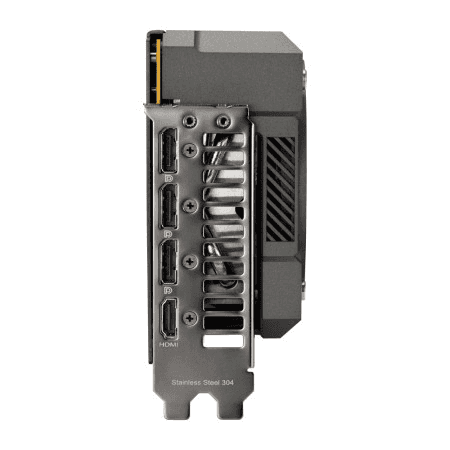

Display Interface

1 x HDMI 2.1b (Native)
3 x DisplayPort 2.1b (Native)

HDCP Support

Yes (2.3)

Maximum Display Support

NVLink / Crossfire Support

Accessories

1 x Speedsetup Manual
1 x TUF Velcro Hook & Loop
1 x TUF Gaming Certificate
1 x Thank You Card

Software

ASUS GPU Tweak III
MuseTree
GeForce Game Ready Driver & Studio Driver
All available for download on the support site.

Dimensions

302 x 133.5 x 62 mm

Recommended PSU

550W

Power Connectors

1 x 8-pin

Slot

3.1 slot

AURA SYNC

ARGB

Note

* Wattage recommendation is based on a fully overclocked GPU and CPU system.
* For tailored suggestions, visit: ASUS PSU Guide
* Specifications subject to change. Check supplier for exact offers.

Description

GeForce RTX 50 Series - Game Changer! The Most Advanced AI platform for Gamers, Creators and beyond. Multiply performance with NVIDIA DLSS 4.5, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.

Specification

Model	TUF-RTX5060-O8G-GAMING
Graphic Engine	NVIDIA GeForce RTX 5060
AI Performance	648 TOPs
Bus Standard	PCI Express 5.0
OpenGL	OpenGL 4.6
Video Memory	8GB GDDR7
Engine Clock	OC Mode: 2677 MHz Default Mode: 2640 MHz (Boost Clock)
CUDA Core	3840
Memory Speed	28 Gbps
Memory Interface	128-bit
Maximum Resolution	7680 x 4320 (Digital Max)
Display Interface	1 x HDMI 2.1b (Native) 3 x DisplayPort 2.1b (Native)
HDCP Support	Yes (2.3)
Maximum Display Support	4
NVLink / Crossfire Support	No
Accessories	1 x Speedsetup Manual 1 x TUF Velcro Hook & Loop 1 x TUF Gaming Certificate 1 x Thank You Card
Software	ASUS GPU Tweak III MuseTree GeForce Game Ready Driver & Studio Driver All available for download on the support site.
Dimensions	302 x 133.5 x 62 mm
Recommended PSU	550W
Power Connectors	1 x 8-pin
Slot	3.1 slot
AURA SYNC	ARGB
Note	* Wattage recommendation is based on a fully overclocked GPU and CPU system. * For tailored suggestions, visit: ASUS PSU Guide * Specifications subject to change. Check supplier for exact offers.

Intel Core i5-14400F 2.5 GHz 10-Core LGA 1700 oem Processor, 10 Cores & 16 Threads, 20MB Cache, 5 GHz Maximum Turbo Boost, Dual-Channel DDR5-4800 Memory / 192GB Max, Hybrid Core Arc, Tray | 14400F-Tray | SRN47

729.00

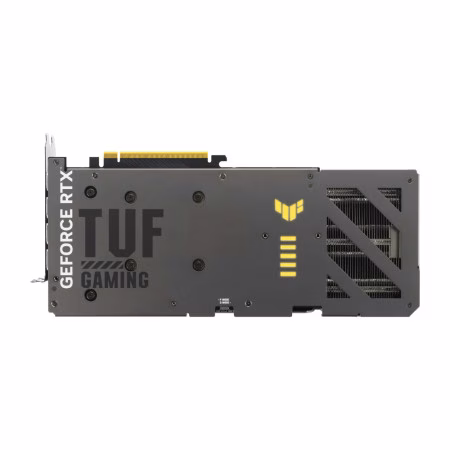

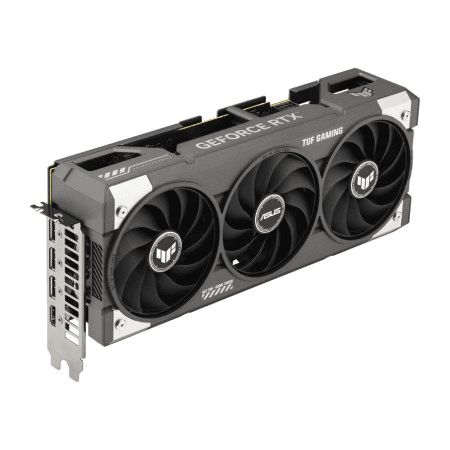

ASUS TUF Gaming GeForce RTX 5060 8GB GDDR7 OC Edition Graphic card, 128-bit 28 Gbps, 3840 CUDA Core, 2677MHz OC Clock, PCI Express 5.0, NVIDIA Blackwell Architecture | 90YV0N00-M0NA00
