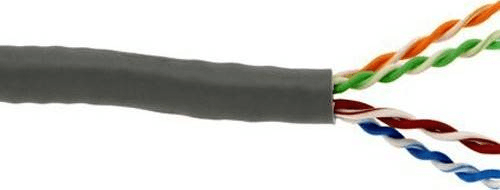

Cat6A 10G U/UTP 23AWG Cable Rolls, 4 Pairs Unshielded Twisted Pair (U/UTP) Cable, FR PVC Corrugated Jacket Central Cross separator, Available in 305 mtr MDF spools in a box, Gray | NCB-6AUGRYR-305
Model :
SKU : CAT6A-DLINK 23AWG-
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Cat6A 10G U/UTP 23AWG Cable Rolls, 4 Pairs Unshielded Twisted Pair (U/UTP) Cable, FR PVC Corrugated Jacket Central Cross separator, Available in 305 mtr MDF spools in a box, Gray | NCB-6AUGRYR-305
| Nominal Velocity of Propagation | 69% |
| Characteristic Impedance | 100+15?? |
| Conductor Resistance | < 9.38??/100m |
| Mutual Capacitance | < 5.6nF/100m |
| Resistance Unbalance | 5% Max |
| Capacitance Unbalance | 330pF/100m |
| Delay Skew | < 45nS |
Construction
| Conductor | 23AWG Solid Bare Copper |
| Insulation Material | HD-PE |
| Cable Diameter | 6.5 mm nominal |
Specification
Cat6A 10G U/UTP 23AWG Cable Rolls, 4 Pairs Unshielded Twisted Pair (U/UTP) Cable, FR PVC Corrugated Jacket Central Cross separator, Available in 305 mtr MDF spools in a box, Gray | NCB-6AUGRYR-305
| Nominal Velocity of Propagation | 69% |
| Characteristic Impedance | 100+15?? |
| Conductor Resistance | < 9.38??/100m |
| Mutual Capacitance | < 5.6nF/100m |
| Resistance Unbalance | 5% Max |
| Capacitance Unbalance | 330pF/100m |
| Delay Skew | < 45nS |
Construction
| Conductor | 23AWG Solid Bare Copper |
| Insulation Material | HD-PE |
| Cable Diameter | 6.5 mm nominal |
