At the front, the integrated STAGE LCD offers two distinct modes:
•
Extended Display Mode – Functions as a true secondary monitor to extend your desktop or showcase any live system content.
•
Custom Playback Mode – Includes 2 preloaded animation effects designed to complement figure and collectible displays. Users can also upload personalized content via MicroSD card (JPG and MP4 formats) to create a uniquely immersive visual experience.

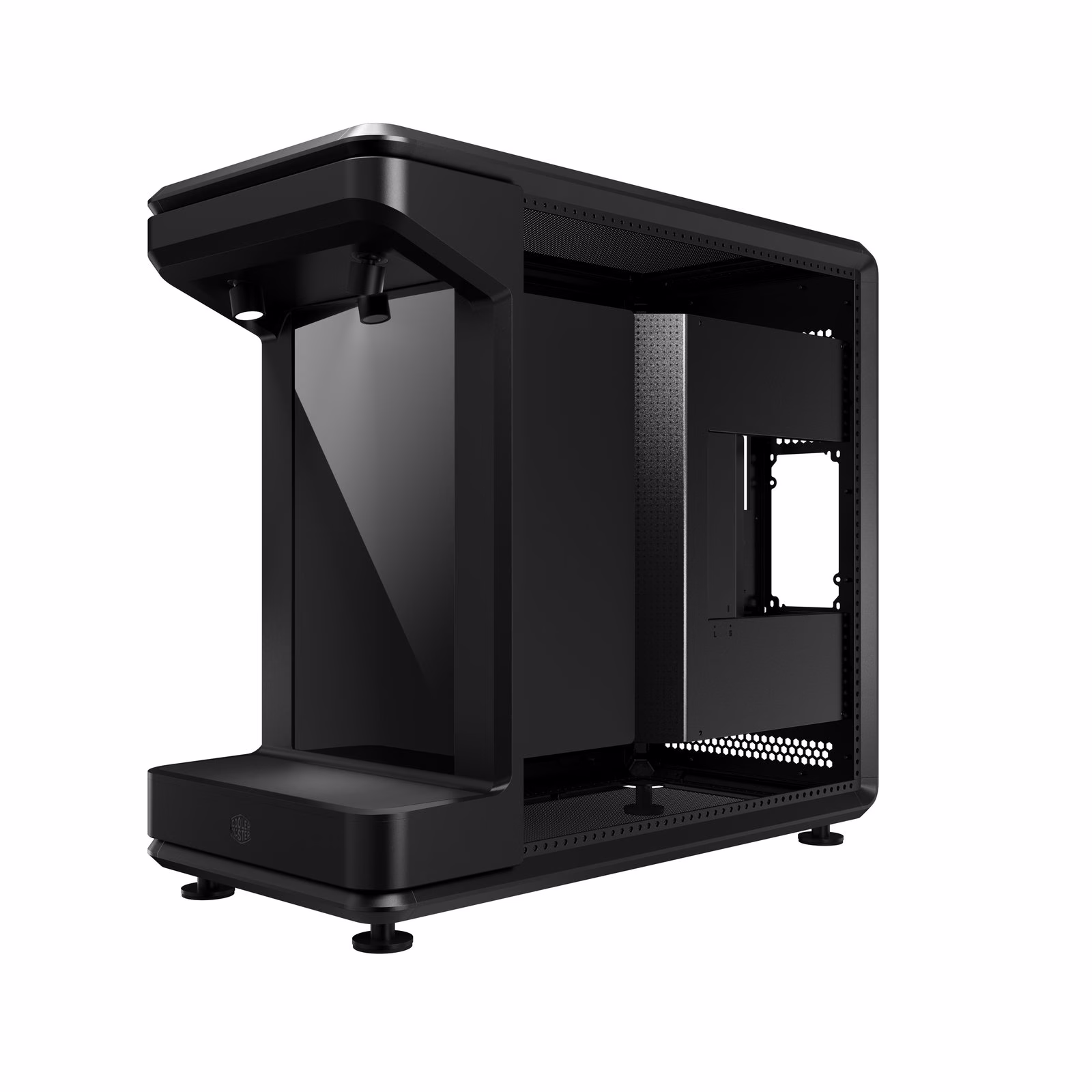

Front Display Panel for Personal ExpressionAn integrated front-facing LCD screen transforms the build from a static showcase into a visual platform for personal expression.Designed to complement collectible displays such as figures and themed setups, the screen allows you to curate content that enhances your aesthetic story.With its open-frame design, the chassis offers complete freedom to position and showcase your items without restriction—turning your build into a stage that’s uniquely yours.
Massive Cooling Compatibility To ensure exceptional thermal performance, the case supports fan sizes ranging from 120 mm to 200 mm, with space for up to twelve 120 mm fans—six on the top and six on the bottom. It also supports radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.
Compatible with Standard and BTF Motherboards
Compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor.Features 110 mm of cable routing clearance for a clean and clutter-free showcase.
PCIe 5.0 Riser Cable IncludedIncludes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen performance and an elevated presentation right out of the box.
Wide Component Compatibility
Accommodates up to 430 mm GPUsand 210 mm PSUs built to handle flagship components without compromise.
Next-Gen Connectivity at Your Fingertips
Features USB 4.0 Gen 2×2 Type-C (up to 20G) and 2x USB 3.2 Gen 1 Type-A ports (up to 5G), providing ultra-fast data transfer and future-ready accessibility.
| Feature | Specification |
|---|---|
| Product Name | MASTERFRAME 360 STAGE LCD |
| Series | MASTERFRAME Series |
| Model Number | MF360-KHNN-S02 |
| Color | Black |
| Exterior Material | SGCC Steel |
| Side Panels | Tempered Glass (Left & Right) |
| Dimensions (Incl. Protrusions) | 549 × 291 × 581 mm |
| Dimensions (Excl. Protrusions) | 511 × 291 × 581 mm |
| Volume (Without Panels / Feet) | 86 L |
| Volume (Fully Assembled) | 93 L |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, BTF (ATX) |
| Power Supply Support | ATX |
| PCI Expansion Slots | 3.5 |
| 3.5" Drive Bays | 0 |
| 2.5" / 3.5" Drive Support | 1× HDD or 2× SSD |
| Tool-Free Drive Bays | 1× HDD or 2× SSD |
| Front I/O Ports | 2× USB 3.2 Gen 1 Type-A (5Gbps), 1× USB 4.0 Gen 2×2 Type-C (20Gbps) |
| Audio I/O | 1× 3.5mm Headset Jack (Audio + Mic) |
| Top Fan Support | 6× 120mm, 2× 140mm, 2× 180mm, 2× 200mm |
