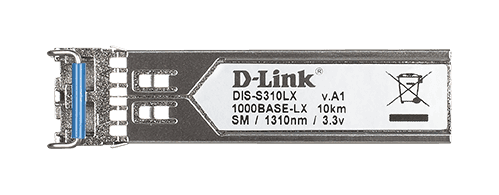

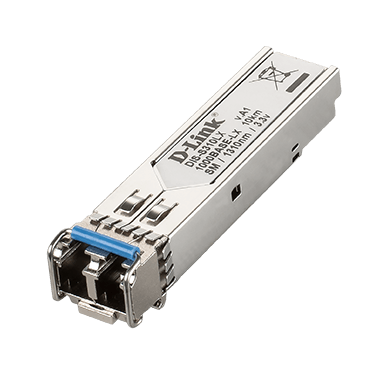

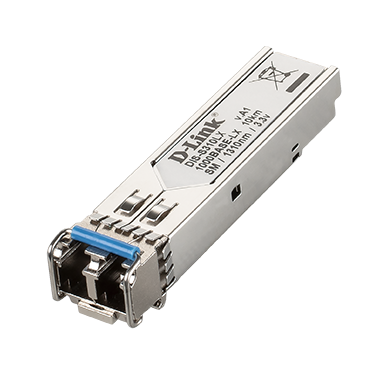

D Link 1-port Mini-GBIC SFP to 1000BaseLX Single-Mode 10km Fibre Transceiver, up to 10 km | DIS-S310LX
Model :
SKU : DLINK DIS-S310LX SM
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
D Link 1-port Mini-GBIC SFP to 1000BaseLX Single-Mode 10km Fibre Transceiver, up to 10 km Transceiver Features and Specifications
| Features | Hot Pluggable, MSA Compliant, RoHS Compliant |
| Compliant Standard | IEEE802.3z, 1000BASE-LX |
| Transceiver Type | SFP |
| Fiber Channel FC-PI standard | 100-SM-LC-L |
| Fiber Media support | Single-Mode |
| Distance | 10 km |
| Speed | 1.25 Gbps |
| Connector | Duplex LC Connector |
| Single/bi Direction | Single-direction |
| Wavelength | 1310 nm |
| Output Optical Power (TX Optical Power) | MAX: -3 dBm, MIN: -8 dBm |
| Input Optical Power (RX Optical Power) | MAX: -3 dBm, MIN: -24 dBm |
| Sensitivity | -24 dBm |
| Cable Type | Single-mode 9/125um fibre |
| Power | 3.3V |
| Max Input Current | 300 mA |
| Power Budget (MIN Power Budget) | 16 dB |
| MAX Power Budget | 21 dB |
| Heat Generated | 2.376 kJ/h |
| MTBF (hours) | 223,857 hours |
| Operation Temperature | -40~85??? |
| Storage Temperature | -40~85??? |
| Humidity (Operating) | 5%~95% |
| Humidity (Storage) | 5%~95% |
| Dimension (W x D x H) | 13.7 x 55.4 x 8.5 mm |
| Weight | 20 g |
| Bail Latch Colour | Blue |
| Emission (EMI) and Safety Certifications |
EMI: CE, FCC, VCCI Safety: LVD, EN 60825-1, EN 60825-2 |
Specification
D Link 1-port Mini-GBIC SFP to 1000BaseLX Single-Mode 10km Fibre Transceiver, up to 10 km Transceiver Features and Specifications
| Features | Hot Pluggable, MSA Compliant, RoHS Compliant |
| Compliant Standard | IEEE802.3z, 1000BASE-LX |
| Transceiver Type | SFP |
| Fiber Channel FC-PI standard | 100-SM-LC-L |
| Fiber Media support | Single-Mode |
| Distance | 10 km |
| Speed | 1.25 Gbps |
| Connector | Duplex LC Connector |
| Single/bi Direction | Single-direction |
| Wavelength | 1310 nm |
| Output Optical Power (TX Optical Power) | MAX: -3 dBm, MIN: -8 dBm |
| Input Optical Power (RX Optical Power) | MAX: -3 dBm, MIN: -24 dBm |
| Sensitivity | -24 dBm |
| Cable Type | Single-mode 9/125um fibre |
| Power | 3.3V |
| Max Input Current | 300 mA |
| Power Budget (MIN Power Budget) | 16 dB |
| MAX Power Budget | 21 dB |
| Heat Generated | 2.376 kJ/h |
| MTBF (hours) | 223,857 hours |
| Operation Temperature | -40~85??? |
| Storage Temperature | -40~85??? |
| Humidity (Operating) | 5%~95% |
| Humidity (Storage) | 5%~95% |
| Dimension (W x D x H) | 13.7 x 55.4 x 8.5 mm |
| Weight | 20 g |
| Bail Latch Colour | Blue |
| Emission (EMI) and Safety Certifications |
EMI: CE, FCC, VCCI Safety: LVD, EN 60825-1, EN 60825-2 |
