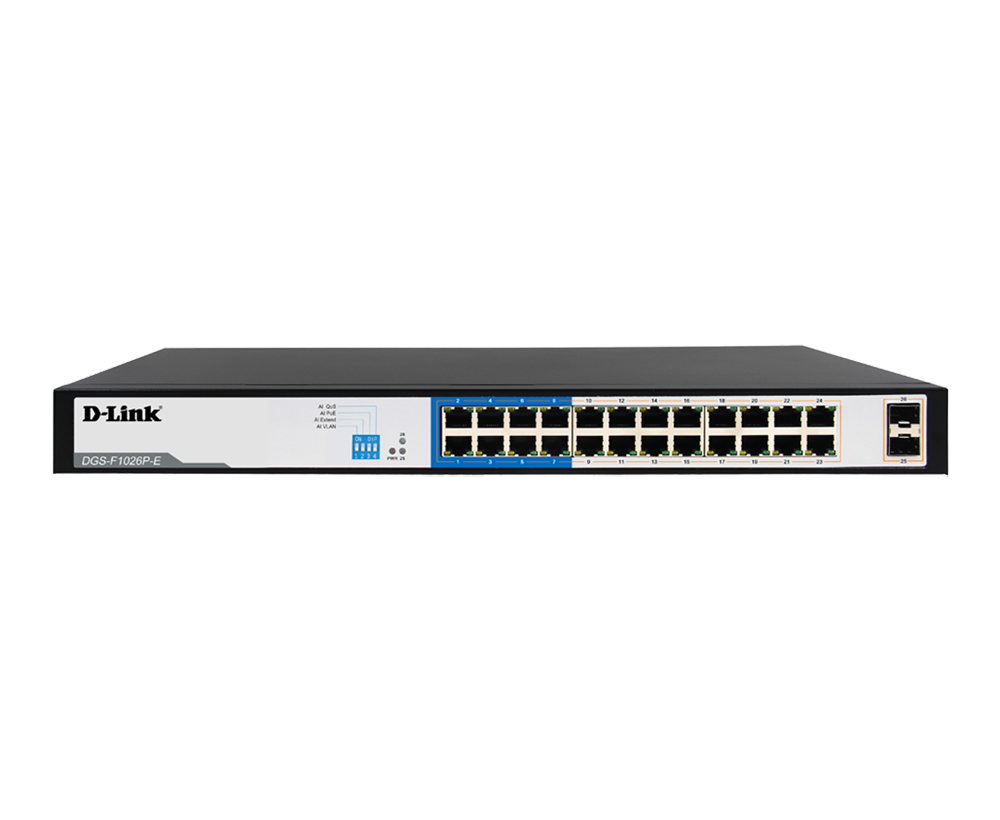

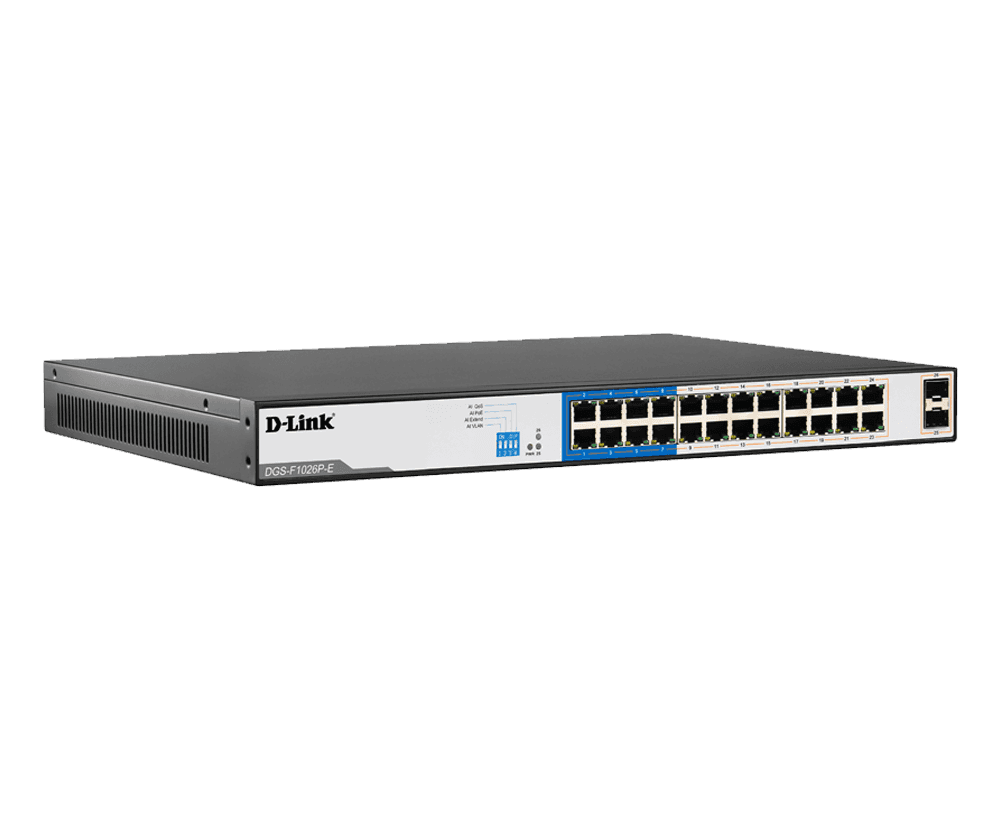

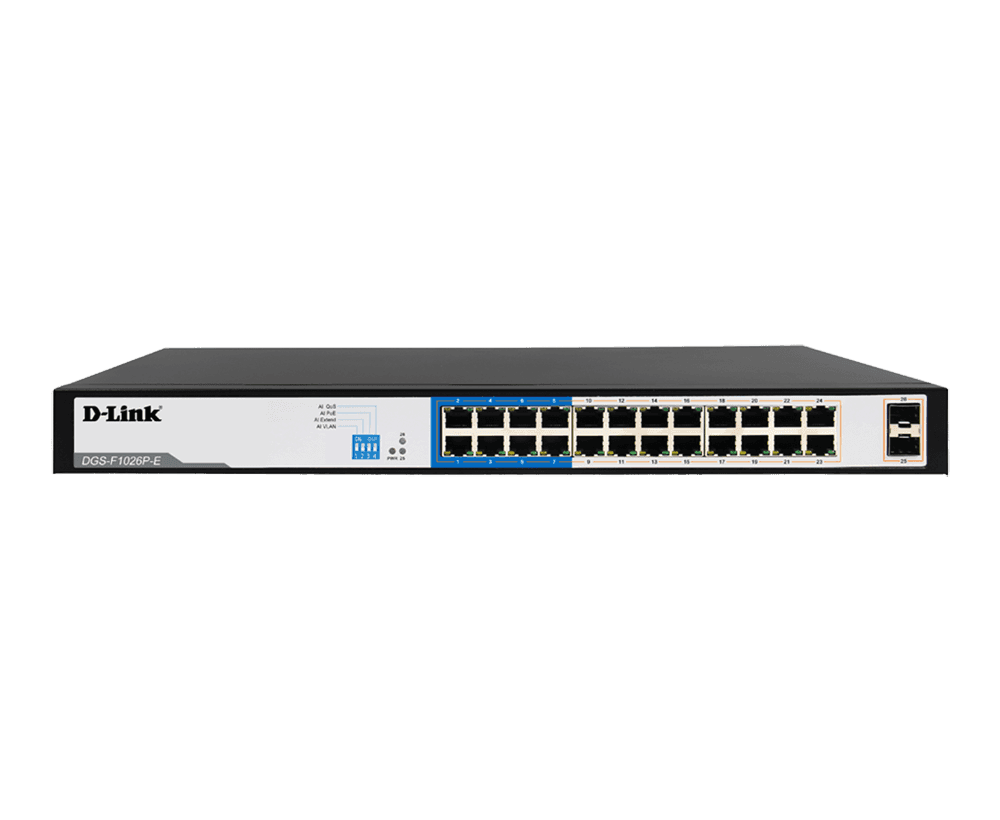

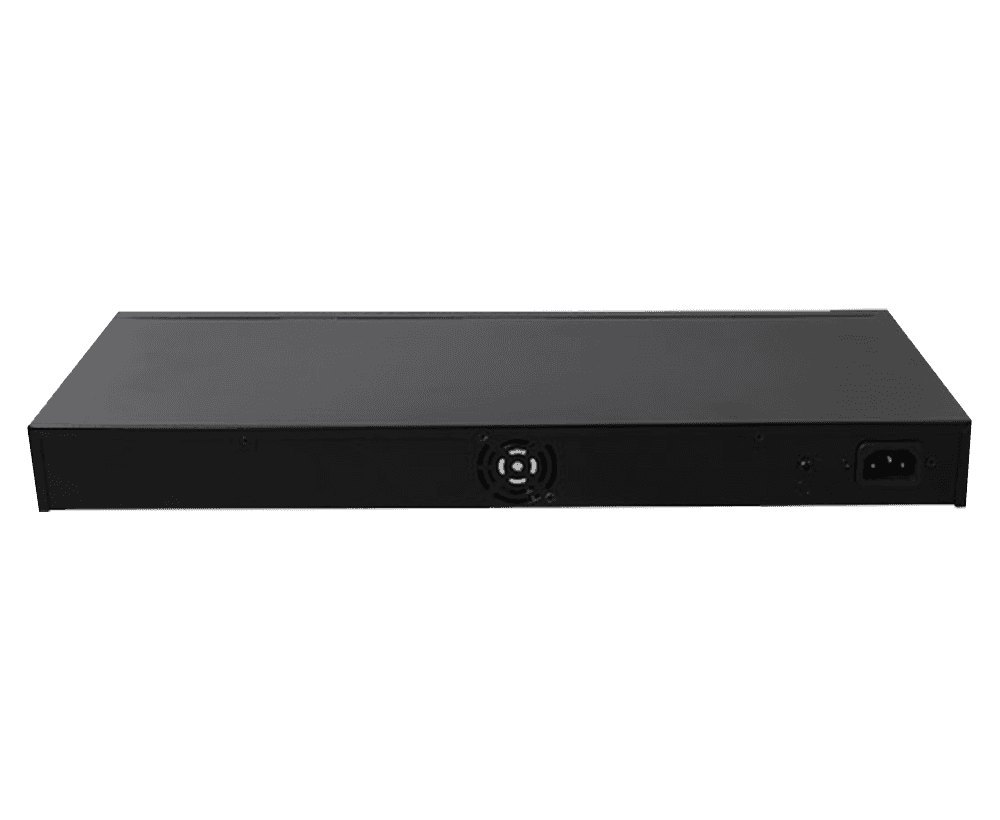

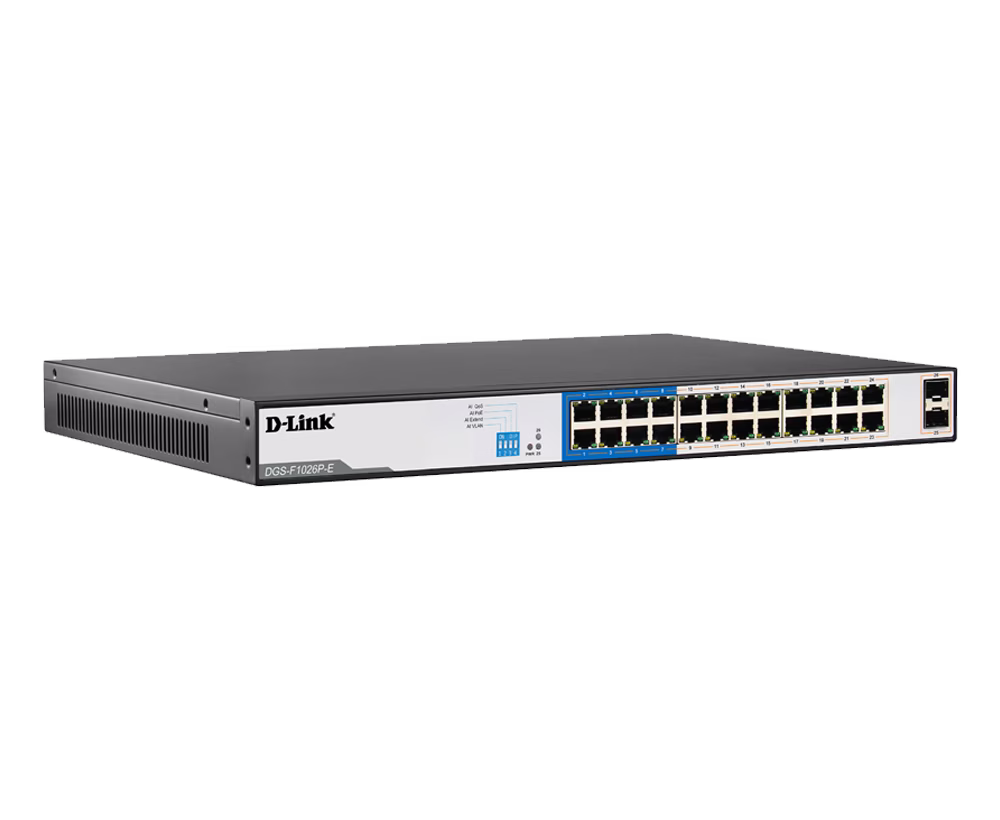

D-Link DGS-F1026P-E 24GE PoE + 2 SFP Ports 250m PoE Switch, 24 10/100/1000 Mbps Gigabit Ethernet Ports
Model :
SKU : NS-DLINK DGS-F1026P-E-
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
High Transmission distance
With high distance connectivity, ideal for surveillance solution. Can be used with cat5e or cat6 cable. The DGS-F1026P-E features 24 ports 10/100BASE-TX ports that support the IEEE 802.3af/at PoE protocol. With total power budget of 250W.
Plug & Play Installation
The DGS-F1026P-E is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.
Different Switch working mode
The DGS-F1026P-E switch works in 4 operating modes using DIP switch
- Extend – 1-8 ports support up to 250m distance power supply
- VLAN-Isolating ports 1-24 from each other can effectively suppress network storms and improve network performance
- QoS-Prioritize the identified video data to make video transmission smoother
- PoE-Automatic detection power of port, power off and restart
Specification
| Size | Desktop (with Mounting Kit) |
| Network Interface | 24 × 10/100/1000 BASE-T ports, 2 × SFP |
| Standards | IEEE 802.3u (Fast Ethernet standards); IEEE 802.3af/at (Ethernet power supply PoE standard); IEEE 802.3ab (Gigabit Ethernet standards); IEEE 802.3az (EEE, Energy Efficient Ethernet standard); IEEE 802.3x (Full-duplex Ethernet data link layers); IEEE 802.3z (Gigabit Ethernet fiber-optic standard) |
| Media Interface Exchange | Auto MDI/MDI-X adjustment on all ports |
| Lightning Protection | 6 KV |
| Switching Fabric | 52 Gbps |
| Transmission Method | Store-and-forward |
| Data Transfer Rates | Gigabit Ethernet – 1000 Mbps, Ethernet – 100 Mbps |
| Physical Specifications | Dimensions (L × W × H): 440 × 180 × 44 mm; Weight: 3.0 kg |
| PoE Power Budget | 250 W (30 W max. per PoE port) |
| Power | Total Power: 250 W |
| Humidity | Operating: 0% to 95% RH (non-condensing); Storage: 0% to 95% RH (non-condensing) |
