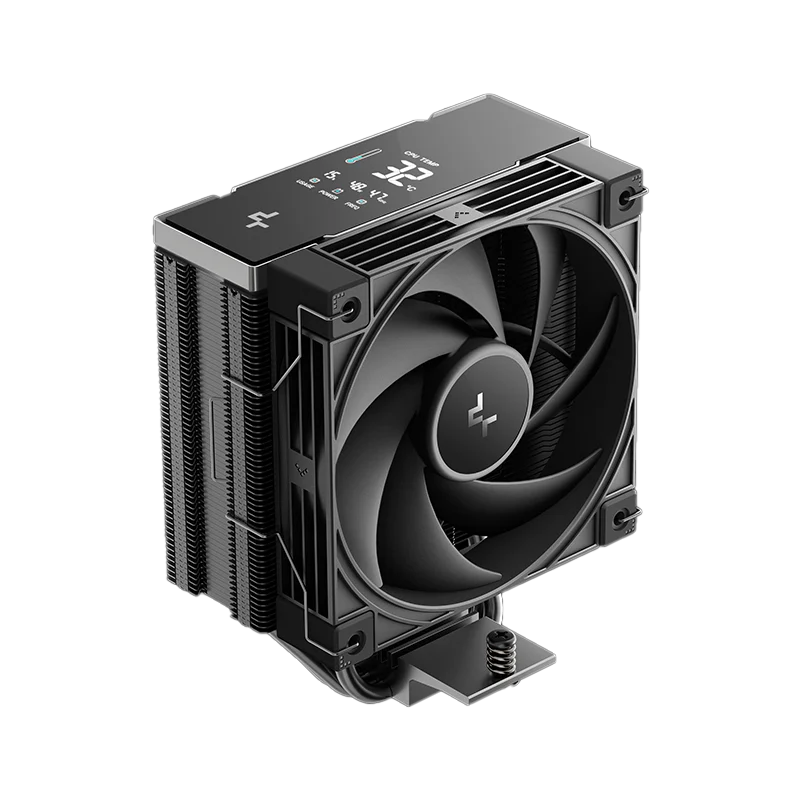

DeepCool AK400 G2 DIGITAL NYX CPU Air Cooler, Single Tower, 4 Heat Pipes, Real-Time Temp Display, 63.4 CFM Fan | R-AK400G2-BKNNMN-GJD-1
Model : G2 DIGITAL NYX CPU Air Cooler
SKU : COOLE DEEP AK400 G2 D NYX
The DeepCool AK400 G2 DIGITAL NYX represents the second generation of the AK DIGITAL lineup, offering enhanced performance and a distinctive digital aesthetic in a highly compatible single-tower design. It features four advanced copper heat pipes (Ø6 mm) and a newly designed high-performance fan that reaches 2200 RPM. The cooler's standout feature is the high-end, quad-segmented digital display that provides real-time CPU temperature and utilization insight via the DeepCreative software. Delivering a high airflow of 63.4 CFM while maintaining a low maximum noise level of ≤31.45 dB(A), the AK400 G2 DIGITAL NYX is an excellent choice for mainstream and mid-range processors.
Description
Intelligent Cooling for Mainstream Builds: DeepCool AK400 G2 DIGITAL NYX
The DeepCool AK400 G2 DIGITAL NYX brings next-generation features and solid cooling performance to a highly versatile single-tower form factor. Its optimized design provides high thermal dissipation while maintaining excellent RAM compatibility.
Advanced Cooling Performance:
- Proven AK Design: Continues the legacy of the reliable AK series, featuring a streamlined single-tower heatsink with the signature matrix fin array design for efficient heat transfer.
- Core Touch Technology (CTT 2.0): Features a refined copper base and four direct-touch copper heat pipes that deliver improved heat transfer capabilities directly from the CPU core.
High Static Pressure Fan: Equipped with a new 120 mm fan with a Hydro Bearing, reaching speeds up to 2200 RPM and generating high static pressure (3.33 mmAq) and strong airflow (63.4 CFM), ensuring effective heat removal.
Real-Time Digital Monitoring:
- Quad-Segmented Digital Display: The high-end digital module (29x39 mm display area) allows you to monitor critical system metrics like CPU temperature and utilization in real-time.
- AI Dynamic Adjustment: Powered by DeepCreative software, the system intelligently adapts fan speeds based on CPU load and temperature, balancing cooling power and acoustic performance (e.g., fans shift to full speed if the CPU hits 80°C).
Easy Setup: The digital display only requires an open USB 2.0 header for operation.
Compatibility and Aesthetics:
- Premium Compatibility: The single-tower design maintains a compact footprint (132 x 92 x 156 mm), ensuring excellent clearance for tall RAM modules and compatibility with a wide range of PC cases.
- Quiet Operation: Maximum fan noise is controlled at ≤31.45 dB(A), suitable for quiet computing environments.
- Multi-Platform Support: Includes durable mounting hardware for an easy installation process on mainstream Intel and AMD platforms (LGA 1851/1700/1200/115X, AM5/AM4).
Specification
| Product Dimensions | 132 × 92 × 156 mm (L × W × H) |
| Heatsink Dimensions | 130 × 92 × 151 mm (L × W × H) |
| Net Weight | 958 g |
| Heatpipe | Ø6 mm × 4 pcs |
| Fan Dimensions | 120 × 120 × 25 mm (L × W × H) |
| Fan Speed | 2200 ±10% RPM (Max) |
| Fan Airflow | 63.4 CFM |
| Fan Air Pressure | 3.33 mmAq |
| Fan Noise | ≤ 31.45 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.25 A |
| Fan Power Consumption | 3 W |
| Display Module Rated Current | 0.13 A ±10% |
| Display Module Rated Voltage | 5 VDC |
| Display Module Power Consumption | 0.65 W |
| Display Area | 29 × 39 mm |
| EAN | 6933412729679 |
| P/N | R-AK400G2-BKNNMN-GJD-1 |
