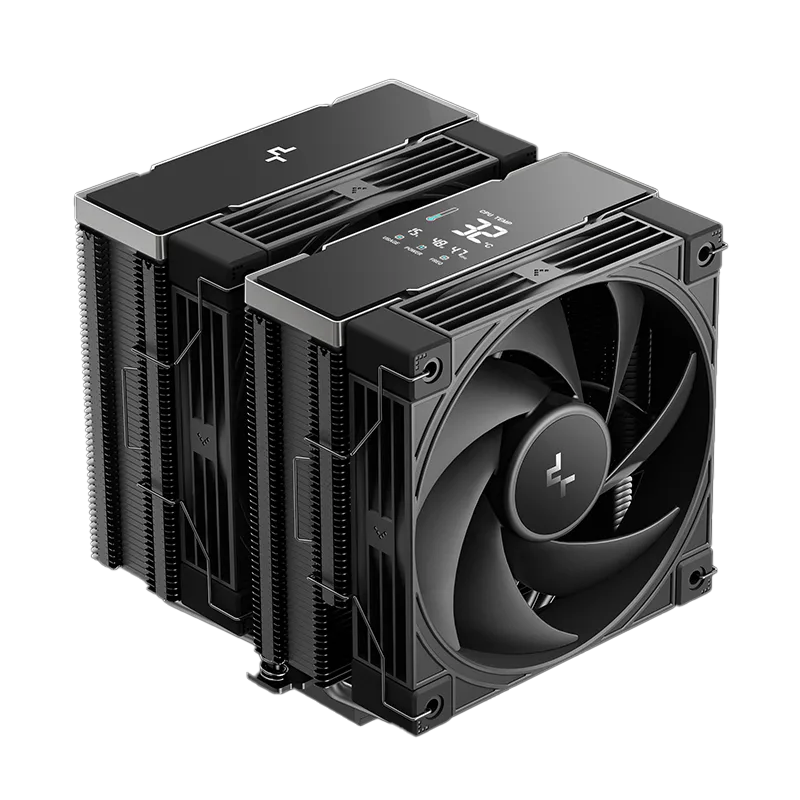

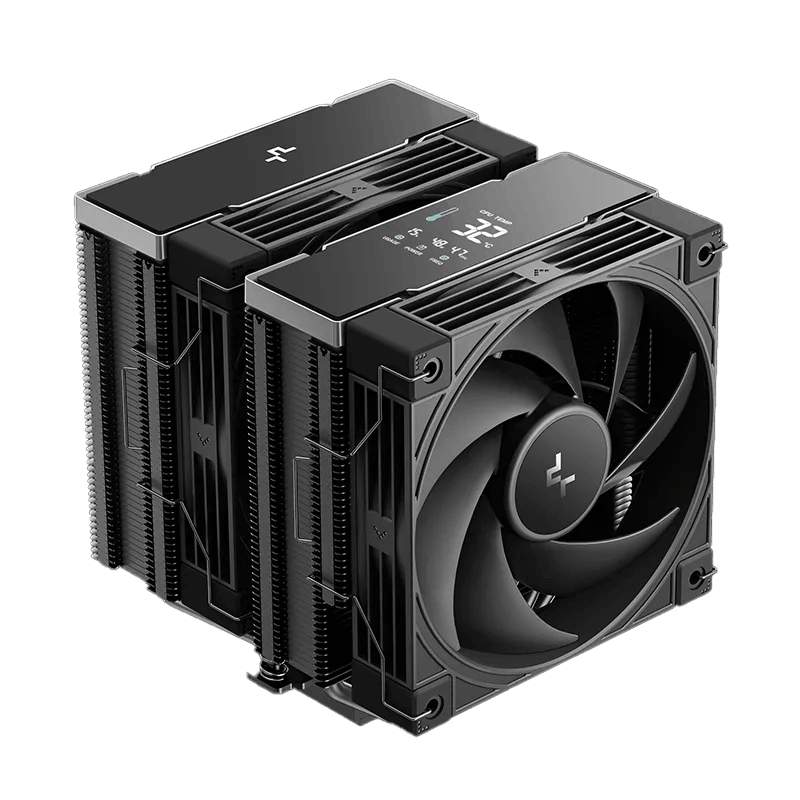

DeepCool AK620 G2 DIGITAL NYX CPU Air Cooler, Dual Tower, 6 Heat Pipes, 260W TDP, Real-Time Temp Display, 159mm Height | R-AK620G2-BKNNMN-GJD-1
Model : G2 DIGITAL NYX CPU Air Cooler
SKU : COOLE DEEP AK620 G2 DIG B
The DeepCool AK620 G2 DIGITAL NYX is the second generation of the iconic AK DIGITAL cooler, engineered for elite performance with a bold new aesthetic. It features a dense dual-tower heatsink linked by six advanced copper heat pipes (Ø6 mm) and newly designed silent fans that reach 2000 RPM. This cooler handles thermal loads up to 260W TDP. The main upgrade is the high-end, quad-segmented digital display that provides real-time CPU temperature and utilization insight. Delivering a maximum airflow of 57.76 CFM at a whisper-quiet noise level of ≤28.87 dB(A), the AK620 G2 DIGITAL NYX ensures exceptional cooling with style.
Description
Upgraded Performance and Thermal Design:
Dual-Tower Heatsink: Features a dense fin array across two towers, maximizing the surface area available for heat dissipation.

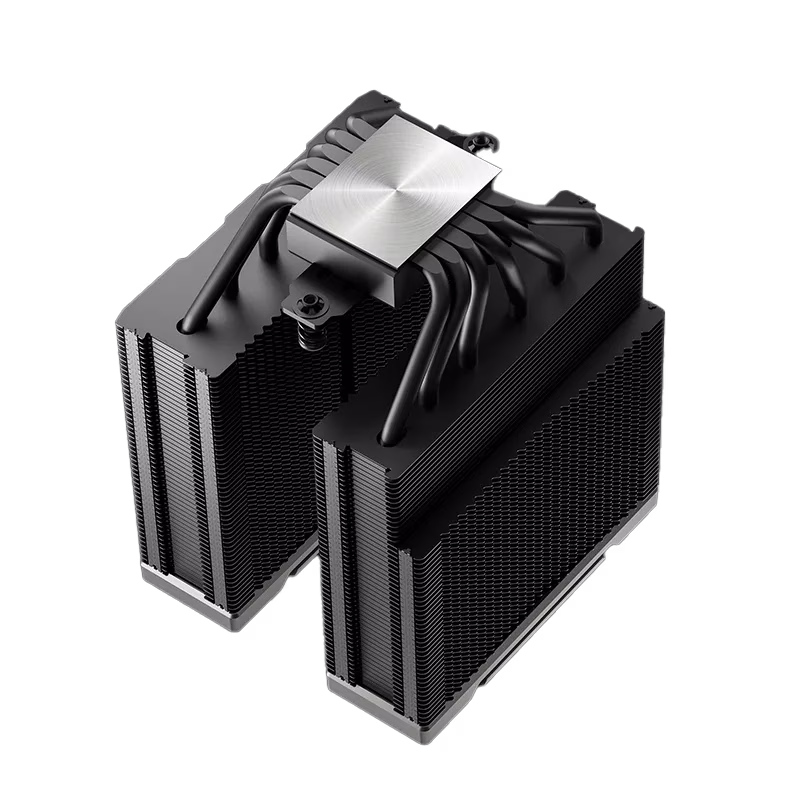

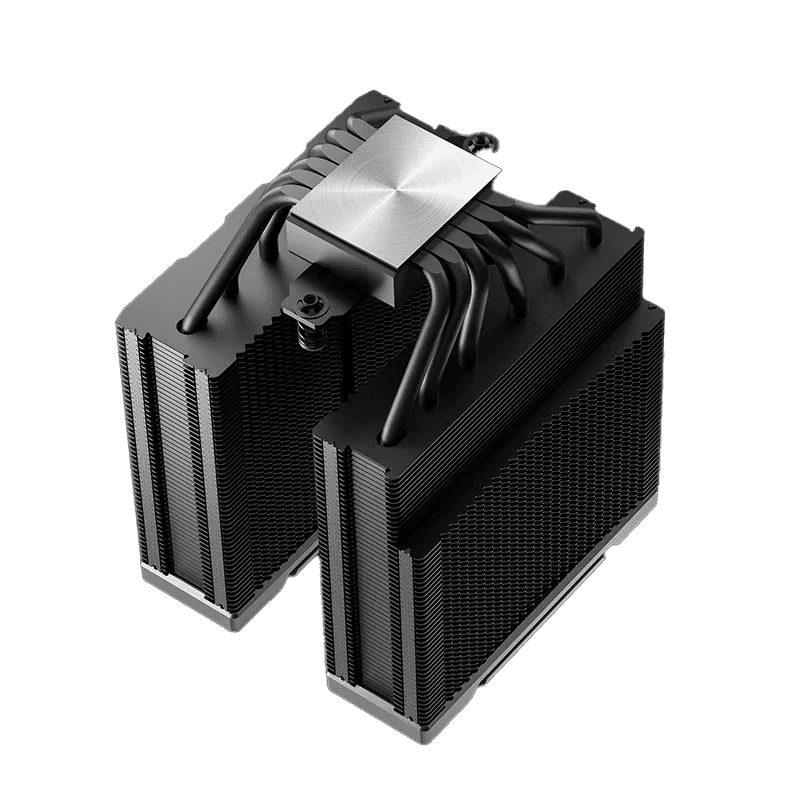

Six Copper Heat Pipes: Six high-efficiency, Ø6 mm copper heat pipes directly pull thermal energy away from the CPU core for rapid transfer across the heatsink.
- Exceptional Cooling Power: Rated for high performance, efficiently managing thermal loads up to 260W TDP, making it suitable for top-tier Intel and AMD processors.
New Digital Monitoring and Aesthetic:
- High-End Digital Display: Sports a new quad-segmented digital display area (29x39 mm) that provides instant, real-time monitoring of CPU temperature and utilization, giving you complete insight into your system's performance.
Bold NYX Aesthetic: Features an upgraded, modern black aesthetic that integrates seamlessly into any high-end PC build.
Optimized Acoustics and Airflow:

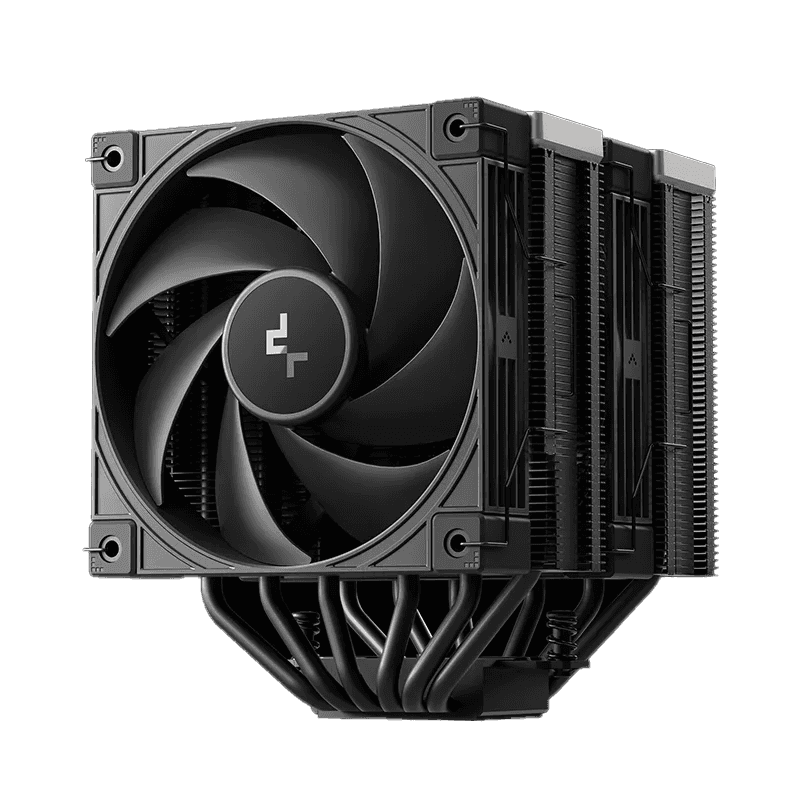

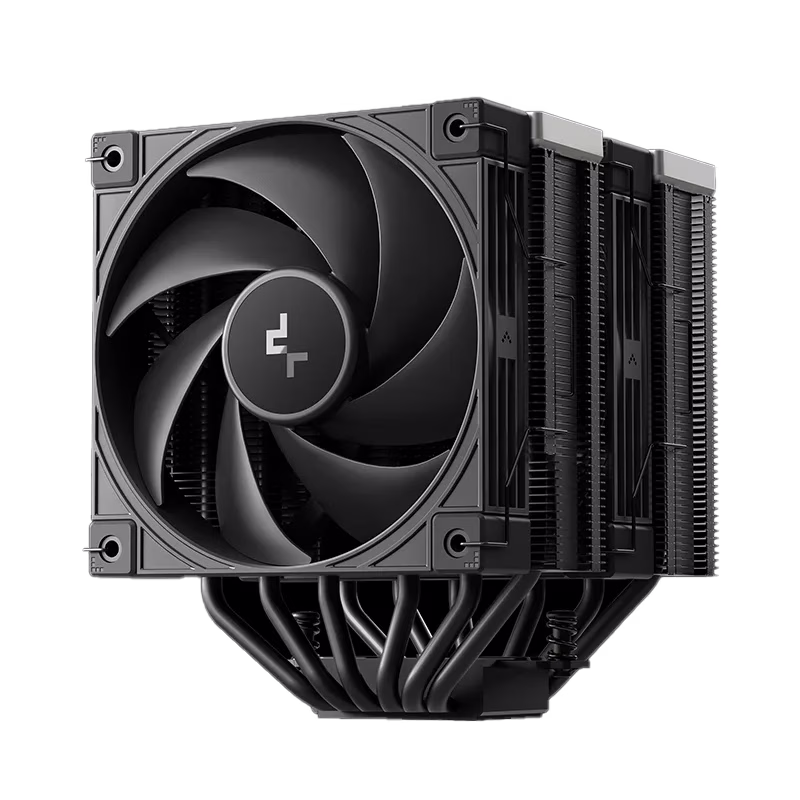

- Newly Designed Silent Fans: Equipped with two 120 mm Hydro Bearing fans designed for high static pressure and low noise.
- Excellent Airflow and Pressure: Achieves up to 57.76 CFM of airflow and high static pressure of 2.78 mmAq, ensuring heat is pushed efficiently through the dense fin stacks.
Quiet Operation: Maximum fan noise is kept low at just ≤28.87 dB(A), offering a balance between performance and acoustics.
Compatibility and Dimensions:
- Standard Compatibility: The overall height of 159 mm ensures compatibility with many popular mid-tower PC cases.
- 4-pin PWM Control: Fans connect via 4-pin PWM for precise speed control and optimal noise/performance balance.
Specification
| Product Dimensions | 127 × 144 × 159 mm (L × W × H) |
| Heatsink Dimensions | 125 × 115 × 153 mm (L × W × H) |
| Net Weight | 1386 g |
| Heatpipe | Ø6 mm × 6 pcs |
| Fan Dimensions | 120 × 120 × 25 mm (L × W × H) |
| Fan Speed | 2000 ±10% RPM (Max) |
| Fan Airflow | 57.76 CFM |
| Fan Air Pressure | 2.78 mmAq |
| Fan Noise | ≤ 28.87 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.19 A |
| Fan Power Consumption | 2.28 W |
| Display Module Rated Current | 0.13 A ±10% |
| Display Module Rated Voltage | 5 VDC |
| Display Module Power Consumption | 0.65 W |
| Display Area | 29 × 39 mm |
| EAN | 6933412729716 |
| P/N | R-AK620G2-BKNNMN-GJD-1 |
