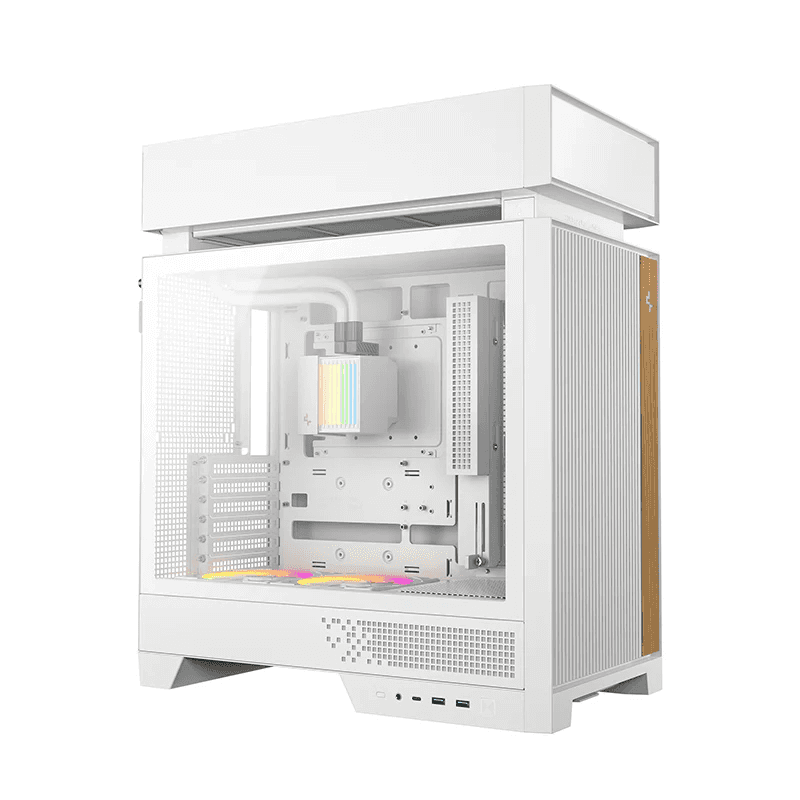

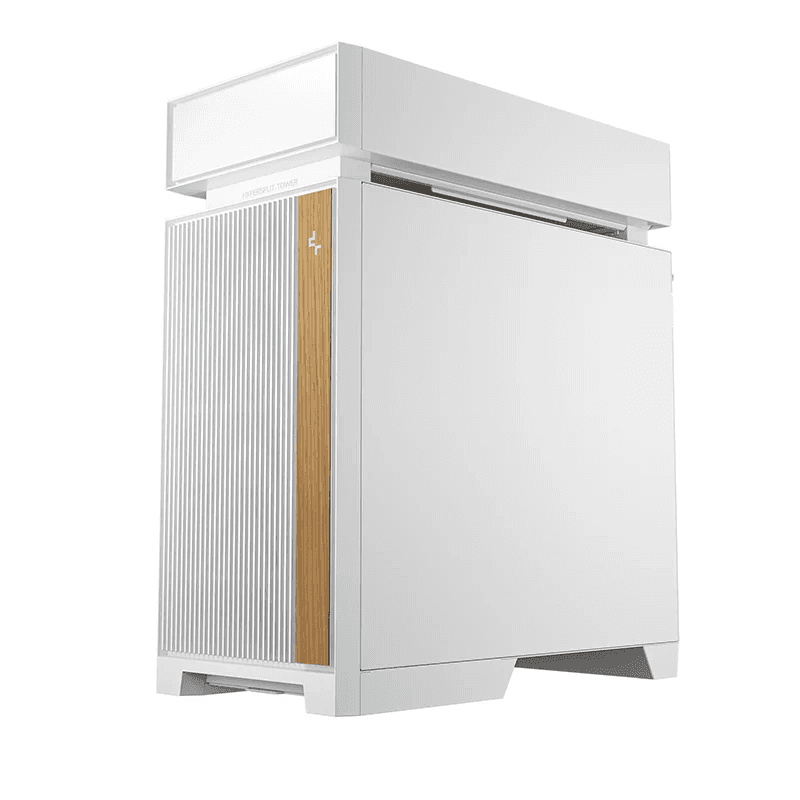

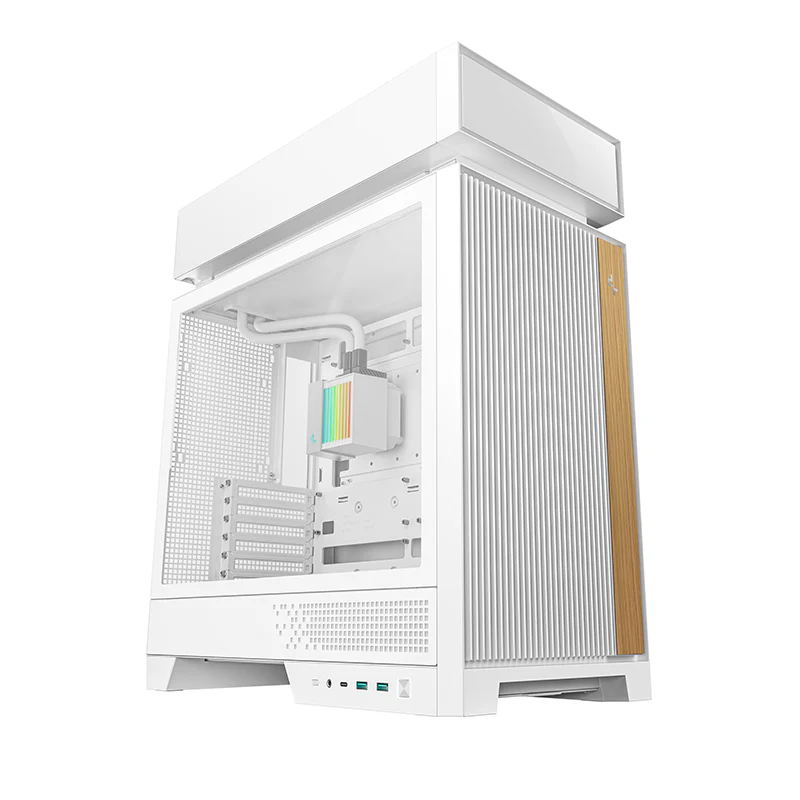

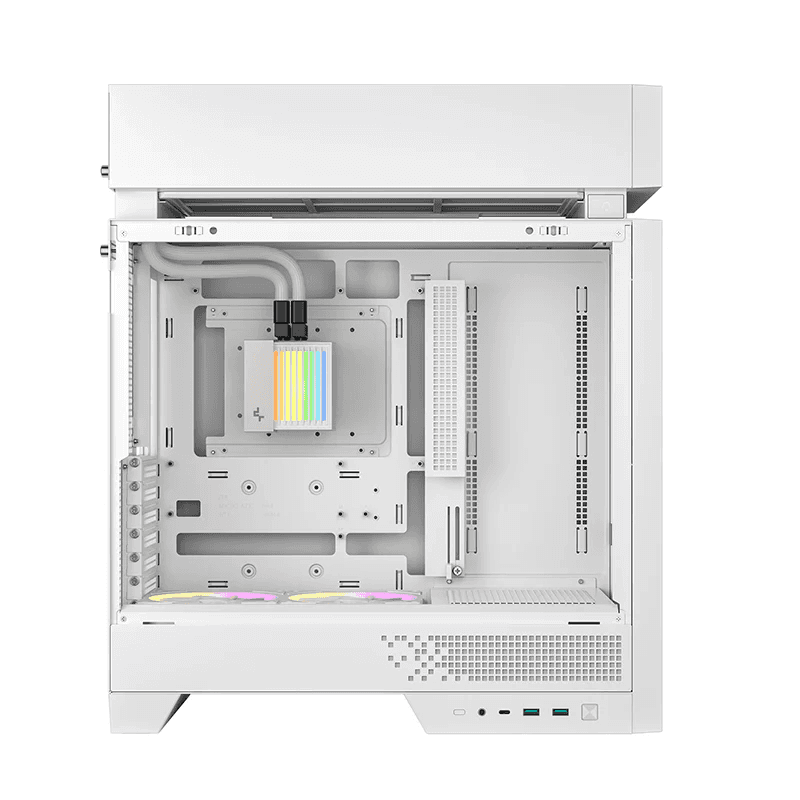

DeepCool CL6600 White ATX PC Case, HyperSplit Dual-Chamber Design, Pre-Installed 360mm ARGB AIO Liquid Cooler, Dual Bottom ARGB Fans, Supports Back-Connector Motherboard | R-CL6600-WHNNA0-G
Model : CL6600
SKU : ATX-DEEPCOOL CL6600 WHITE
BLACK
not in stock
The DeepCool CL6600 White redefines compact ATX case design with its innovative HyperSplit compartmentalized internal layout, which physically separates thermal zones to prevent heat buildup, notably placing the pre-installed 360mm ARGB Liquid Cooler in its own dedicated chamber on top. This case comes ready for strong performance with two pre-installed 120mm ARGB reverse-blade fans at the bottom to drive cool air directly to the GPU. With support for standard and back-connector ATX motherboards, a front USB Gen2 Type-C port, and tool-free panel removal, the CL6600 combines intelligent thermal management with a clean, modern aesthetic.
Description
HyperSplit Cooling Revolution: DeepCool CL6600 White PC Case
The DeepCool CL6600 is an innovative ATX case designed specifically for the liquid-cooling era. Its dual-chamber architecture, referred to as HyperSplit, addresses thermal cross-interference common in traditional layouts, ensuring maximum cooling efficiency for all components.
Innovative HyperSplit Thermal Design:
- Dedicated Radiator Chamber: The standout feature is the raised, dedicated top chamber that houses the pre-installed 360mm ARGB Liquid Cooler. This strategic separation ensures the radiator draws and exhausts heat without competing with the main chamber's internal ambient temperature.
Optimized Airflow: The distinct thermal zones create separate, clear airflow paths, strengthening overall heat management for both the CPU and GPU.
Front-Mounted PSU: The power supply is mounted at the front of the case and exhausts through a dedicated vent, further preventing its heat from interfering with the main component chamber. An extension cable is included for rear power access.
Pre-Installed High-Performance Cooling:
- 360mm ARGB Liquid Cooler: An advanced AIO liquid cooler is pre-installed on the top, featuring an adjustable pump and triple high-performance FDB fans for steady, quiet cooling.
Dual Bottom ARGB Fans: Two 120mm ARGB Reverse-Blade fans are pre-installed on a pull-out bracket at the bottom, delivering a strong stream of fresh air directly to the GPU.
Builder-Friendly Features:
- Extensive Component Support: The case supports Mini-ITX, Micro-ATX, and standard ATX motherboards, including those with rear-connector designs.
- High-End Component Clearance: Supports GPUs up to 413 mm in length (388 mm with a front fan) and CPU air coolers up to 175 mm in height.
- Modern I/O: The front panel includes two USB 3.0 ports, one Gen2 Type-C port, and an Audio/Mic jack.
- Refined Aesthetics: Features a full-height grille front panel for maximized airflow, a clean white finish, Tempered Glass side panels, and a tasteful real-wood accent.
- Convenience: Incorporates a pop-out headset hook and tool-free removal for all exterior panels and pull-out dust filters
Specification
| Product Dimensions | 457.5 × 235 × 533.5 mm (L × W × H) |
| Net Weight | 11.82 kg |
| Materials | ABS + SPCC + Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX ATX (Rear Connector) / Micro-ATX (Rear Connector) |
| Front I/O Ports | USB 3.0 × 2, Gen2 Type-C × 1, Audio / Mic × 1 |
| 3.5" Drive Bays | 2 + 1 |
| 2.5" Drive Bays | 1 + 1 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Bottom: 2 × 120 mm ARGB (Reverse Blade) |
| Fan Support | Top: 3 × 120 mm / 2 × 140 mm Front: 2 × 140 mm Rear: 1 × 140 mm / 1 × 120 mm Bottom: 2 × 120 mm |
| Radiator Support | Top: Pre-installed 360 mm Front: N/A Rear: 120 mm |
| CPU Cooler Height Limit | 175 mm |
| GPU Size Limit | 413 mm / 388 mm (With Front Fan) |
| Power Supply Type | ATX PS2 (Maximum length: 160 mm) / SFX / SFX-L |
| EAN | 6933412765301 |
| P/N | R-CL6600-WHNNA0-G |
