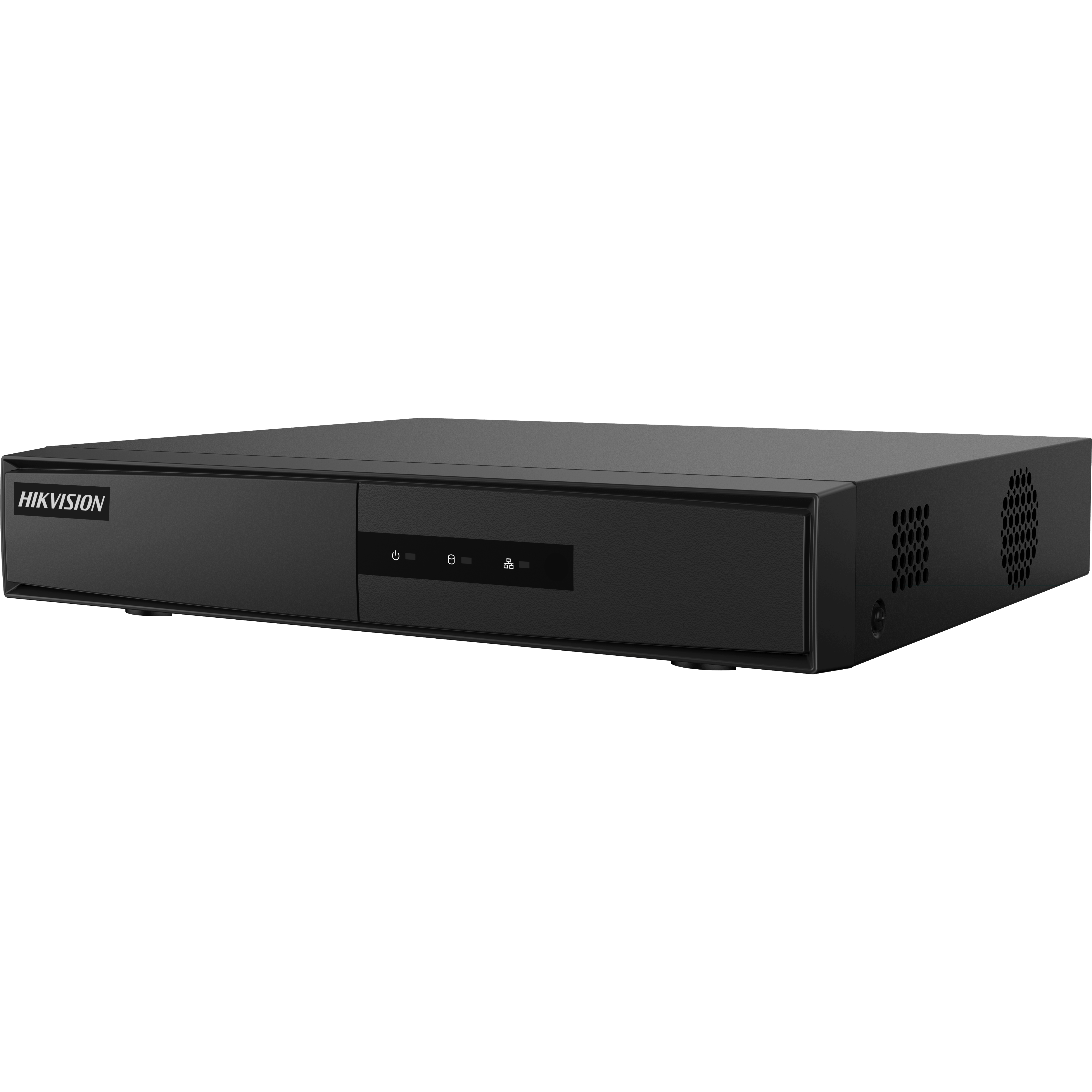

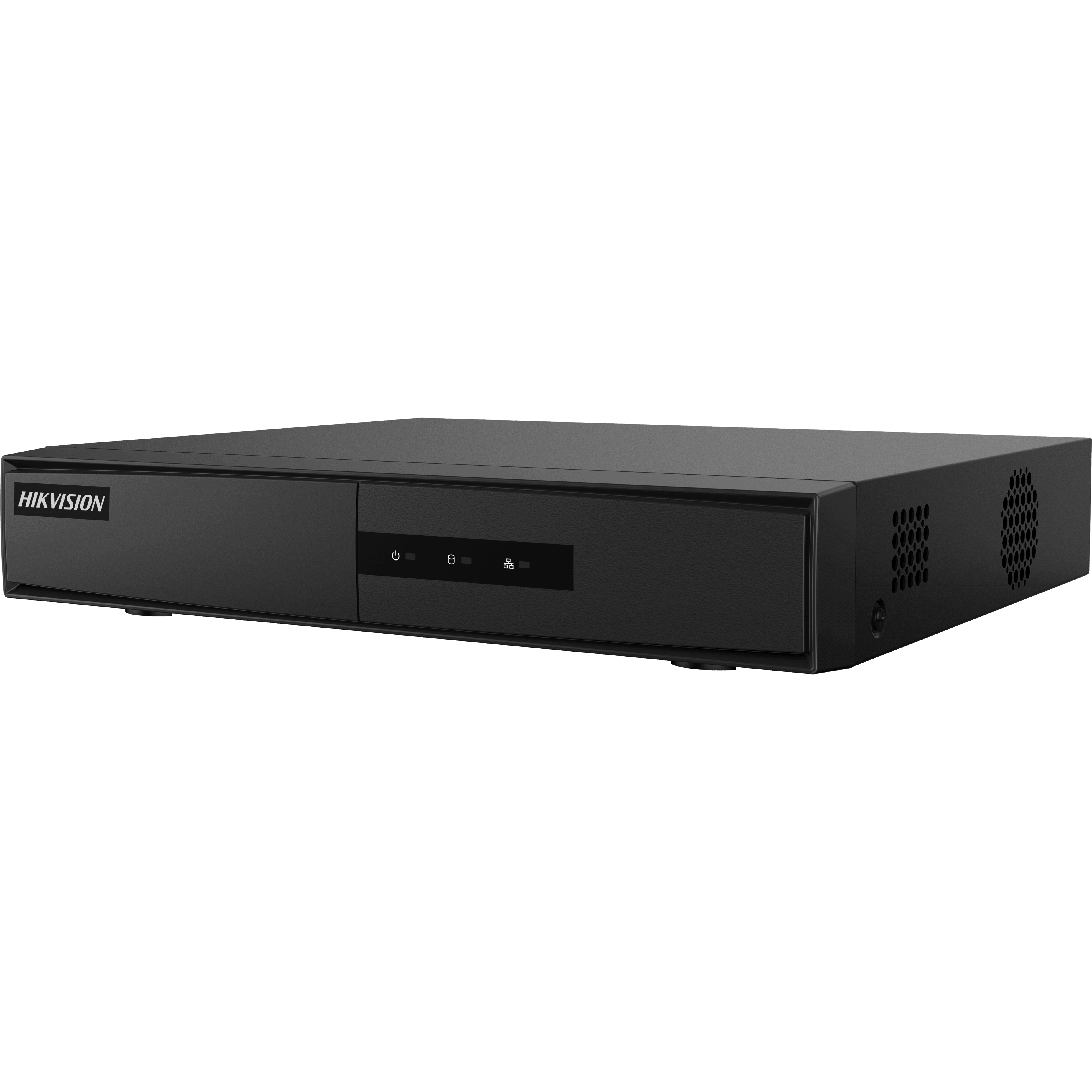

DS-7104NI-Q1/4P/M 4-ch Mini 1U 4 PoE NVR, Up to 4-ch network Camera Inputs, (1080P 2MP Camera)

Free Delivery

View Shipping Policy

Safe Payment

View Payment Options

24/7 Help Center

Hassle-Free Returns

Return Policy Details

Friendly Services

About Us

Adarc Computer established in the year 2007, has emerged as a major constituent of the IT Re-distribution industry in every part of UAE. Currently, Adarc Computer is the authorized dealer of global leading brands.

Customer Service	Quick Links
Contact Us	My Account
Warranty & Repairs Policy	Cart
Shipping Policy	Wishlist
Online Returns Policy	View All Categories
Payment Terms

Connect us:

🇦🇪 +97126763999

Abu Dhabi - Hamdan Bin

Terms And Conditions

DS-7104NI-Q1/4P/M 4-ch Mini 1U 4 PoE NVR, Up to 4-ch network Camera Inputs, (1080P 2MP Camera)

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Video and Audio

IP Video Input	4-ch Up to 6 MP resolution
Incoming Bandwidth	40 Mbps
Outgoing Bandwidth	60 Mbps
HDMI Output	1-ch 1920 × 1080p/60Hz 1600 × 1200/60Hz 1280 × 1024/60Hz 1280 × 720/60Hz
VGA Output	1-ch 1920 × 1080p/60Hz 1600 × 1200/60Hz 1280 × 1024/60Hz 1280 × 720/60Hz
Video Output Mode	HDMI/VGA simultaneous output

Decoding

Decoding Format	H.265+/H.265/H.264+/H.264
Recording Resolution	6 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback	4-ch
Decoding Capability	4-ch @ 1080p (30 fps) or 2-ch @ 4 MP (30 fps) or 1-ch @ 6 MP (30 fps)
Stream Type	Video, Video & Audio

Network

Remote Connection	16
Network Protocol	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™
Network Interface	1 × RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE

Interface	4 × RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power	≤ 36 W
Standard	IEEE 802.3 af/at

Auxiliary Interface

SATA	1 SATA interface
Capacity	Up to 6 TB capacity for each disk
Alarm In/Out	N/A
USB Interface	Rear panel: 2 × USB 2.0

General

Power Supply	48 VDC, 1 A
Consumption	≤ 10 W
Working Temperature	-10°C to +55°C (14°F to 131°F)
Working Humidity	10% to 90%
Dimensions (W × D × H)	265 × 223 × 48 mm (10.4" × 8.8" × 1.9")
Weight	≤ 1 kg (2.2 lb)
Certification	CE, EN50130-4, EN61000-3-2, EN61000-3-3

Description

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video and Audio

IP Video Input	4-ch Up to 6 MP resolution
Incoming Bandwidth	40 Mbps
Outgoing Bandwidth	60 Mbps
HDMI Output	1-ch 1920 × 1080p/60Hz 1600 × 1200/60Hz 1280 × 1024/60Hz 1280 × 720/60Hz
VGA Output	1-ch 1920 × 1080p/60Hz 1600 × 1200/60Hz 1280 × 1024/60Hz 1280 × 720/60Hz
Video Output Mode	HDMI/VGA simultaneous output

Decoding

Decoding Format	H.265+/H.265/H.264+/H.264
Recording Resolution	6 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback	4-ch
Decoding Capability	4-ch @ 1080p (30 fps) or 2-ch @ 4 MP (30 fps) or 1-ch @ 6 MP (30 fps)
Stream Type	Video, Video & Audio

Network

Remote Connection	16
Network Protocol	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™
Network Interface	1 × RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE

Interface	4 × RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power	≤ 36 W
Standard	IEEE 802.3 af/at

Auxiliary Interface

SATA	1 SATA interface
Capacity	Up to 6 TB capacity for each disk
Alarm In/Out	N/A
USB Interface	Rear panel: 2 × USB 2.0

General

Power Supply	48 VDC, 1 A
Consumption	≤ 10 W
Working Temperature	-10°C to +55°C (14°F to 131°F)
Working Humidity	10% to 90%
Dimensions (W × D × H)	265 × 223 × 48 mm (10.4" × 8.8" × 1.9")
Weight	≤ 1 kg (2.2 lb)
Certification	CE, EN50130-4, EN61000-3-2, EN61000-3-3
