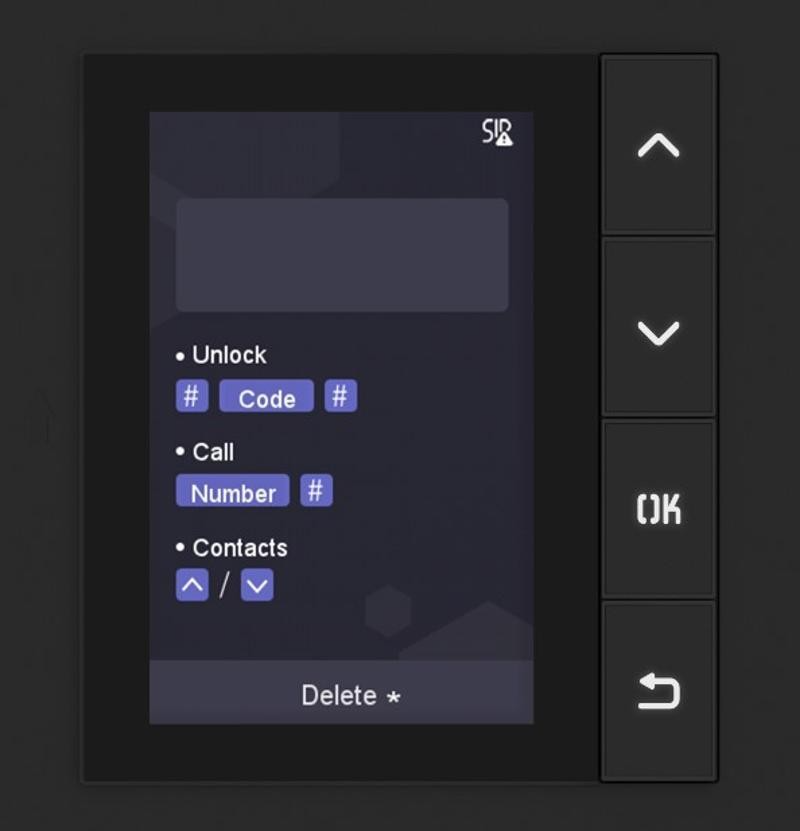

DS-KD-DIS KD8 Series Pro Modular Door Station, Display module of modular door station, 3.5-inch LCD screen with rich information display: Dial number, pin code unlock, contact list, Store up to 2000 contacts, IP65 protection level

DS-KD-DIS KD8 Series Pro Modular Door Station, Display module of modular door station, 3.5-inch LCD screen with rich information display: Dial number, pin code unlock, contact list, Store up to 2000 contacts, IP65 protection level

Operating System	Embedded Linux operation system
ROM	8 MB
RAM	64 MB
CPU	Embedded MCU Processor

Display Parameters

Screen Size	3.5-inch
Operation Method	Physical buttons
Type	TFT LCD screen
Resolution	320 ?? 480p
Brightness	250 cd/m2

Video Parameters

Lens	/
Resolution	/
FOV	/
WDR	/
Supplement Light	/
Video Compression Standard	/

Audio Parameters

Audio Compression Standard	/
Audio Input	/
Audio Output	/
Audio Compression Bitrate	/
Audio Quality	/
Volume Adjustment	/

Network Parameters

Communication Protocol	/
Wired Network	/
Wi-Fi Standard	/
Bluetooth Version	/
3G/4G Standard	/

Device Interfaces

Alarm Input	/
Network Interface	/
TAMPER	/
Exit Button	/
RS-485	1
USB	/
Wiegand	/
TF Card	/
Alarm Output	/
Lock Control	/
Door Contact Input	/

Power Interface

Power Interface

1

Performances

Multi-Factor Authentication

/

General

Button	4 (Up, Down, OK, Back)
Installation	Flush mounting, surface mounting
Indicator	/
Weight	/
Protective Level	IP65
Working Temperature	20?? C to +60?? C (-4?? F to 140?? F)
Working Humidity	10% to 95%
Dimensions	98.5 mm ?? 100 mm ?? 34.2 mm (3.87" ?? 3.95" ?? 1.33")
Battery	/

Application Environment

Outdoor

Power Consumption

Power Consumption

2.5 W
