| General Specifications | |

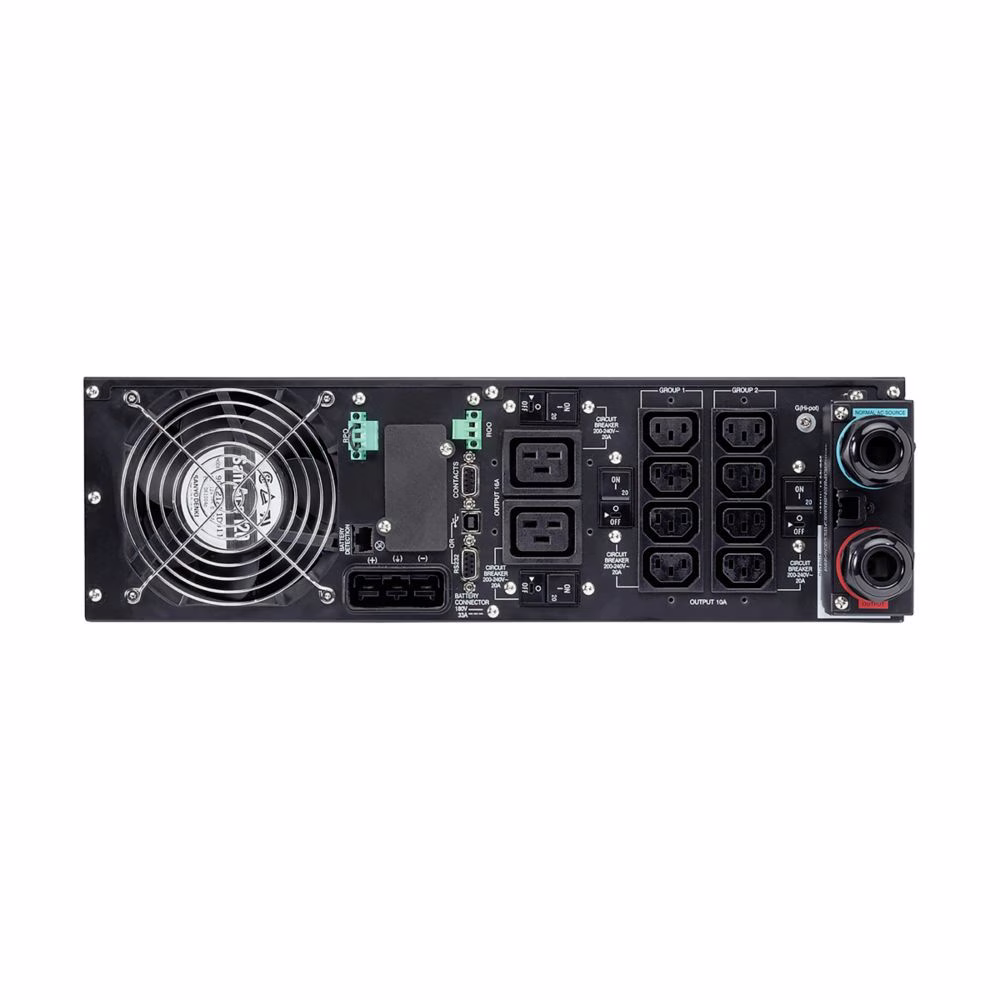

| Product Name | Eaton 9SX UPS |
| Catalog Number | 9SX6KIRT |
| UPC | 743172039354 |
| Product Length/Depth | 68.5 cm |
| Product Height | 13 cm |
| Product Width | 44 cm |
| Product Weight | 48 kg |
| Warranty | 2 years |
| Compliances | CE Marked, TUV, cULus Listed, CSA 22.2 |
| Certifications | IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, cULus Listed, EAC |
| Battery | |
| Battery Type | Sealed, lead-acid |
| Runtime Graph | |
| Battery Replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Battery Quantity | 15 |
| Battery Management | ABM & Temperature compensated charging method (user selectable), Automatic battery test, Deep discharge protection, Automatic recognition of external battery units |
| Battery Rating | 12 V / 5 Ah |
| Extended Battery Capability | Yes |
| Electrical Output | |
| Receptacle | (8) C13, (2) C19, Hardwired |
| Voltage | 230V |
| Wattage | 5400 W |
| Output Power Factor | 0.9 |
| Output Voltage Range | 200/208/220/230/240 V +/- 1% |
| Output Waveform | Sine wave |
| Output Nominal Voltage | 230V default (200/208/220/230/240V) |
| Voltage Distortion Output (Linear Load) - Max | 2 |
| Feed Type | 1 |
| Topology | Online/Double-conversion |
| VA Rating | 6000 VA |
| Electrical Input | |
| Input Connection | Hardwired/fixed connection |
| Input Nominal Voltage | 230V default (200/208/220/230/240/250V) |
| Nominal Frequency | 50/60 Hz |
| Input Power Factor | >.99 |
| Input Voltage Range | 176-276 V (100-276 V with derating) |
| Input Frequency Range | 40-70 Hz |
| Communications | |
| Includes Network Card | No |
| Communication | USB port (HID compliant), Serial port (RS232), Mini terminal block for remote On/Off, Mini-terminal block for remote power off, Dry contacts (4 outputs, relay, DB9) |
| Ethernet Interface | No |
| User Interface | Multilingual graphical LCD display |
| Potential Free Switch Contact | Yes |
| Expansion Slots | One slot for optional communication card |
| Software Compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Type of Interface | Other |
| Environmental | |
| Altitude | 3000 m |
| Noise Level | <45 dB at 1 meter |
| Temperature Range | 0?? to 40??C (32?? to 104??F) |
| Relative Humidity | 0-95% non-condensing |
| Additional Specifications | |
| Construction Type | 482.6 mm (19 inch) device |
| Package Contents | UPS, (2) IEC-IEC output cables, USB cable, Serial cable, (2) Supports for tower mounting, (2) brackets for 19??? mounting, (2) Rack-mounting kit, Cable locking system, Safety instructions, Quickstart guide |
| Phase (Output) | 1 |
| Internal Bypass | Yes |
| Auto Shutdown Function | Yes |
| Color | Black |
| Efficiency | 94 |
| Rack Mounting Kit | Yes |
| Phase (Input) | 1 |
| Hot Swap Power | No |
