Model :
SKU : EZVIZCS-C3WPRO4MP

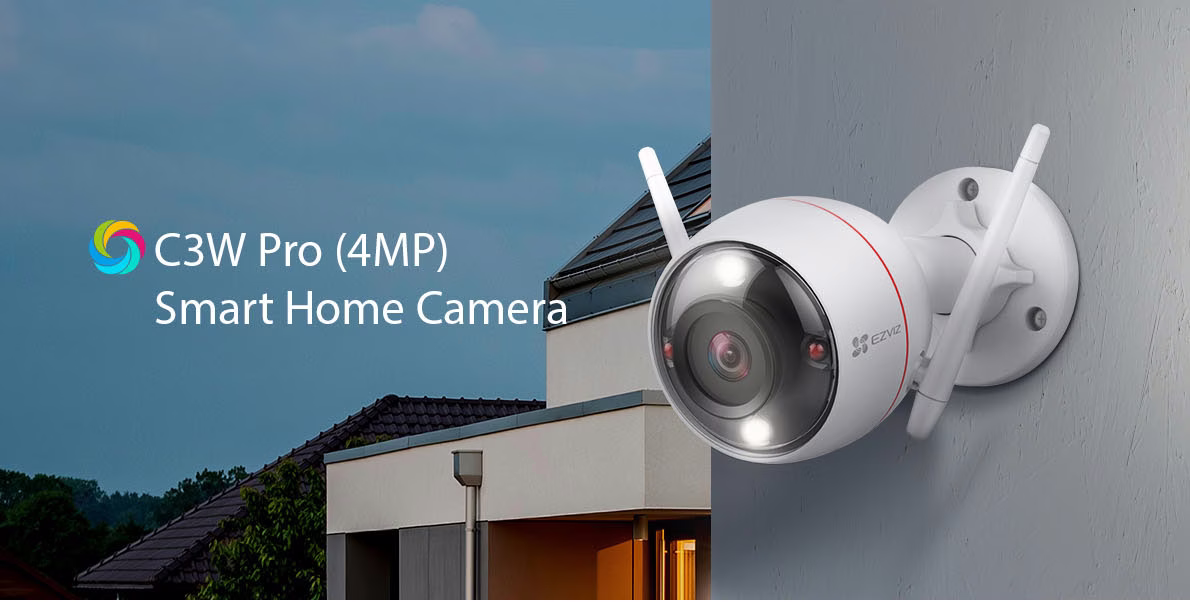

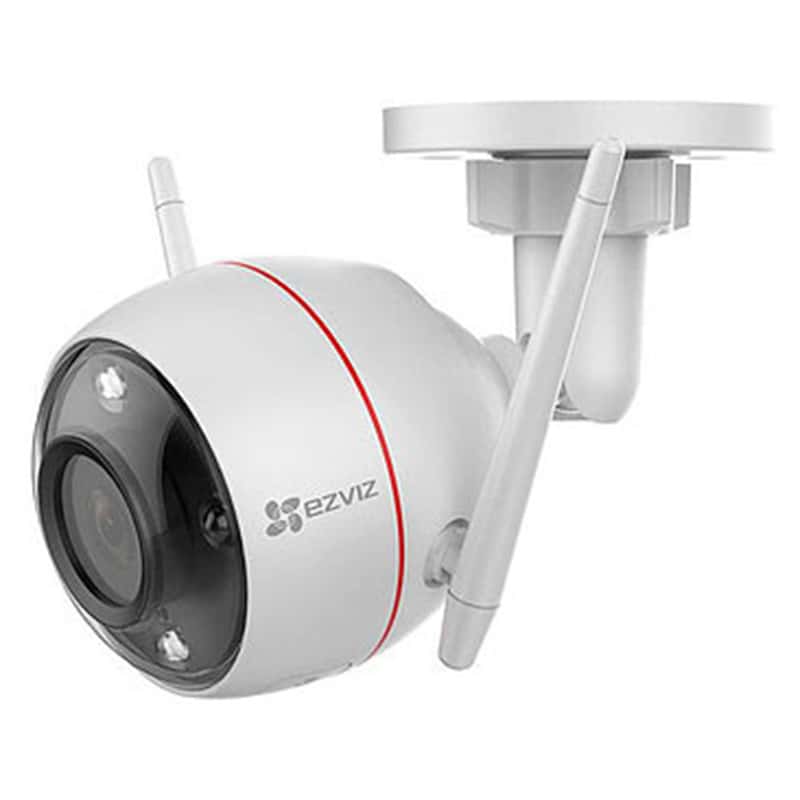

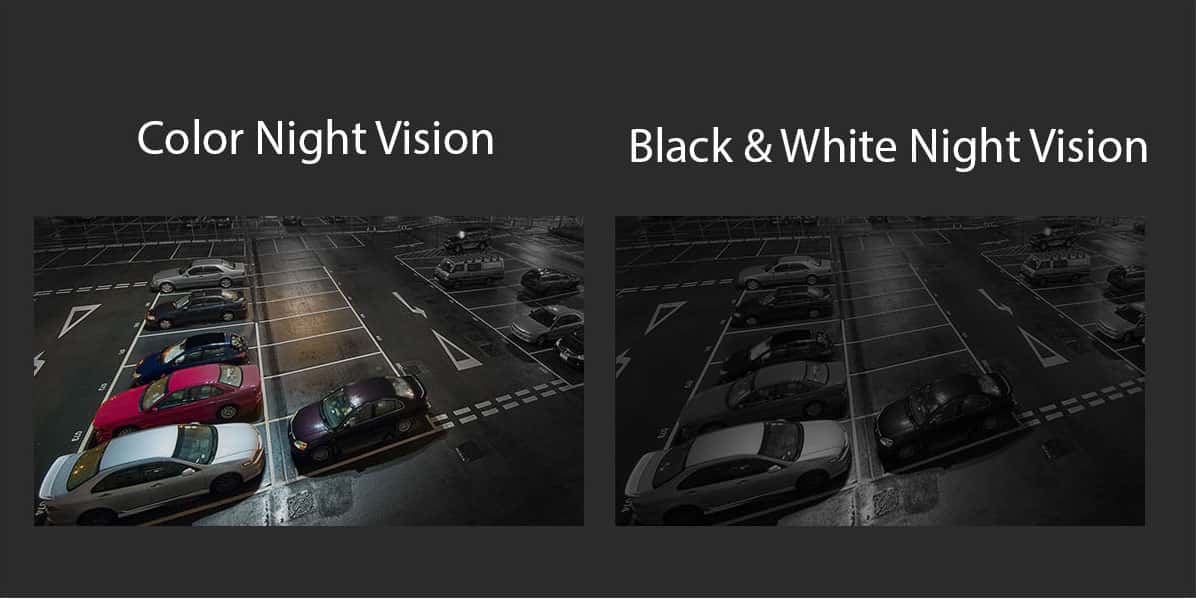

Color night vision camera.
The C3W Pro, the upgraded color night vision camera from EZVIZ, is embedded with an AI algorithm to provide the person detection and more precise alerts even in darkness.??
Specifications
Model CS-C3W-A0-3H4WFRL
Image Sensor 1/2.7 Progressive Scan CMOS
Minimum Illumination 0.01 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed Self-adaptive shutter
Lens 2.8 mm @F1.6, view angle: 100?? horizontal, 121?? diagonal 4 mm @F1.6, view angle: 82?? horizontal, 97?? diagonal
Lens Mount M12
DNR 3D DNR
WDR Digital WDR
Compression
Video Compression H.265 / H.264
Video Bit Rate Quad HD; Full HD; HD; Standard. Adaptive bit rate.
General
Working Temperature -30 ??C to 60 ??C (22 ??F to 140 ??F)
Working Humidity 95% or less (non-condensing)
Power Supply DC 12 V / 1 A
Power Consumption Max. 6 W
IP Grade IP67
Night Vision Distance (Black/White Night Vision Mode) Max. 30 m (98.43 ft.)
Dimensions 72 mm ?? 72 mm ?? 150 mm (2.83??? ?? 2.83??? ?? 5.91???)
Packaging Dimensions 252 mm ?? 110 mm ?? 92 mm (9.92??? ?? 4.33??? ?? 3.62???)
Net Weight 395 g(0.87 lbs)
Network
User Defined Alarm Tones Supports
Wi-Fi Pairing AP Pairing
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Max. Bitrate 2M
Wi-Fi
Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps
Max. Resolution 2560 ?? 1440
Frame Rate Max: 30 fps; Self-adaptive during network transmission
Interface
Storage MicroSD card slot (Max. 256 GB)
Wired Network RJ45 ?? 1(10 M / 100 M Adaptive Ethernet Port)
In the box
In the box C3W Pro (4MP) Color Night Vision Camera ; Power Adapter (1.5 m) ;
Mounting Template ; Screw Kit ; Waterproof Kit ; Quick Start Guide
