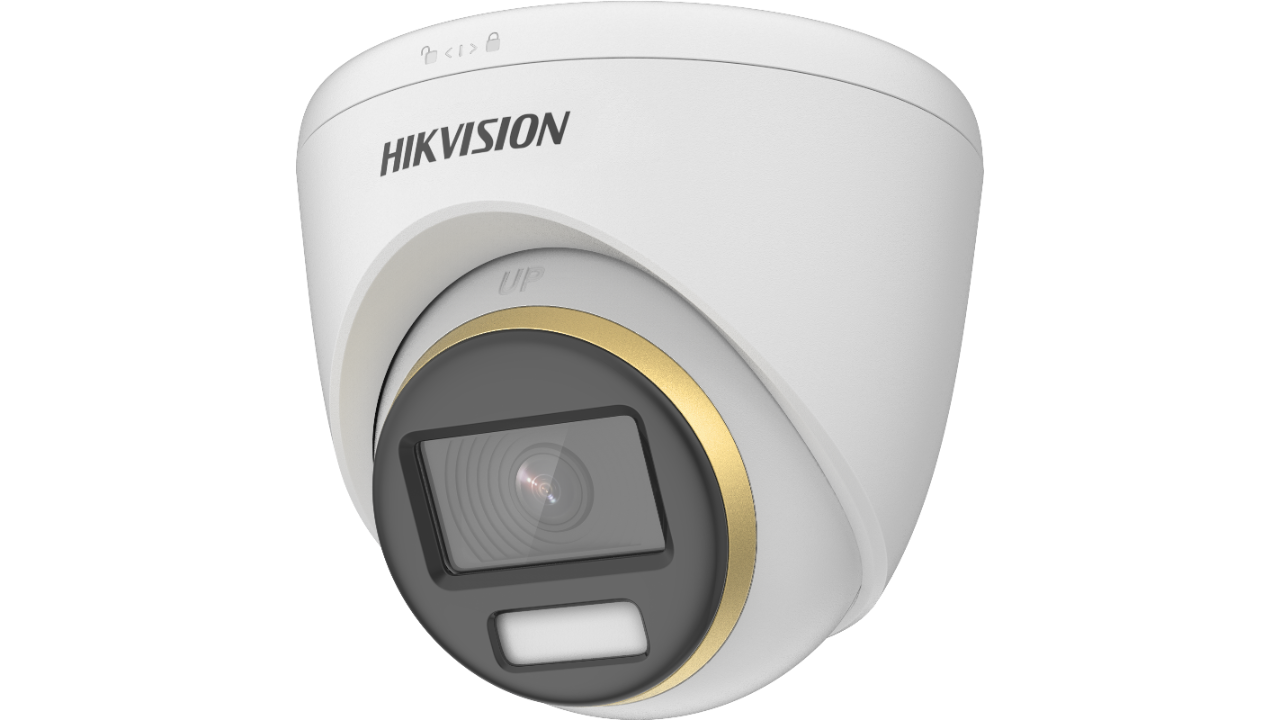

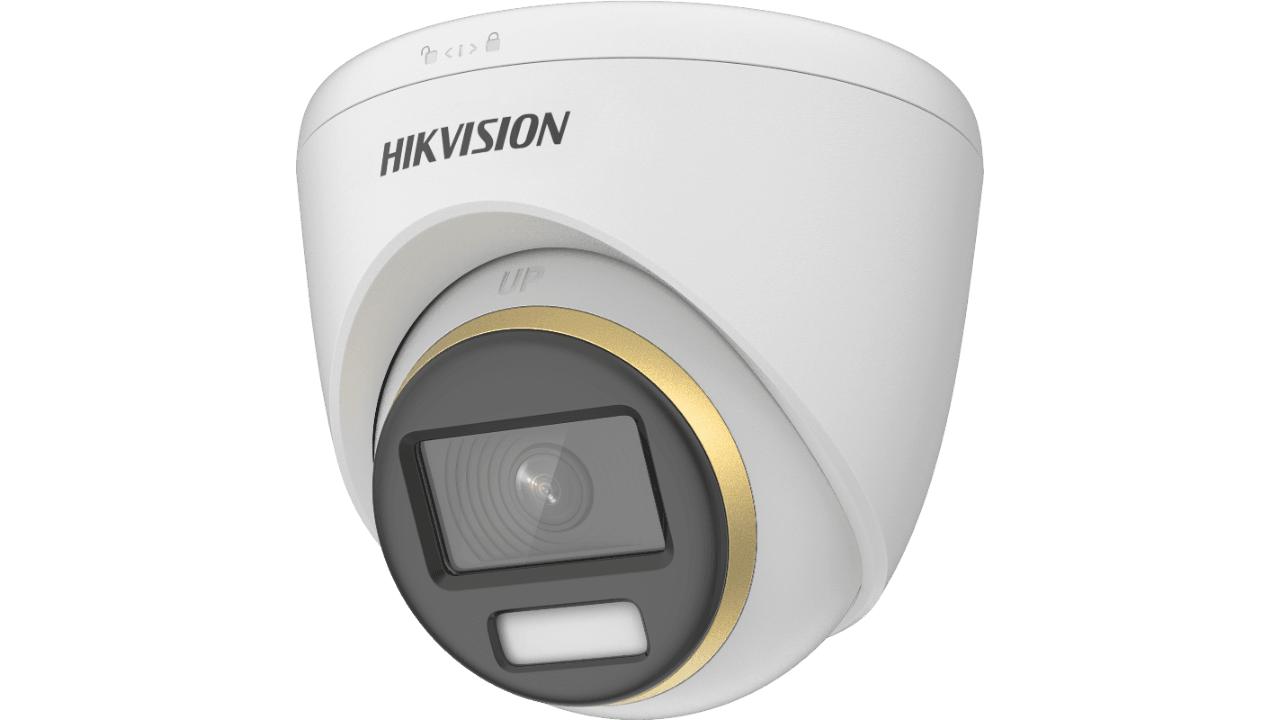

HIKVISION 2 MP ColorVu Fixed Turret Camera High quality imaging with 2 MP, 1920 ?? 1080 resolution DS-2CE72DF3T-F

#html-body [data-pb-style=RTWYWEA]{background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll;align-self:stretch}#html-body [data-pb-style=X8C2DJG]{display:flex;width:100%}#html-body [data-pb-style=HL55QQU]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll;width:50%;align-self:stretch}#html-body [data-pb-style=TIPP4J7]{border-width:1px}#html-body [data-pb-style=P3A0AP2]{text-align:left}#html-body [data-pb-style=W82L5YX]{border-width:1px;min-height:300px}#html-body [data-pb-style=JB7YNND],#html-body [data-pb-style=OGOQ3C5]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}#html-body [data-pb-style=OGOQ3C5]{width:50%;align-self:stretch}

• Specification

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) ?? 1080 (V)
Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night24/7 Color Imaging
Angle AdjustmentPan: 0?? to 360??, Tilt: 0?? to 75??, Rotation: 0?? to 360??
Signal SystemPAL/NTSC
Slow ShutterMax. 16 times
Light AlarmSolid Light Alarm (White Light)

Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 98??, vertical FOV: 52??, diagonal FOV: 116??

3.6 mm, horizontal FOV: 77??, vertical FOV: 42??, diagonal FOV: 91??

6 mm, horizontal FOV: 51??, vertical FOV: 28??, diagonal FOV: 59??
Lens MountM12
Illuminator
Supplement Light RangeUp to 40 m
Smart Supplement LightYes
Supplement Light TypeWhite Light

Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Image SettingsBrightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, AGC
Frame RateTVI: 1080p@25fps/30fps

CVI: 1080p@25fps/30fps

AHD: 1080p@25fps/30fps

CVBS: PAL/NTSC
Day/Night ModeColor
Wide Dynamic Range (WDR)???130 dB
Image EnhancementWDR, BLC, HLC, Global, HLS
Privacy Mask4 programmable privacy masks
Noise Reduction3D DNR/2D DNR
White BalanceAuto/Manual

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
Event
Motion Detection4 programmable motion areas

General
MaterialMain body: Metal, Enclosure: Plastic
Dimension?? 109.98 mm ?? 98.27 mm (?? 4.33" ?? 3.87")
WeightApprox. 348.5 g (0.77 lb.)
Operating Condition-40??C to 60??C (-40??F to 140??F), Humidity: 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish
Power12 VDC ?? 25%, Max. 4.2 W

*You are recommended to use one power adapter to supply the power for one camera.

Approval
ProtectionIP67
