Model :
SKU : DS-2CD1023G2-LIU 2.8m 2MP

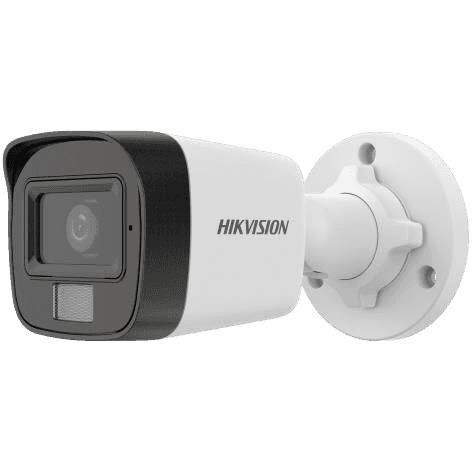

The Hikvision DS-2CD1023G2-LIU (6931847189105) represents a surgical fusion of intelligent illumination and high-bandwidth signal processing. Designed for security professionals who operate within zero-compromise hardware environments, this camera utilizes a high-impact 2MP progressive scan CMOS sensor to capture surgical 1080p footage. The specialized Smart Hybrid Light architecture is surgically engineered to switch between IR for discreet monitoring and white light for full-color detail upon target detection, acting as a reliable pillar for forensic-level evidence collection. Whether you are managing a high-stakes residential driveway or a high-production commercial perimeter, the DS-2CD1023G2-LIU provides the technical refinement and structural integrity required to maintain absolute technical dominance over your facility’s security.
Key Features
Smart Hybrid Light Technology: Meticulously designed for surgical efficiency, offering three supplemental light modes (IR, White Light, or Smart) to provide a high-velocity advantage in any lighting condition.
Built-in Microphone for Real-time Audio: Features surgical audio synchronization, acting as a reliable anchor for comprehensive environmental monitoring and high-impact security verification.
Motion Detection 2.0 (Human/Vehicle): Equipped with specialized deep learning algorithms that provide a surgical advantage in reducing false alarms by focusing on human and vehicle targets in the UAE.
2.8mm Wide-Angle Lens: Meticulously crafted for surgical coverage, providing a high-impact field of view that eliminates blind spots with technical dominance.
Efficient H.265+ Compression: Features high-bandwidth encoding architecture designed to provide a high-velocity reduction in storage requirements without sacrificing image quality.
120dB True WDR Technology: Surgically engineered to provide a visual advantage in high-contrast scenes, ensuring clear details in both bright sunlight and deep shadows.
IP67 Weather Resistance: Meticulously designed for surgical durability, ensuring high-impact performance against the extreme heat, dust, and humidity of the UAE climate.
Why This Product Stands Out
The DS-2CD1023G2-LIU stands out by offering flagship-tier Smart Hybrid illumination and specialized integrated audio within a single high-velocity, all-weather bullet solution. While standard IP cameras often force a choice between discreet IR or intrusive white light, the refined LIU Series architecture acts as a major differentiator, providing a surgical advantage by only activating color mode when a threat is detected. Its professional industrial finish and ultra-precise hardware internals are high-impact benefits for users in the UAE who demand professional-grade hardware for a reliable digital security ecosystem. For the property owner who requires technical dominance and a flagship-tier hybrid anchor, this camera offers a level of refinement and mechanical excellence that redefines the 2MP smart bullet category.
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Max. Resolution | 1920 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0 to 360, tilt: 0 to 90, rotate: 0 to 360 |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 103, vertical FOV 56, diagonal FOV 121 4 mm, horizontal FOV 83, vertical FOV 44, diagonal FOV 99 |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (1920 1080, 1280 720) 60 Hz: 30 fps (1920 1080, 1280 720) |
| Sub-Stream | 50 Hz: 25 fps (640 480, 640 360) 60 Hz: 30 fps (640 480, 640 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region Of Interest (ROI) | 1 fixed region for main stream |
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/ 32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | Wide Dynamic Range (WDR): Digital WDR SNR: 52 dB Day/Night Switch: Day, Night, Auto, Schedule Image Enhancement: BLC, HLC, 3D DNR Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser Privacy Mask: 4 programmable polygon privacy masks |
| Interface | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-In Microphone | Yes |
| Reset Key | -F: Yes |
| Event | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Linkage: Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture |
| General | Power: 12 VDC 25%, 0.4 A, max. 5 W, 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max: 6.5 W Material: Metal & Plastic Dimension: 170.8 mm 66 mm 69.1 mm (6.7" 2.6" 2.7") Package Dimension: 216 mm 121 mm 118 mm (8.5" 4.8" 4.6") Weight: Approx. 265 g (0.6 lb.) With Package Weight: Approx. 495 g (1.1 lb.) Storage Conditions: -30 C to 60 C (-22 F to 140 F). Humidity 95% or less (non-condensing) Startup And Operating Conditions: -30 C to 60 C (-22 F to 140 F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Approval | EMC: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
