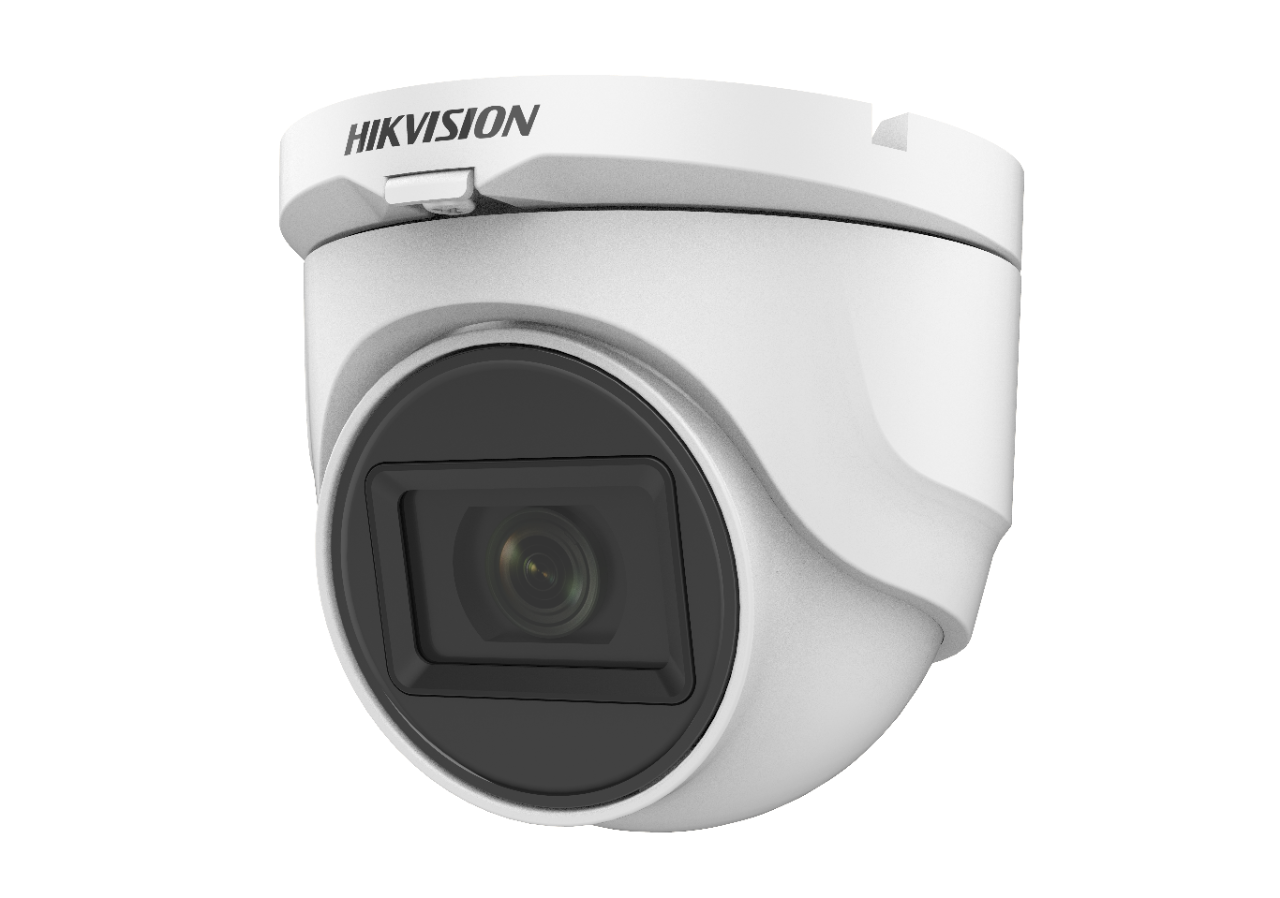

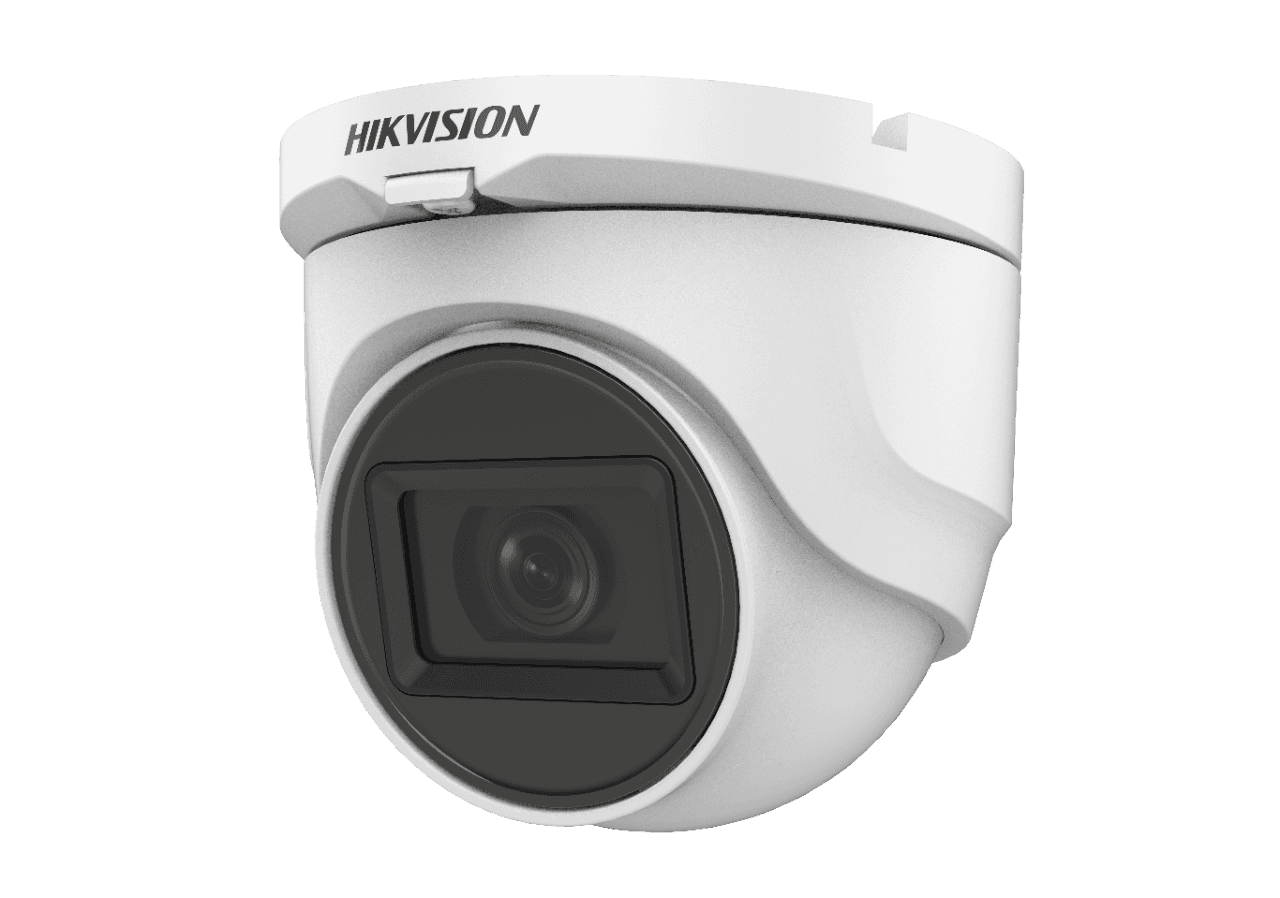

HIKVISION, 2 MP turret camera; EXIR 2.0: advanced infrared technology with 30 m IR distance; Water and dust resistant (IP67) DS-2CE76D0T-ITMF(C)

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) ?? 1080 (V)
Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25s to 1/50, 000 s

NTSC: 1/15 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0?? to 360??; Tilt: 0?? to 75??; Rotate: 0?? to 360??
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV2.8 mm, horizontal FOV: 101??, vertical FOV: 60??, diagonal FOV: 122??

3.6 mm, horizontal FOV: 79.6??, vertical FOV: 43.5??, diagonal FOV: 93.7??

6 mm, horizontal FOV: 51.9????, vertical FOV: 30??, diagonal FOV: 58.8??
Lens MountM12

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Smart IR
Frame RateTVI: 1080P@30fps, 1080P@25fps

CVI: 1080P@30fps, 1080P@25fps

AHD: 1080P@30fps, 1080P@25fps

CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC
White BalanceATW/MANUAL
AGCSupport

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
MaterialMetal
Dimension?? 82.6 mm ?? 90 mm ?? 79.37 mm (?? 3.25" ?? 3.54" ?? 3.12")
WeightApprox. 290 g (0.64 lb.)
Operating Condition-40?? C to 60?? C (-40?? F to 140?? F), Humidity 90% or less (no condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ?? 25%
ConsumptionMax. 3 W


IR RangeUp to 30 m

Approval
ProtectionIP67
