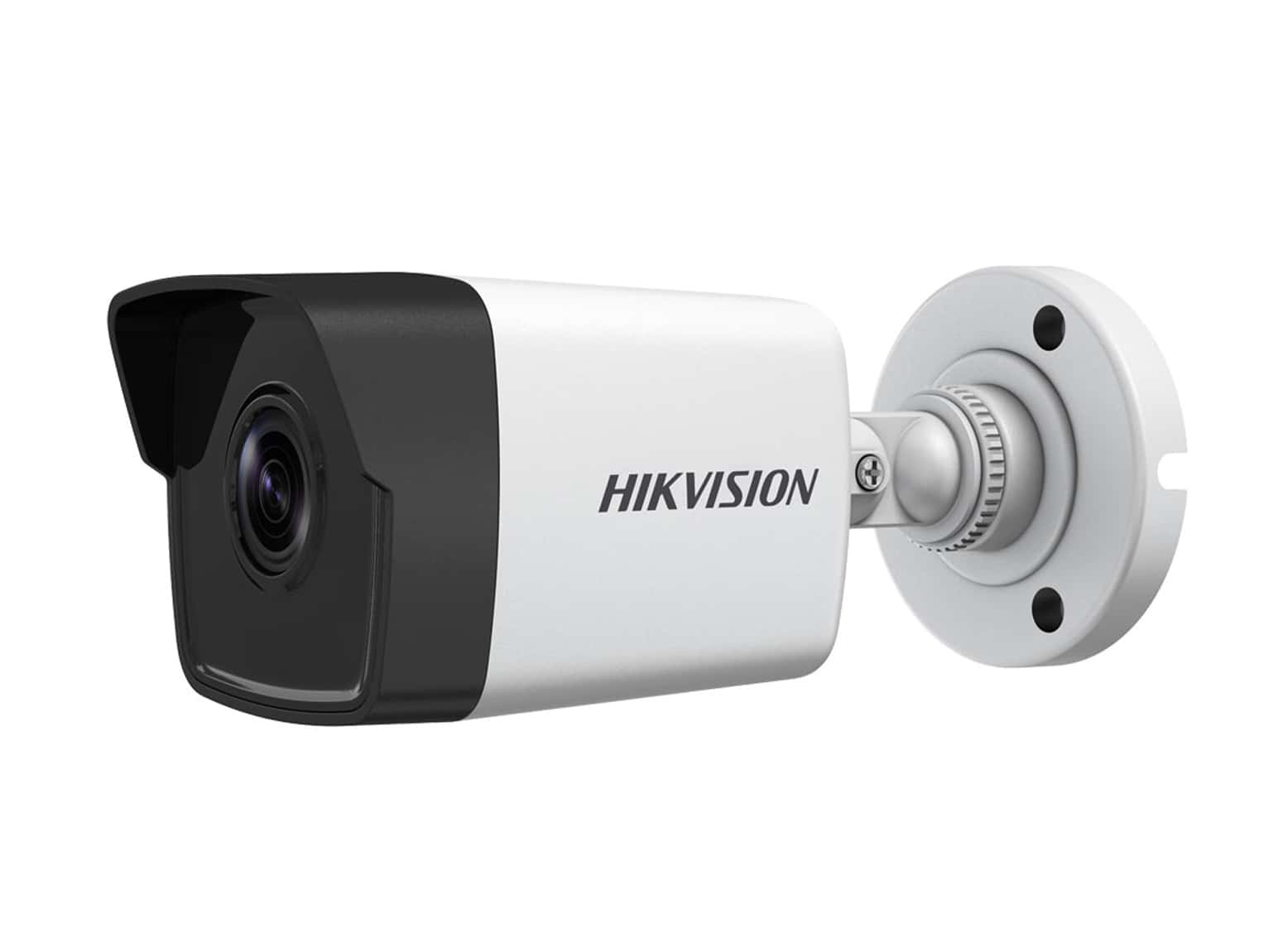

HIKVISION 2MP CAMERA. DS-2CE16D0T-ITF. 2 MP, 1920 x 1080 resolution. 2.8 mm, 3.6 mm, 6 mm fixed lens. 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H)  1080 (V)
Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360; Tilt: 0 to 90; Rotate: 0 to 360
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV2.8 mm, horizontal FOV: 101, vertical FOV: 60, diagonal FOV: 122

3.6 mm, horizontal FOV: 79.6, vertical FOV: 43.5, diagonal FOV: 93.7

6 mm, horizontal FOV: 51.9, vertical FOV: 30, diagonal FOV: 58.8
Lens MountM12

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Smart IR
Frame RateTVI: 1080P@30fps, 1080P@25fps

CVI: 1080P@30fps, 1080P@25fps

AHD: 1080P@30fps, 1080P@25fps

CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC
White BalanceATW/MANUAL
AGCSupport

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
MaterialMetal
Dimension57.9 mm  60.9 mm  138.8 mm (2.28"  2.39"  5.47")
WeightApprox. 257 g (0.57 lb.)
Operating Condition-40 C to 60 C (-40 F to 140 F), Humidity 90% or less (no condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC  25%
ConsumptionMax. 3 W


IR RangeUp to 30 m

Approval
ProtectionIP67
