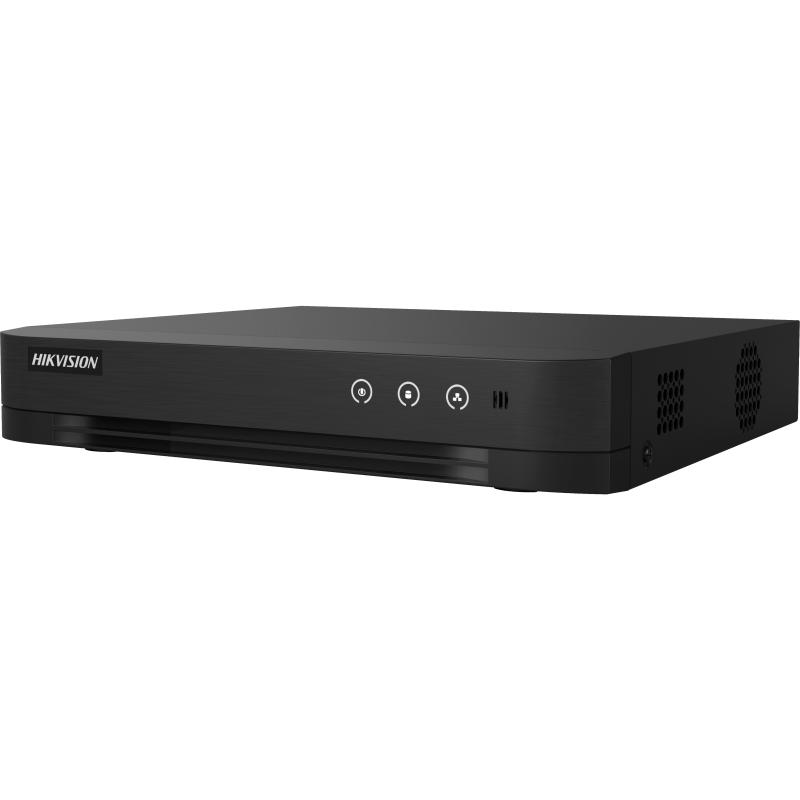

Hikvision 4-ch 1080p Lite 1U H.265 DVR, Up to 5-ch IP camera, Up to 1080p Lite@30 fps , Max. 1200 m for 720p HDTVI signal, H.265 Pro+, Audio coaxial cable, human and vehicle Detection 2.0 | DS-7204HGHI-K1-S/M1 LITE 4 hikvision 4 chanel dvr
Model :
SKU : DS-7204HGHI-K1-S/M1 LITE
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; margin-top: 20px; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
Hikvision 4-ch 1080p Lite 1U H.265 DVR, Up to 5-ch IP camera, Up to 1080p Lite@30 fps , Max. 1200 m for 720p HDTVI signal, H.265 Pro+, Audio coaxial cable, human and vehicle Detection 2.0 | DS-7204HGHI-K1-S/M1 LITE
| Motion Detection 2.0 | ||
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; | |
| Quick search by object or event type is supported; | ||
| Recording | ||
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Encoding Resolution | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF | |
| Frame Rate | Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N) | |
| Video Bitrate | 32 Kbps to 4 Mbps | |
| Stream Type | Video, Video & Audio | |
| Audio Compression | G.711u | |
| Audio Bitrate | 64 Kbps | |
| Video And Audio | ||
| IP Video Input | 1-ch (up to 5-ch) Up to 1080p resolution Support H.265+/H.265/H.264+/H.264 IP cameras | |
| Analog Video Input | 4-ch BNC interface (1.0 Vp-p, 75 ??), supporting coaxitron connection | |
| HDMI Output | 1-ch, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz | |
| VGA Output | 1-ch, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz | |
| CVBS Input | Support | |
| HDTVI Input | 1080p25, 1080p30, 720p25, 720p30 | |
| Synchronous Playback | 4-ch | |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 | |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 | |
| Video Output Mode | HDMI/VGA simultaneous output | |
| Audio Output | 1-ch, RCA (Linear, 1 K??) | |
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 K??) 4-ch via coaxial cable | |
| Two-Way Audio | Reuse the first audio input | |
| Network | ||
| Total Bandwidth | 64 Mbps | |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP???, HTTPS | |
| Remote Connection | 32 | |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface | |
| Auxiliary Interface | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 4 TB capacity for each disk | |
| USB Interface | Rear panel: 2 ?? USB 2.0 | |
| Alarm In/Out | N/A | |
| General | ||
| Power Supply | 12 VDC, 1.5 A | |
| Consumption | ??? 16 W (without HDD) | |
| Working Temperature | -10 ??C to 55 ??C (14 ??F to +31 ??F) | |
| Working Humidity | 10% to 90% | |
| Dimension (W ?? D ?? H) | 260 ?? 222 ?? 45 mm (10.2 ?? 8.7 ?? 1.8 inch) | |
| Weight | ??? 0.8 kg (without HDD, 1.8 lb.) |
Specification
table { border-collapse: collapse; width: 100%; margin-top: 20px; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
Hikvision 4-ch 1080p Lite 1U H.265 DVR, Up to 5-ch IP camera, Up to 1080p Lite@30 fps , Max. 1200 m for 720p HDTVI signal, H.265 Pro+, Audio coaxial cable, human and vehicle Detection 2.0 | DS-7204HGHI-K1-S/M1 LITE
| Motion Detection 2.0 | ||
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; | |
| Quick search by object or event type is supported; | ||
| Recording | ||
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Encoding Resolution | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF | |
| Frame Rate | Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N) | |
| Video Bitrate | 32 Kbps to 4 Mbps | |
| Stream Type | Video, Video & Audio | |
| Audio Compression | G.711u | |
| Audio Bitrate | 64 Kbps | |
| Video And Audio | ||
| IP Video Input | 1-ch (up to 5-ch) Up to 1080p resolution Support H.265+/H.265/H.264+/H.264 IP cameras | |
| Analog Video Input | 4-ch BNC interface (1.0 Vp-p, 75 ??), supporting coaxitron connection | |
| HDMI Output | 1-ch, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz | |
| VGA Output | 1-ch, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz | |
| CVBS Input | Support | |
| HDTVI Input | 1080p25, 1080p30, 720p25, 720p30 | |
| Synchronous Playback | 4-ch | |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 | |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 | |
| Video Output Mode | HDMI/VGA simultaneous output | |
| Audio Output | 1-ch, RCA (Linear, 1 K??) | |
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 K??) 4-ch via coaxial cable | |
| Two-Way Audio | Reuse the first audio input | |
| Network | ||
| Total Bandwidth | 64 Mbps | |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP???, HTTPS | |
| Remote Connection | 32 | |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface | |
| Auxiliary Interface | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 4 TB capacity for each disk | |
| USB Interface | Rear panel: 2 ?? USB 2.0 | |
| Alarm In/Out | N/A | |
| General | ||
| Power Supply | 12 VDC, 1.5 A | |
| Consumption | ??? 16 W (without HDD) | |
| Working Temperature | -10 ??C to 55 ??C (14 ??F to +31 ??F) | |
| Working Humidity | 10% to 90% | |
| Dimension (W ?? D ?? H) | 260 ?? 222 ?? 45 mm (10.2 ?? 8.7 ?? 1.8 inch) | |
| Weight | ??? 0.8 kg (without HDD, 1.8 lb.) |
