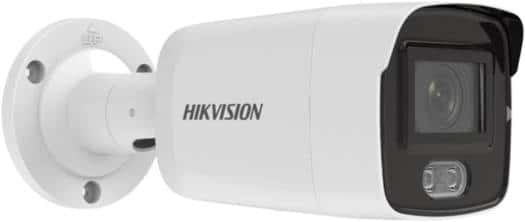

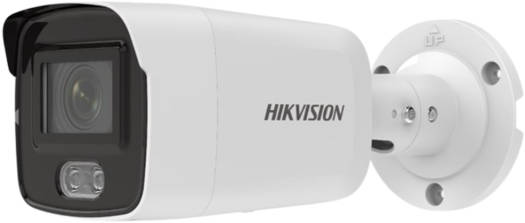

Hikvision 4MP ColorVu Fixed Mini Bullet Network Camera, 2.8mm Fixed Focal Lens, H.265+ Compression, Built In Microphone, 24/7 Colorful Imaging, 40m Light Range, Dust Resistant | DS-2CD2047G2-L(U)

Model :

SKU : DS-2CD2047G2-LU

dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

stock : 1

About this item

Description

Hikvision 4MP ColorVu Fixed Mini Bullet Network Camera, 2.8mm Fixed Focal Lens, H.265+ Compression, Built In Microphone, 24/7 Colorful Imaging, 40m Light Range, Dust Resistant | DS-2CD2047G2-L(U)

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 ?? 1520
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time 1/3 s to 1/100,000 s
Angle Adjustment Pan: 0?? to 360??, Tilt: 0?? to 90??, Rotate: 0?? to 360??
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 112??, vertical FOV 61??, diagonal FOV 134??
4 mm, horizontal FOV 95??, vertical FOV 51??, diagonal FOV 115??
6 mm, horizontal FOV 58??, vertical FOV 31??, diagonal FOV 69??
Lens Mount M16
Iris Type Fixed
Aperture F1.0
Depth Of Field 2.8 mm, 2.5 m to ???
4 mm, 3.5 m to ???
6 mm, 7.5 m to ???
DORI 2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
Supplement Light Type White Light
Supplement Light Range 40 m
Smart Supplement Light Yes
Main Stream Video 50 Hz: 25 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720)
60 Hz: 30 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720)
Sub-Stream Video 50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360)
60 Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360)
Third Stream Video 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360)
60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360)
Video Compression Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region Of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering -U: Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch Auto, Schedule
Wide Dynamic Range (WDR) 130 dB
SNR ??? 52 dB
Image Enhancement BLC, HLC, 3D DNR
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone -U: Yes
Reset Key Yes
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
Deep Learning Function Face Capture: Yes
Power 12 VDC ?? 25%, 0.5 A, max. 6 W, ??5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
Dimension 215.2 mm ?? 78.8 mm ?? 78.6 mm (8.5" ?? 3.1" ?? 3.1")
Package Dimension 315 mm ?? 137 mm ?? 141 mm (12.4" ?? 5.4" ?? 5.6")
Weight Approx. 695 g (1.5 lb.)
With Package Weight Approx. 1090 g (2.4 lb.)
Storage Conditions -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing)
Language English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Approval FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)

Specification

Hikvision 4MP ColorVu Fixed Mini Bullet Network Camera, 2.8mm Fixed Focal Lens, H.265+ Compression, Built In Microphone, 24/7 Colorful Imaging, 40m Light Range, Dust Resistant | DS-2CD2047G2-L(U)

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 ?? 1520
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time 1/3 s to 1/100,000 s
Angle Adjustment Pan: 0?? to 360??, Tilt: 0?? to 90??, Rotate: 0?? to 360??
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 112??, vertical FOV 61??, diagonal FOV 134??
4 mm, horizontal FOV 95??, vertical FOV 51??, diagonal FOV 115??
6 mm, horizontal FOV 58??, vertical FOV 31??, diagonal FOV 69??
Lens Mount M16
Iris Type Fixed
Aperture F1.0
Depth Of Field 2.8 mm, 2.5 m to ???
4 mm, 3.5 m to ???
6 mm, 7.5 m to ???
DORI 2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
Supplement Light Type White Light
Supplement Light Range 40 m
Smart Supplement Light Yes
Main Stream Video 50 Hz: 25 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720)
60 Hz: 30 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720)
Sub-Stream Video 50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360)
60 Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360)
Third Stream Video 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360)
60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360)
Video Compression Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region Of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering -U: Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch Auto, Schedule
Wide Dynamic Range (WDR) 130 dB
SNR ??? 52 dB
Image Enhancement BLC, HLC, 3D DNR
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone -U: Yes
Reset Key Yes
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
Deep Learning Function Face Capture: Yes
Power 12 VDC ?? 25%, 0.5 A, max. 6 W, ??5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
Dimension 215.2 mm ?? 78.8 mm ?? 78.6 mm (8.5" ?? 3.1" ?? 3.1")
Package Dimension 315 mm ?? 137 mm ?? 141 mm (12.4" ?? 5.4" ?? 5.6")
Weight Approx. 695 g (1.5 lb.)
With Package Weight Approx. 1090 g (2.4 lb.)
Storage Conditions -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing)
Language English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Approval FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)
