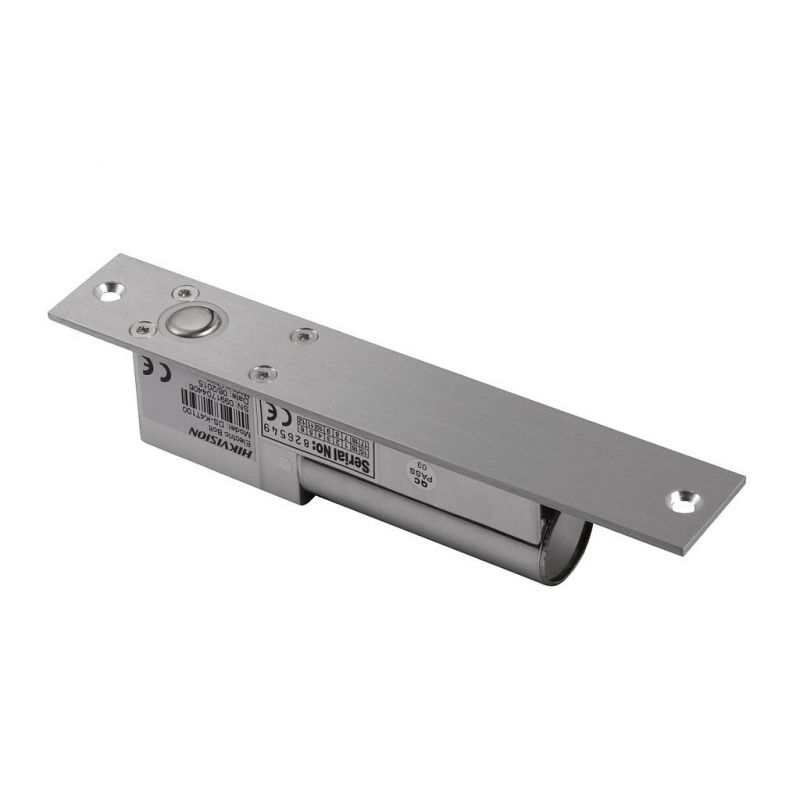

Hikvision access control DS-K4T100 Electric Bolt Lock Thrust 800kg Stainless Steel Hikvision
Model :
SKU : DS-K4T100 ELECTRIC LOCK
About this item
- Electric bolt, polished and brushed stainless steel, upport thrust of 800kg
- Working current: 900mA(Startup current), 100mA (standby), 12VDC + 10%
- Capable of 500,000 locking operations
- Suitable for wooden door, glass door, metal door and fireproof door
- Signal output of door lock status.
Description
Power Supply Specifications
| Power Supply | 12 VDC +10%, 900 mA (startup current), 100 mA (standby) |
Working Conditions
| Working Temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Working Humidity | 0 to 95 % (relative humidity) |
Dimensions
| Lock Body | 205 mm ?? 35 mm ?? 40 mm (8.07" ?? 1.38" ?? 1.57") |
| Armature Plate | 90 mm ?? 25 mm ?? 2 mm (3.54" ?? 0.98" ?? 0.07") |
| Bolt | 16 mm ?? 16 mm (0.63" ?? 0.63") |
Material
| Bolt Material | Polished and brushed stainless steel |
Performance
| Thrust | Max. 800 kg (1764 lb) |
| Door Type | Glass door, wooden door, metal door, fireproof door |
Signal Output
| Signal Output | NC, COM contact of door status |
Other Specifications
| Magnetic Induction Distance | 8 mm (0.31") |
| Delay Duration | 0/3/6/9 s optional |
Specification
Power Supply Specifications
| Power Supply | 12 VDC +10%, 900 mA (startup current), 100 mA (standby) |
Working Conditions
| Working Temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Working Humidity | 0 to 95 % (relative humidity) |
Dimensions
| Lock Body | 205 mm ?? 35 mm ?? 40 mm (8.07" ?? 1.38" ?? 1.57") |
| Armature Plate | 90 mm ?? 25 mm ?? 2 mm (3.54" ?? 0.98" ?? 0.07") |
| Bolt | 16 mm ?? 16 mm (0.63" ?? 0.63") |
Material
| Bolt Material | Polished and brushed stainless steel |
Performance
| Thrust | Max. 800 kg (1764 lb) |
| Door Type | Glass door, wooden door, metal door, fireproof door |
Signal Output
| Signal Output | NC, COM contact of door status |
Other Specifications
| Magnetic Induction Distance | 8 mm (0.31") |
| Delay Duration | 0/3/6/9 s optional |
