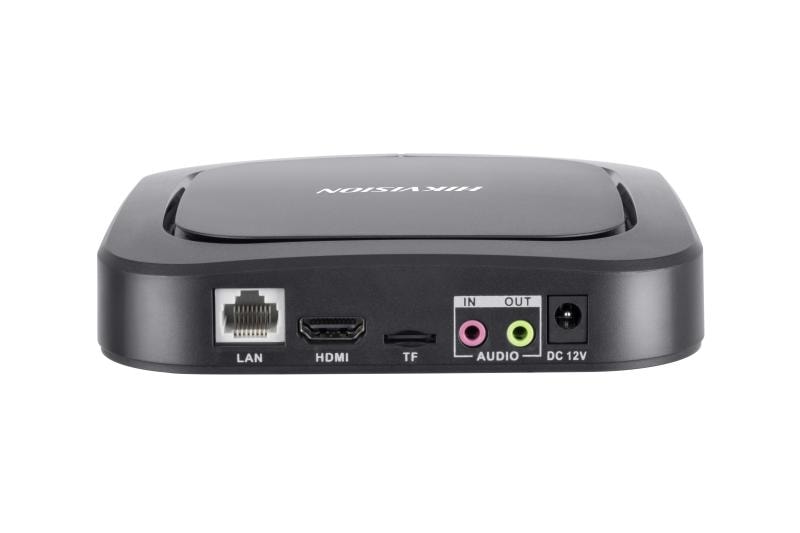

Hikvision Digital Technology DS-D60C-B Video Decoder 3840 x 2160 Pixels
Model :
SKU : DS-D60C-B DIGITAL SIGNAGE
Description
The Hikvision DS-D60C-B Digital Signage Box is a compact and powerful information distribution device designed to transform standard displays into smart digital signage systems. It enables centralized, secure, and flexible content management across one or multiple screens, making it ideal for commercial, corporate, educational, retail, and public information environments.
Key Features
Wide Content Compatibility
Supports both static and dynamic materials, including:
- Applications
- Images and audio
- Video content
- PDF documents
- Streaming media
- Web pages
- Live video feeds
- Third-party data sources
This versatility allows businesses to deliver rich and engaging multimedia content tailored to different audiences.
Flexible Program Scheduling
- Create free schedules or split-screen / zone-based layouts with multiple materials displayed simultaneously
- Supports multiple playback modes:
- Daily display
- Weekly display
- Custom time-based scheduling
Ensures precise control over when and how content is displayed.
Centralized Remote Management
- Remotely manage single or multiple screens from a central platform
- Key remote functions include:
- Scheduled power on/off
- Timed brightness and volume adjustment
- Real-time screenshot preview for monitoring content playback
This reduces on-site maintenance and improves operational efficiency.
Advanced Organization Structure
- 5-level organization hierarchy for efficient management of:
- Materials
- Programs
- Terminals
- User accounts
Ideal for large deployments across branches, departments, or regions.
Multi-Level User Permissions
- Create custom user accounts
- Assign permissions based on user roles and access levels
- Prevents unauthorized changes and improves system security
Enhanced Security Safeguards
- Three-level content verification for materials, programs, and schedules to avoid incorrect or accidental publishing
- Screensaver protection ensures safe broadcasting
- Encrypted data storage and transmission prevent data tampering and unauthorized access
Arbitrary Direction Remote Control
- Wireless remote control operating on 433 MHz frequency
- Allows reliable control of the signage box from any direction, without line-of-sight limitations
Typical Usage Scenarios
- Retail & Shopping Malls: Promotions, advertisements, and product highlights
- Corporate Offices: Announcements, dashboards, and branding displays
- Education: Digital notice boards and campus information systems
- Transportation & Public Areas: Timetables, alerts, and wayfinding
- Hospitality & Healthcare: Menus, visitor information, and guidance displays
Specification
Android Digital Signage Media Player – Technical Specifications
| Video Resolution Support | |
|---|---|
| Built-in System | |
| Interfaces | |
| Power | |
| Working Environment | |
| Physical Specifications | |
| Packing List | |
| Supported Media Formats | |
| Supported Resolutions | 1920 × 1080 @ 30/50/60 Hz 1280 × 720 @ 30/50/60 Hz 3840 × 2160 @ 30/50/60 Hz |
| Operating System | Android 8.1.0 |
| CPU | Cortex-A17 Quad-Core, 1.6 GHz |
| Memory | 2 GB RAM |
| Internal Storage | 16 GB (eMMC) |
| Audio Input | 1 × AUDIO IN |
| Audio Output | 1 × AUDIO OUT |
| Video Output | 1 × HDMI OUT |
| Network Interface | LAN × 1, Wi-Fi |
| Data Interfaces | USB 2.0 × 2, Bluetooth 4.0 |
| Power Supply | 12V AC, 2A |
| Standby Power Consumption | ≤ 1 W |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 10% ~ 90% |
| Product Dimensions (W × H × D) | 145 × 145 × 31.89 mm (5.7 × 5.7 × 1.3 in) |
| Package Dimensions (W × H × D) | 188 × 176 × 101 mm (7.4 × 6.9 × 4.0 in) |
| Net Weight | 0.6 kg (1.3 lb) |
| Gross Weight | 0.65 kg (1.4 lb) |
| Included Accessories | Power Adapter × 1, Remote Control × 1 |
| Video Formats | DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, FLV, WEBM, WMV, ASF |
| Audio Formats | MP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, AAC, M4A, XMF, MXMF, RTTTL, RTX, OTA, IMY |
| Image Formats | JPG, JPEG, BMP, GIF, PNG |
