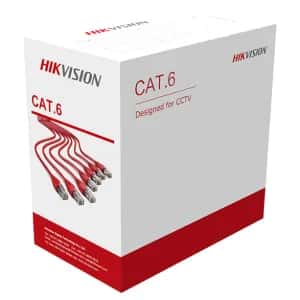

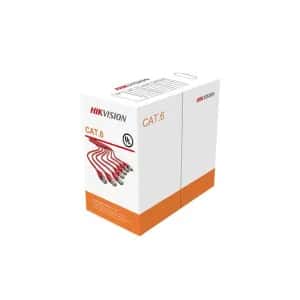

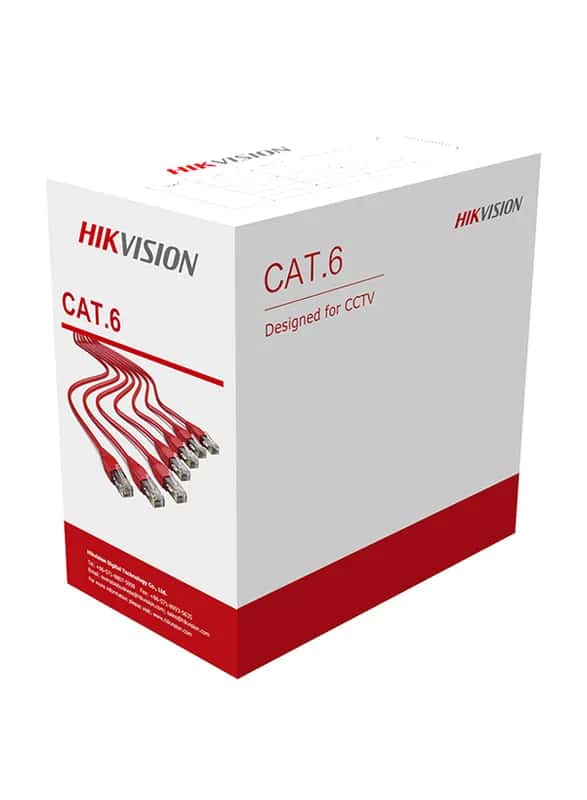

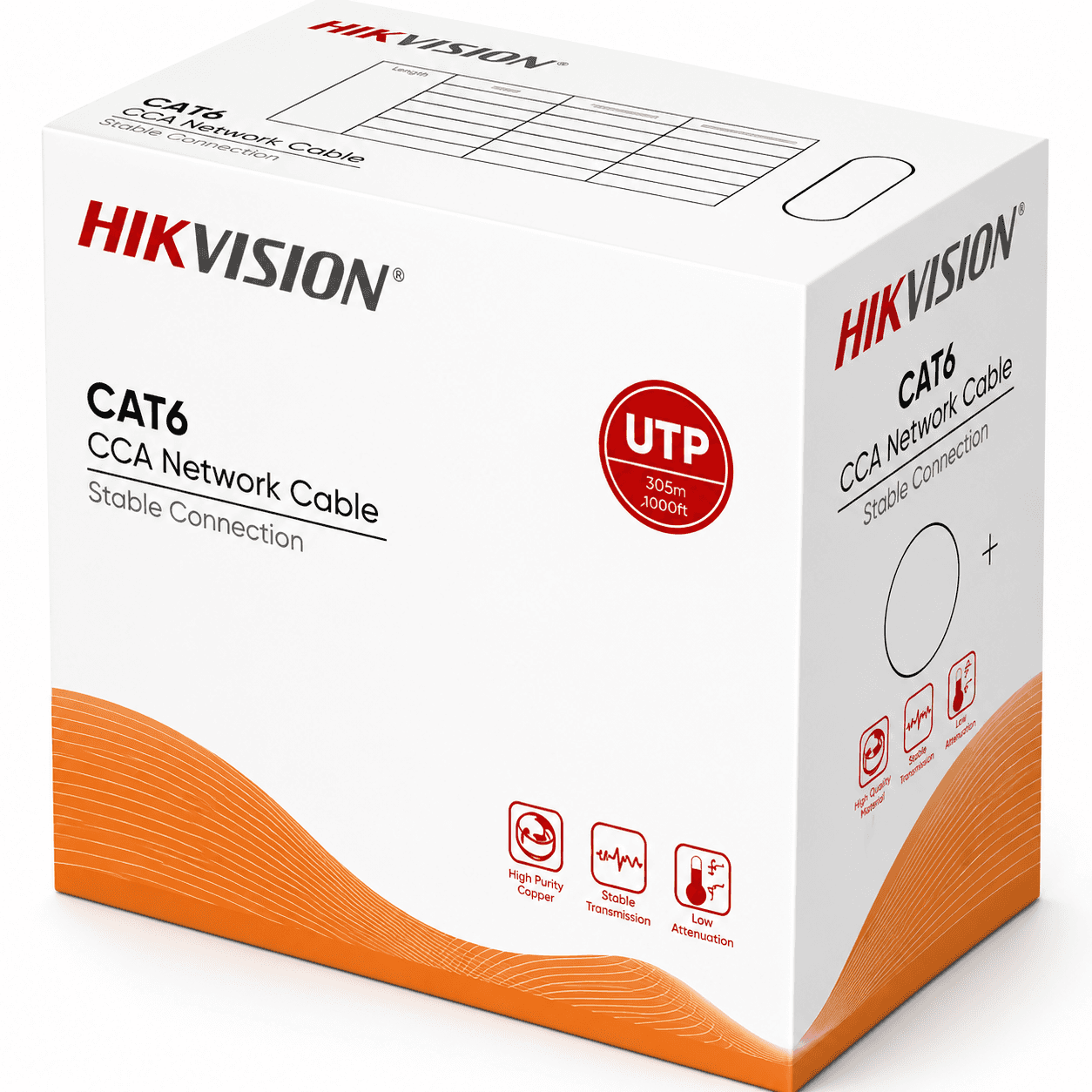

Hikvision DS-1LN6UU-CCA 305 m CAT6 UTP Network Cable (CCA,0.565 mm)
Model :
SKU : CAT6-HIKV DS-1LN6U-W/CCA
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision DS-1LN6U-W/CCA: 305m Cost-Effective CAT6 UTP Network Cable (CCA, 0.565mm)
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; }
| General | |
| Core Color | 1 Blue & White/ Blue 2 Orange & White/ Orange 3 Green & White/ Green 4 Brown & White/ Brown |
| Packing | |
| Carton Dimension | 41x41x24cm |
| Packing Length | (305??1.5)m |
| Rip-Cord | Yes |
| Drain Wire | No |
| Sheath Physical Properties | |
| Before Aging Tensile Strength (Mpa) | ???13.5 |
| Elongation(%) | ???150 |
| Aging Period(?????hrs) | 100?????24h??7d |
| Electrical Characteristics (20???) | |
| 1.0-100.0MHz Impedance(??) | 100??15 |
| 100 - 250MHz Impedance(??) | 100??25 |
| 1.0-100.0MHz Delay Shew (ns/100m) | ???45 |
| DC Resistance??/100m) max | 12 |
| DC Conductor Resistance Unbalance(%) max | 2 |
| Conductor | |
| Material | CCA???Copper content???27%??? |
| Nom.O.D.(Mm) | 0.585??0.01 |
| Insulation | |
| Material | Solid HDPE |
| Diameter | 1.05??0.05mm |
| Sheath | |
| Thickness | 0.50??0.05 mm |
| External O.D. | 6.0??0.30 mm |
| Surface | Clean, Frap, Satiation |
| Surface Printing | |
| Letter Height | 2.5??0.2mm |
| Color | Black |
| Print Error & Space | ?????0.5%???1m |
