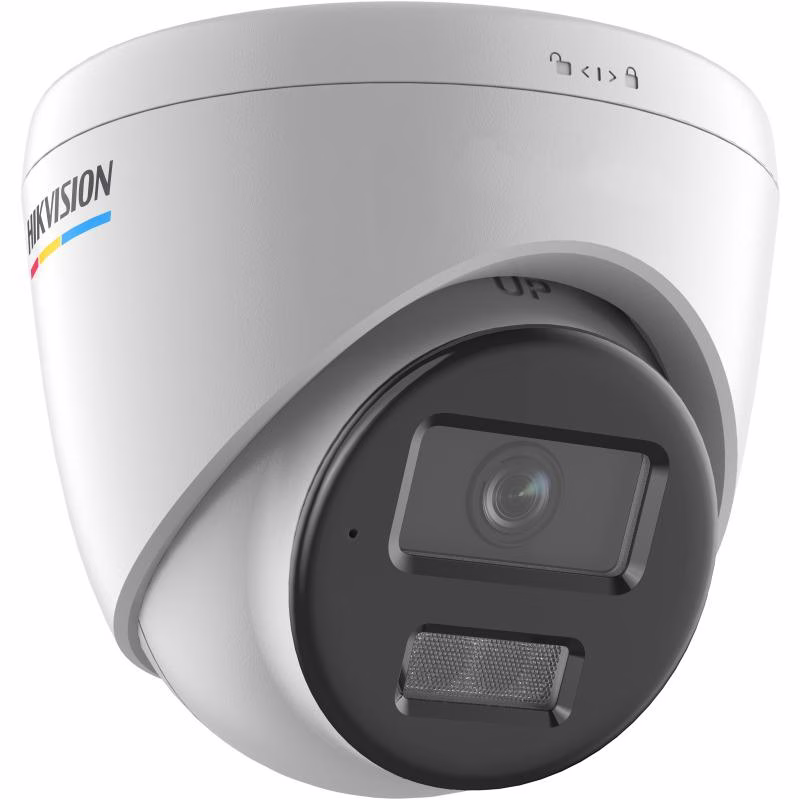

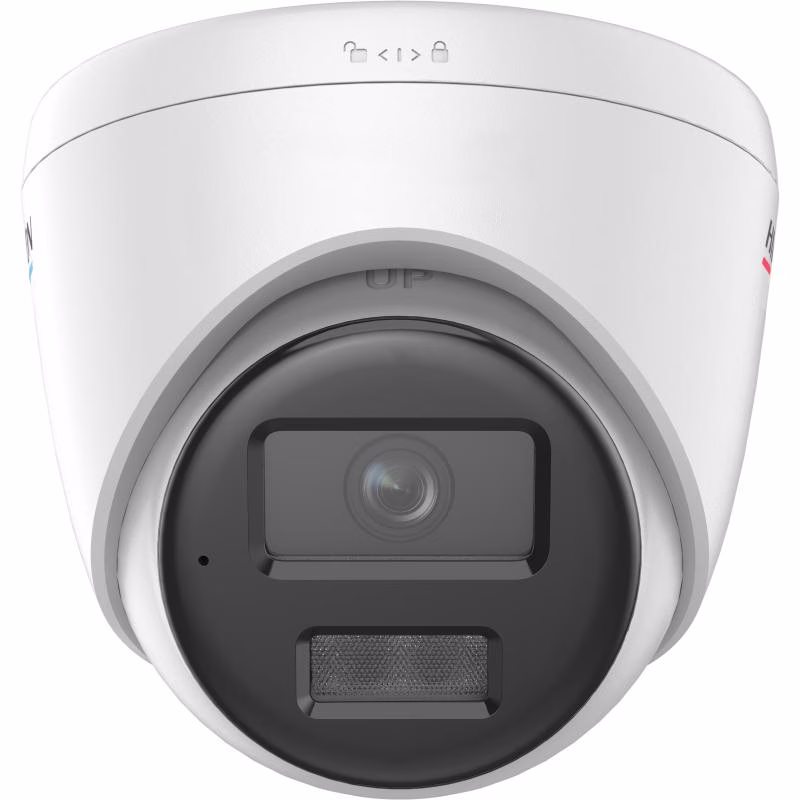

Hikvision DS-2CD1327G2H-LIU Smart Hybrid Light Fixed Turret Network Camera, Built-in microphone, Human and Vehicle Detection
Model : DS-2CD1327G2H-LIU(2.8mm)
SKU : DS-2CD1327G2H-LIU(2.8mm)
QTY :
1
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
Specification
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360° |
| Lens Type | Fixed focal lens, 2.8 mm and 4 mm optional |
| Focal Length & FOV | 2.8 mm: H 106°, V 56°, D 129° 4 mm: H 88°, V 47°, D 103° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| DORI (2.8 mm) | D: 44 m, O: 17 m, R: 8 m, I: 4 m |
| DORI (4 mm) | D: 53 m, O: 21 m, R: 10 m, I: 5 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (1920×1080, 1280×720) 60 Hz: 30 fps (1920×1080, 1280×720) |
| Sub-Stream | 50 Hz: 25 fps (640×480, 640×360) 60 Hz: 30 fps (640×480, 640×360) |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps – 8 Mbps |
| H.264 Type | Baseline, Main, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio Type | Mono |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711), 16 Kbps (G.722.1), 16 Kbps (G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz / 16 kHz |
| Environment Noise Filtering | Yes |
| Network Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S/T/G -F model), ISAPI, SDK |
| Security | Password protection, authentication, watermark, security log, MAC address authentication |
| User/Host | Up to 32 users (Admin, Operator, User) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE 10/11 (Plug-in), Chrome 57+, Firefox 52+, Edge 89+ |
| Image Settings | Rotate, saturation, brightness, contrast, sharpness, gain, white balance |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | Digital WDR |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon masks |
| Ethernet Interface | 1 RJ45 10/100M self-adaptive Ethernet port |
| On-board Storage | -F model: microSD/microSDHC/microSDXC up to 512 GB |
| Built-in Microphone | Yes |
| Reset Key | -F model: Yes |
| Basic Events | Motion detection (human/vehicle), video tampering, exception |
| Event Linkage | Record to SD (-F), FTP upload, notify center, email, snapshot |
| Power | 12 VDC ±25% (0.45 A, max 5.4 W) / PoE IEEE 802.3af Class 3 (max 6.5 W) |
| Material | Metal & Plastic |
| Dimensions | Ø110 × 93 mm (Ø4.33" × 3.66") |
| Package Dimensions | 150 × 150 × 141 mm (5.91" × 5.91" × 5.55") |
| Weight | Approx. 380 g (0.8 lb) |
| Weight (With Package) | Approx. 611 g (1.3 lb) |
| Operating Conditions | -30°C to 60°C (-22°F to 140°F), ≤95% RH (non-condensing) |
| Language | English, Ukrainian |
| General Functions | Heartbeat, anti-banding, mirror, password protection, reset by email |
| EMC | CE-EMC: EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014; RCM: AS/NZS CISPR 32:2015; IC: ICES-003: Issue 7 |
| Safety | UL 62368-1, IEC 62368-1:2014+A11, EN 62368-1:2014/A11:2017, BIS: IS 13252 (Part 1):2010 |
| Environmental Compliance | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, REACH: Regulation (EC) No 1907/2006 |
| Protection | IP67 (IEC 60529-2013) |
