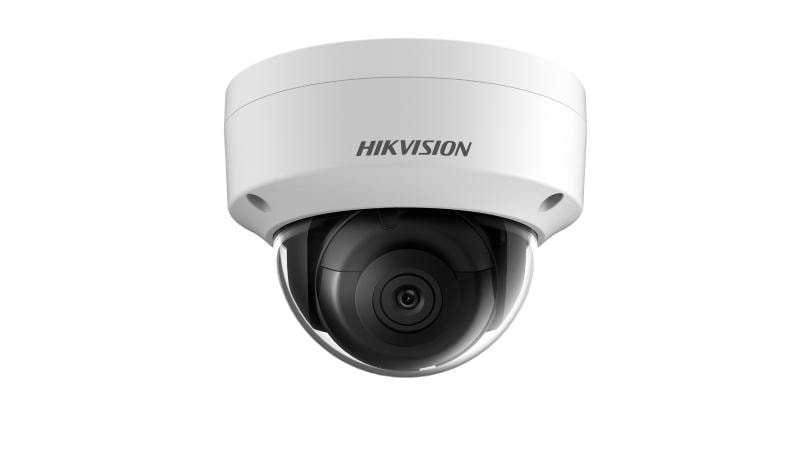

Hikvision DS-2CD2163G0-I 6 MP Outdoor WDR Fixed Dome Network Camera, Up to 30 m, h265+, 1/2.9" Progressive Scan CMOS
Model :
SKU : DS-2CD2163G0-I dome 6mp
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision DS-2CD2163G0-I 6 MP Outdoor WDR Fixed Dome Network Camera, Up to 30 m, h265+, 1/2.9" Progressive Scan CMOS
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0?? to 355??, tilt: 0?? to 75??, rotate: 0?? to 355?? |
| Focus | Fixed |
| Lens Type | 2.8/4/6/8 mm |
| Field of View (FOV) | 2.8 mm: horizontal 97??, vertical 63??, diagonal 120?? 4 mm: horizontal 78??, vertical 50??, diagonal 97?? 6 mm: horizontal 60??, vertical 39??, diagonal 75?? 8 mm: horizontal 39.5??, vertical 26??, diagonal 48?? |
| Aperture | F2.0 |
| Lens Mount | M12 |
| Illuminator | IR Range: Up to 30 m Wavelength: 850nm |
| Max. Resolution | 3072 ?? 2048 |
| Main Stream | 50Hz: 20 fps (3072 ?? 2048, 3072 ?? 1728, 2944 ?? 1656), 25 fps (2560 ?? 1440, 1920 ?? 1080, 1280 ?? 720) 60Hz: 20 fps (3072 ?? 2048, 3072 ?? 1728, 2944 ?? 1656), 30 fps (2560 ?? 1440, 1920 ?? 1080, 1280 ?? 720) |
| Sub Stream | 50Hz: 25 fps (640 ?? 480, 640 ?? 360, 320 ?? 240) 60Hz: 30 fps (640 ?? 480, 640 ?? 360, 320 ?? 240) |
| Third Stream | 50Hz: 25 fps (1280 ?? 720, 640 ?? 360, 352 ?? 288) 60Hz: 30 fps (1280 ?? 720, 640 ?? 360, 352 ?? 240) |
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding support |
| Audio | Environment Noise Filtering: Yes Audio Sampling Rate: 8/16/32/44.1/48 kHz Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate: 64Kbps(G.711), 16Kbps(G.722.1), 16Kbps(G.726), 32-192Kbps(MP2L2) |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator, and User |
| Network Storage | Micro SD/SDHC/SDXC card (up to 128GB), local storage, NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 |
| Web Browser | IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 (Plug-in required) Chrome 45.0+, Firefox 52.0+ (Plug-in free) |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP conflict, illegal login, HDD full, HDD error |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, white balance (adjustable via client software or web browser) |
| Audio Interface | 1 input (line in/mic in), 1 output (line out), terminal block, mono sound |
| Alarm Interface | 1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
| On-board Storage | Built-in microSD/SDHC/SDXC slot (up to 128GB) |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event Features | Face Detection: Yes |
| General | Firmware Version: 5.6.3 Functions: One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Operating Conditions | -30 ??C to +60 ??C (-22 ??F to +140 ??F), Humidity: 95% (non-condensing) |
| Power Supply | 12 VDC ?? 25%, PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W |
| Material | Front cover: metal Back cover: plastic |
| Dimensions | 82.4 mm ?? 74.3 mm ?? 174.1 mm (3.24" ?? 2.93" ?? 6.85") |
| Weight | Approx. 500 g (1.1 lb) |
Specification
Hikvision DS-2CD2163G0-I 6 MP Outdoor WDR Fixed Dome Network Camera, Up to 30 m, h265+, 1/2.9" Progressive Scan CMOS
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0?? to 355??, tilt: 0?? to 75??, rotate: 0?? to 355?? |
| Focus | Fixed |
| Lens Type | 2.8/4/6/8 mm |
| Field of View (FOV) | 2.8 mm: horizontal 97??, vertical 63??, diagonal 120?? 4 mm: horizontal 78??, vertical 50??, diagonal 97?? 6 mm: horizontal 60??, vertical 39??, diagonal 75?? 8 mm: horizontal 39.5??, vertical 26??, diagonal 48?? |
| Aperture | F2.0 |
| Lens Mount | M12 |
| Illuminator | IR Range: Up to 30 m Wavelength: 850nm |
| Max. Resolution | 3072 ?? 2048 |
| Main Stream | 50Hz: 20 fps (3072 ?? 2048, 3072 ?? 1728, 2944 ?? 1656), 25 fps (2560 ?? 1440, 1920 ?? 1080, 1280 ?? 720) 60Hz: 20 fps (3072 ?? 2048, 3072 ?? 1728, 2944 ?? 1656), 30 fps (2560 ?? 1440, 1920 ?? 1080, 1280 ?? 720) |
| Sub Stream | 50Hz: 25 fps (640 ?? 480, 640 ?? 360, 320 ?? 240) 60Hz: 30 fps (640 ?? 480, 640 ?? 360, 320 ?? 240) |
| Third Stream | 50Hz: 25 fps (1280 ?? 720, 640 ?? 360, 352 ?? 288) 60Hz: 30 fps (1280 ?? 720, 640 ?? 360, 352 ?? 240) |
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding support |
| Audio | Environment Noise Filtering: Yes Audio Sampling Rate: 8/16/32/44.1/48 kHz Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate: 64Kbps(G.711), 16Kbps(G.722.1), 16Kbps(G.726), 32-192Kbps(MP2L2) |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator, and User |
| Network Storage | Micro SD/SDHC/SDXC card (up to 128GB), local storage, NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 |
| Web Browser | IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 (Plug-in required) Chrome 45.0+, Firefox 52.0+ (Plug-in free) |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP conflict, illegal login, HDD full, HDD error |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, white balance (adjustable via client software or web browser) |
| Audio Interface | 1 input (line in/mic in), 1 output (line out), terminal block, mono sound |
| Alarm Interface | 1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
| On-board Storage | Built-in microSD/SDHC/SDXC slot (up to 128GB) |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event Features | Face Detection: Yes |
| General | Firmware Version: 5.6.3 Functions: One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Operating Conditions | -30 ??C to +60 ??C (-22 ??F to +140 ??F), Humidity: 95% (non-condensing) |
| Power Supply | 12 VDC ?? 25%, PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W |
| Material | Front cover: metal Back cover: plastic |
| Dimensions | 82.4 mm ?? 74.3 mm ?? 174.1 mm (3.24" ?? 2.93" ?? 6.85") |
| Weight | Approx. 500 g (1.1 lb) |
