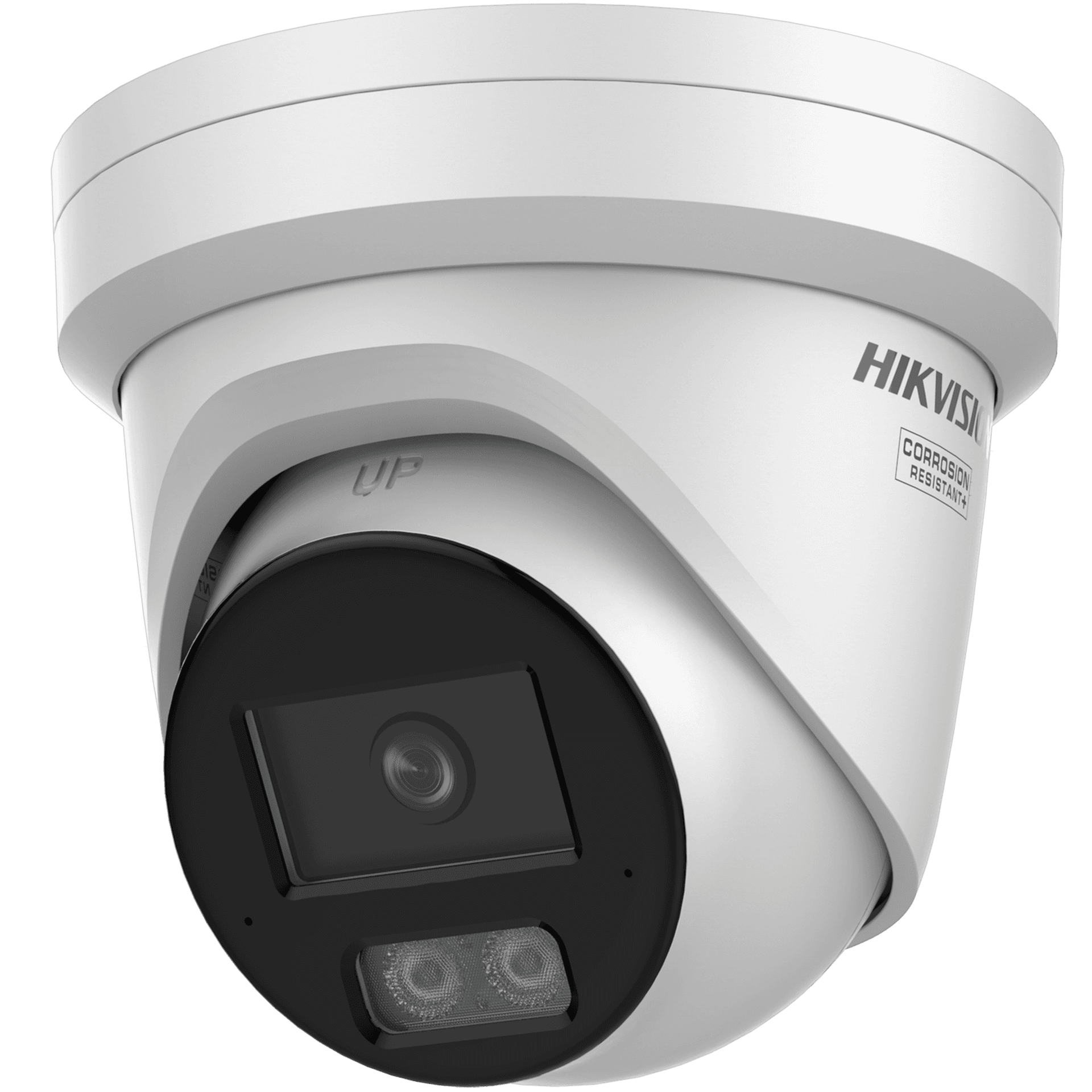

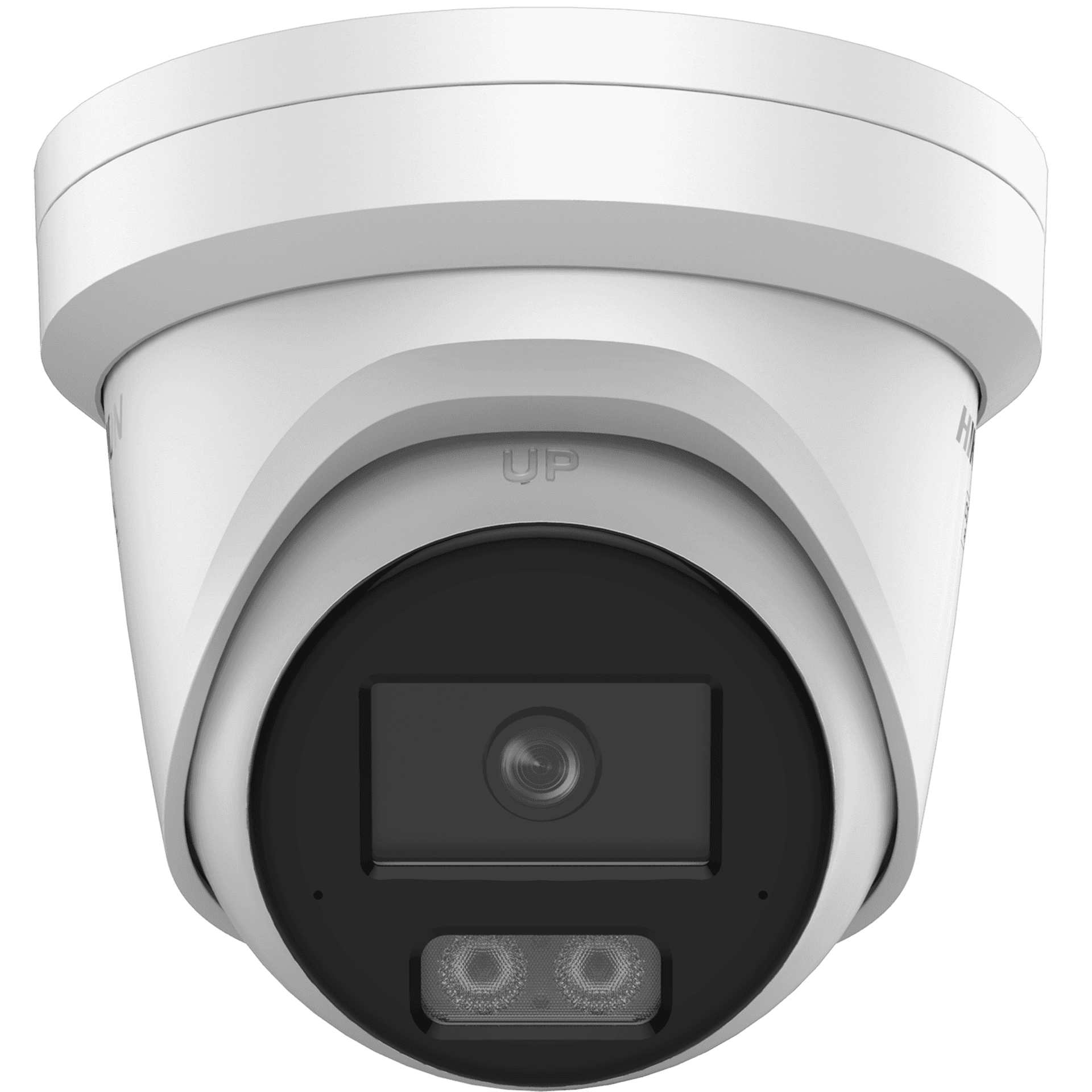

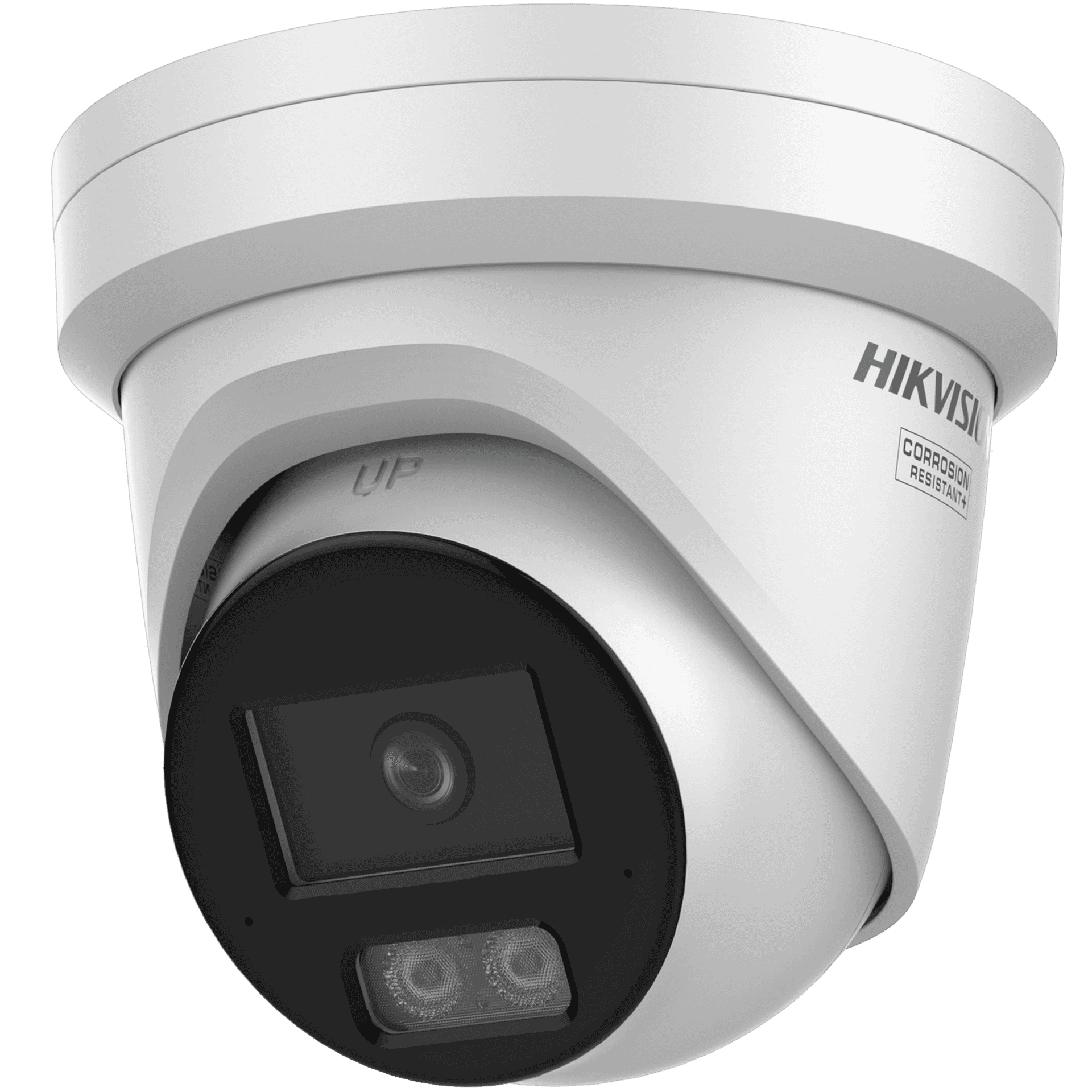

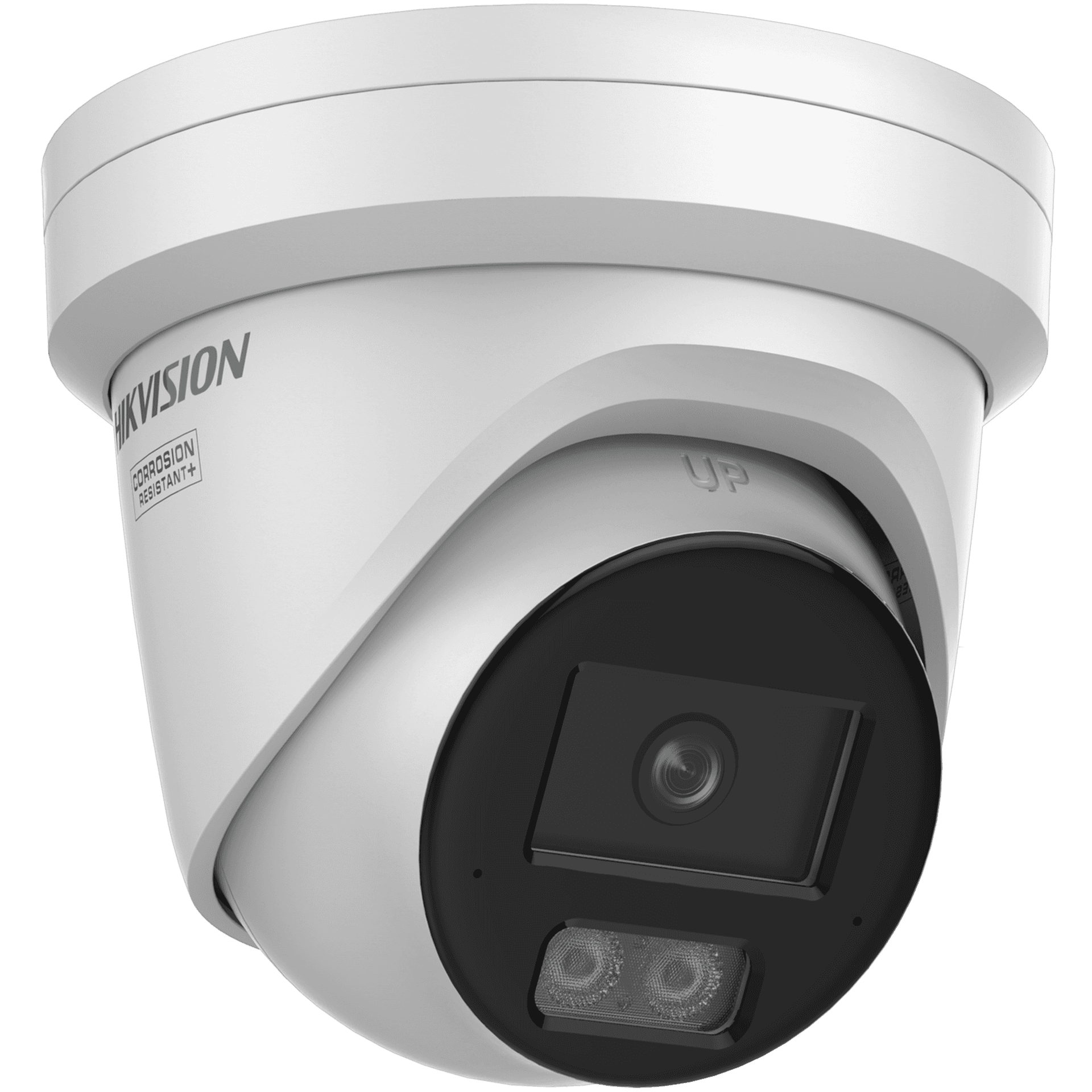

Hikvision 8MP ColorVu 3.0 Hybrid Anti-Corrosion Turret Dome

Customer Service	Quick Links
Contact Us	My Account
Warranty & Repairs Policy	Cart
Shipping Policy	Wishlist
Online Returns Policy	View All Categories
Payment Terms

Customer Service

Quick Links

My Account

Warranty & Repairs Policy

Cart

Shipping Policy

Wishlist

Online Returns Policy

View All Categories

Payment Terms

Hikvision DS-2CD23123G2-LIS2UY/SRB (4mm) 12MP AcuSense Strobe Light and Audible Warning & Smart Hybrid Light Fixed Turret Network Camera, Red & Blue Light Alarm | DS-2CD23123G2-LIS2UY/SRB

699.00

Feature

Specification

Camera - Image Sensor

1/1.8" Progressive Scan CMOS

Camera - Max. Resolution

3840 × 2160 (4K / 8MP)

Camera - Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light

Camera - Shutter Time

1 s to 1/100,000 s

Camera - Day & Night

IR cut filter

Camera - Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Lens - Selection

Fixed focal lens, 2.8 mm and 4 mm optional

Lens - FOV (2.8 mm)

Horizontal FOV: 108.8°, Vertical FOV: 56.4°, Diagonal FOV: 134.3°

Lens Specs (2.8 mm)

Mount: M16 | Iris Type: Fixed | Aperture: F1.0 | Depth of Field: 3.3 m to ∞

DORI (2.8 mm)

D (Detect): 89 m, O (Observe): 35 m, R (Recognize): 17 m, I (Identify): 8 m

Illuminator

Smart Supplement Light (White Light / IR)

Range: Up to 30 m

IR Wavelength: 850 nm

Video - Streams

Main (50Hz): 25 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)

Main (60Hz): 30 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)

Sub: 25 fps (50Hz) / 30 fps (60Hz) @ (1280×720, 640×480, 640×360)

Third: 10 fps (50Hz/60Hz) @ (1920×1080, 1280×720, 640×480, 640×360)

Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264

Sub-stream: H.265 / H.264 / MJPEG

Third stream: H.265 / H.264

Video Bit Rate & Settings

32 Kbps to 16 Mbps

Bit Rate Control: CBR, VBR

H.264: Baseline/Main/High Profile | H.265: Main Profile

SVC (H.264/H.265) | ROI (1 fixed region for main stream)

Audio (-2U Model Only)

Mono sound

Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC

Bit Rate: 64 Kbps (G.711) / 16 Kbps (G.722.1/G.726) / 16-64 Kbps (AAC-LC) / 32-192 Kbps (MP2L2) / 8-320 Kbps (MP3)

Sampling Rate: 8 kHz / 16 kHz / 32 kHz / 48 kHz

Environment Noise Filtering: Supported

Network Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Network Integration

Simultaneous Live View: Up to 6 channels

API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Client: iVMS-4200, Hik-Connect, Hik-Central

Web Browser: Plug-in free live view/local service for Chrome 80+, Firefox 80+, Edge 89+

Security Management

Up to 32 users (Administrator, Operator, User levels)

Password protection, HTTPS encryption, 802.1X, Watermark, IP filter, TLS 1.1/1.2/1.3, Host auth (MAC address), Security audit log

Storage Infrastructure

NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

On-Board: Built-in microSD/microSDHC/microSDXC card slot up to 512 GB

Image Parameters

130 dB WDR, SNR ≥ 52 dB, EIS (Image Stabilization)

BLC, HLC, 3D DNR, Distortion Correction, Defog, 4 programmable polygon privacy masks

Image Parameter Switch & Rotate Mode Supported

Hardware Interfaces

1 RJ45 10M/100M self-adaptive Ethernet port

Built-in arrayed dual-microphone (-2U model)

Hardware Reset Key: Yes

Events & Linkage Actions

Basic: Motion detection (human & vehicle filtering), video tampering, exception

Smart: Scene change detection

Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording/capture, send email

Deep Learning Insights

Face Capture (Yes)

Perimeter Protection: Line crossing, intrusion, region entrance, region exiting (Human & vehicle target classification)

Power Specifications

12 VDC ± 25%, 0.7 A, max. 8.5 W (Ø5.5 mm coaxial plug, reverse polarity protection)

PoE: IEEE 802.3af, Class 3, max. 11 W

Physical Construction

Material: Metal cover and main body

Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")

Package Dimensions: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Weight: Approx. 750 g (1.7 lb.) | With Package: Approx. 1140 g (2.5 lb.)

Environmental Limits

Operating & Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% (non-condensing)

Regulatory & Protection

Protection Rating: IP67 (IEC 60529-2013)

Anti-Corrosion: NEMA 4X (NEMA 250-2018)

EMC: CE-EMC, RCM, IC, KC

Safety: UL, CB, CE-LVD

Environment: CE-RoHS

General Utilities

33 Languages, Heartbeat, mirror, flash log, email password reset, pixel counter, anti-banding

Description

8 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
HikAI-ISP for excellent noise reduction effect
24/7 colorful imaging via ColorVu technology
Scene-adaptive WDR
Focus on Person and Vehicle classification based on deep learning
Built-in arrayed dual-microphone for real-time high quality audio security
Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
Water and dust resistant (IP67)

Performance / Technology
The optical processing power of the DS-2CD2387G3-LI2UY ensures flawless evidence collection. The extreme 130dB True Wide Dynamic Range (WDR) prevents the image from washing out when the camera is placed in dark entryways looking out into bright sunlight. Simultaneously, the Hik AI deep-learning algorithms filter out irrelevant motion triggers (like swaying branches or heavy rain), ensuring your VMS or mobile app only alerts you to actual security events.

Design & Deployment Strategy
The turret-dome form factor is incredibly versatile. Because it lacks an overhanging "lip," it is highly resistant to spiders building webs across the lens—a common maintenance headache for commercial properties. Mount this camera under eaves, on porch ceilings, or along retail corridors where the ultra-wide 2.8mm lens can provide maximum area coverage without creating an obtrusive eyesore for guests or clients.

Why This Product Stands Out
The Hikvision DS-2CD2387G3-LI2UY stands out by solving three major enterprise security headaches at once: it removes the glass-glare flaw of traditional domes, it removes the false-alarm fatigue of basic motion detection, and it eliminates the rapid hardware failure caused by corrosive coastal environments. It is a true "install and forget" flagship surveillance tool.

Specification

Feature	Specification
Camera - Image Sensor	1/1.8" Progressive Scan CMOS
Camera - Max. Resolution	3840 × 2160 (4K / 8MP)
Camera - Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Camera - Shutter Time	1 s to 1/100,000 s
Camera - Day & Night	IR cut filter
Camera - Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Lens - Selection	Fixed focal lens, 2.8 mm and 4 mm optional
Lens - FOV (2.8 mm)	Horizontal FOV: 108.8°, Vertical FOV: 56.4°, Diagonal FOV: 134.3°
Lens Specs (2.8 mm)	Mount: M16 \| Iris Type: Fixed \| Aperture: F1.0 \| Depth of Field: 3.3 m to ∞
DORI (2.8 mm)	D (Detect): 89 m, O (Observe): 35 m, R (Recognize): 17 m, I (Identify): 8 m
Illuminator	Smart Supplement Light (White Light / IR) Range: Up to 30 m IR Wavelength: 850 nm
Video - Streams	Main (50Hz): 25 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720) Main (60Hz): 30 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720) Sub: 25 fps (50Hz) / 30 fps (60Hz) @ (1280×720, 640×480, 640×360) Third: 10 fps (50Hz/60Hz) @ (1920×1080, 1280×720, 640×480, 640×360)
Video Compression	Main stream: H.265+ / H.265 / H.264+ / H.264 Sub-stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264
Video Bit Rate & Settings	32 Kbps to 16 Mbps Bit Rate Control: CBR, VBR H.264: Baseline/Main/High Profile \| H.265: Main Profile SVC (H.264/H.265) \| ROI (1 fixed region for main stream)
Audio (-2U Model Only)	Mono sound Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC Bit Rate: 64 Kbps (G.711) / 16 Kbps (G.722.1/G.726) / 16-64 Kbps (AAC-LC) / 32-192 Kbps (MP2L2) / 8-320 Kbps (MP3) Sampling Rate: 8 kHz / 16 kHz / 32 kHz / 48 kHz Environment Noise Filtering: Supported
Network Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Network Integration	Simultaneous Live View: Up to 6 channels API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Client: iVMS-4200, Hik-Connect, Hik-Central Web Browser: Plug-in free live view/local service for Chrome 80+, Firefox 80+, Edge 89+
Security Management	Up to 32 users (Administrator, Operator, User levels) Password protection, HTTPS encryption, 802.1X, Watermark, IP filter, TLS 1.1/1.2/1.3, Host auth (MAC address), Security audit log
Storage Infrastructure	NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) On-Board: Built-in microSD/microSDHC/microSDXC card slot up to 512 GB
Image Parameters	130 dB WDR, SNR ≥ 52 dB, EIS (Image Stabilization) BLC, HLC, 3D DNR, Distortion Correction, Defog, 4 programmable polygon privacy masks Image Parameter Switch & Rotate Mode Supported
Hardware Interfaces	1 RJ45 10M/100M self-adaptive Ethernet port Built-in arrayed dual-microphone (-2U model) Hardware Reset Key: Yes
Events & Linkage Actions	Basic: Motion detection (human & vehicle filtering), video tampering, exception Smart: Scene change detection Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording/capture, send email
Deep Learning Insights	Face Capture (Yes) Perimeter Protection: Line crossing, intrusion, region entrance, region exiting (Human & vehicle target classification)
Power Specifications	12 VDC ± 25%, 0.7 A, max. 8.5 W (Ø5.5 mm coaxial plug, reverse polarity protection) PoE: IEEE 802.3af, Class 3, max. 11 W
Physical Construction	Material: Metal cover and main body Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") Package Dimensions: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") Weight: Approx. 750 g (1.7 lb.) \| With Package: Approx. 1140 g (2.5 lb.)
Environmental Limits	Operating & Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% (non-condensing)
Regulatory & Protection	Protection Rating: IP67 (IEC 60529-2013) Anti-Corrosion: NEMA 4X (NEMA 250-2018) EMC: CE-EMC, RCM, IC, KC Safety: UL, CB, CE-LVD Environment: CE-RoHS
General Utilities	33 Languages, Heartbeat, mirror, flash log, email password reset, pixel counter, anti-banding
