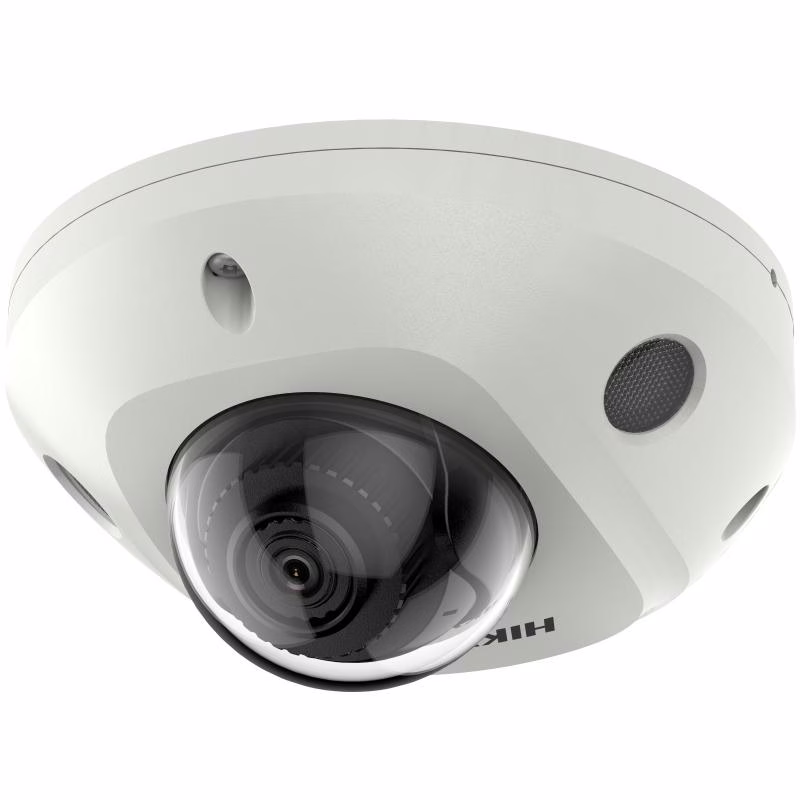

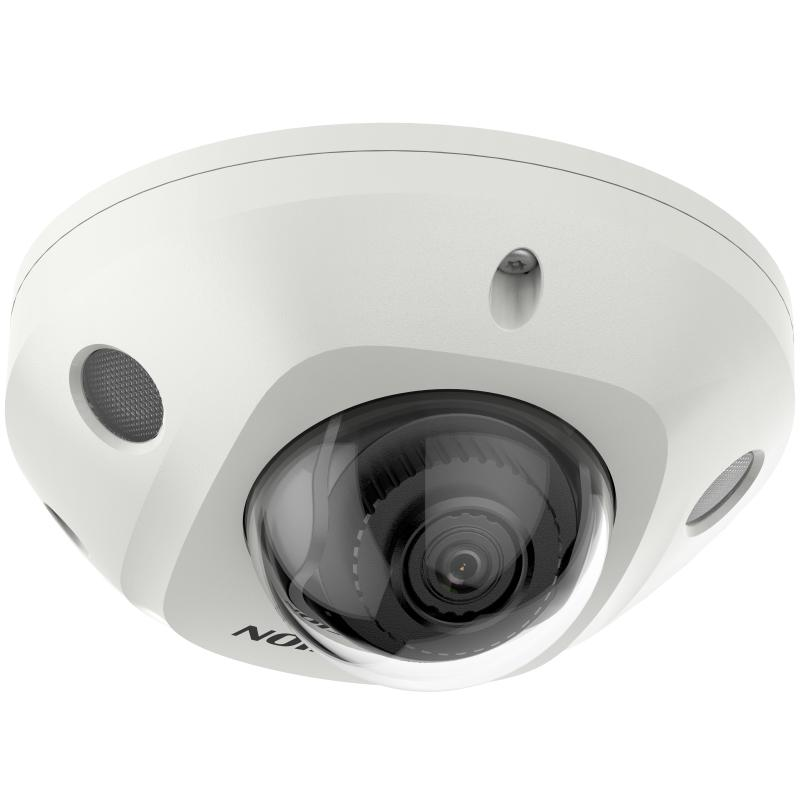

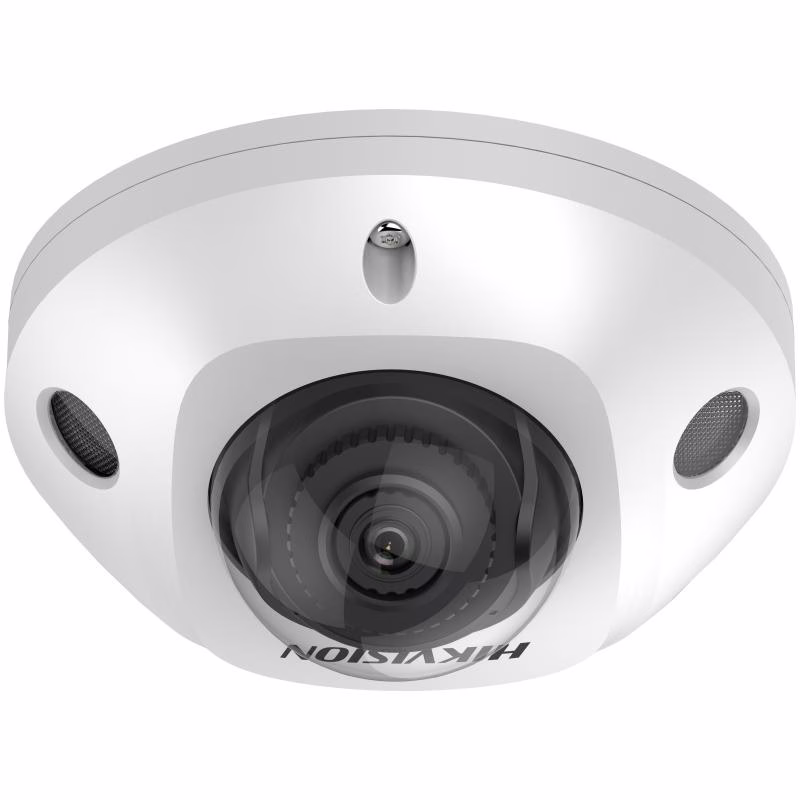

Hikvision DS-2CD2523G2-IS 2.8MM 2 MP AcuSense Built-in Mic Fixed Mini Dome Network Camera , H.265+, Water and dust resistant (IP67) and vandal resistant (IK08)
Model :
SKU : DS-2CD2523G2-IS 2.8MM
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision DS-2CD2523G2-IS 2.8MM 2 MP AcuSense Built-in Mic Fixed Mini Dome Network Camera with Mic, H.265+, Water and dust resistant (IP67) and vandal resistant (IK08)
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 ?? 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: -30?? to 30??, tilt: 0?? to 75??, rotate: 0?? to 360?? |
| Lens | Lens Type: Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV: 2.8 mm, horizontal FOV 108??, vertical FOV 59??, diagonal FOV 127?? 4 mm, horizontal FOV 86??, vertical FOV 47??, diagonal FOV 100?? |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth Of Field | 2.8 mm: 1 m to ??? 4 mm: 1.1 m to ??? |
| DORI | 2.8 mm: D: 42 m, O: 17 m, R: 8 m, I: 4 m 4 mm: D: 54 m, O: 21 m, R: 11 m, I: 5 m |
| Illuminator | Supplement Light Type: IR Supplement Light Range: Up to 30 m Smart Supplement Light: Yes IR Wavelength: 850 nm |
| Video | Main Stream: 50 Hz: 25 fps (1920 ?? 1080, 1280 ?? 720) 60 Hz: 30 fps (1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50 Hz: 25 fps (640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (640 ?? 480, 640 ?? 360) Third Stream: 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) *Third stream is supported under certain settings. Video Compression: Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile, Main Profile, High Profile H.265 Type: Main Profile Bit Rate Control: CBR, VBR Scalable Video Coding (SVC): H.264 and H.265 encoding Region Of Interest (ROI): 1 fixed region(s) for main stream and sub-stream |
| Audio | Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes |
| Network | Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets Simultaneous Live View: Up to 6 channels API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP User/Host: Up to 32 users 3 user levels: administrator, operator, and user Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) Client: iVMS-4200, Hik-Connect, Hik-Central Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | Image Parameters Switch: Yes Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser Day/Night Switch: Day, Night, Auto, Schedule Wide Dynamic Range (WDR): 120 dB SNR: ??? 52 dB Image Enhancement: BLC, HLC, 3D DNR Privacy Mask: Yes |
| Interface | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB Built-In Microphone: Yes Audio: -IS: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 K??, interface type: non-equilibrium 1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 ??, interface type: non-equilibrium |
| Alarm | -IS: 1 input, 1 output (max. 12 VDC, 30 mA) |
| Reset Key | Yes |
| Event | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Face detection Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output (-S), audible warning (-S) |
| General | Power: 12 VDC ?? 25%, 0.45 A, max. 5.5 W, ??5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W Material: Base: aluminum, cover: plastic Dimension: ??110 mm ?? 57.4 mm (??4.3" ?? 2.3") Package Dimension: 134 mm ?? 134 mm ?? 108 mm (5.3" ?? 5.3" ?? 4.3") Weight: Approx. 380 g (0.8 lb.) With Package Weight: Approx. 620 g (1.4 lb.) Storage Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Startup And Operating Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Language: 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function: Anti-flicker, heartbeat, password reset via email, pixel counter Approval: EMC: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 Protection: IP67: IEC 60529-2013; IK08: IEC 62262:2002 |
Specification
Hikvision DS-2CD2523G2-IS 2.8MM 2 MP AcuSense Built-in Mic Fixed Mini Dome Network Camera with Mic, H.265+, Water and dust resistant (IP67) and vandal resistant (IK08)
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 ?? 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: -30?? to 30??, tilt: 0?? to 75??, rotate: 0?? to 360?? |
| Lens | Lens Type: Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV: 2.8 mm, horizontal FOV 108??, vertical FOV 59??, diagonal FOV 127?? 4 mm, horizontal FOV 86??, vertical FOV 47??, diagonal FOV 100?? |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth Of Field | 2.8 mm: 1 m to ??? 4 mm: 1.1 m to ??? |
| DORI | 2.8 mm: D: 42 m, O: 17 m, R: 8 m, I: 4 m 4 mm: D: 54 m, O: 21 m, R: 11 m, I: 5 m |
| Illuminator | Supplement Light Type: IR Supplement Light Range: Up to 30 m Smart Supplement Light: Yes IR Wavelength: 850 nm |
| Video | Main Stream: 50 Hz: 25 fps (1920 ?? 1080, 1280 ?? 720) 60 Hz: 30 fps (1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50 Hz: 25 fps (640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (640 ?? 480, 640 ?? 360) Third Stream: 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) *Third stream is supported under certain settings. Video Compression: Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile, Main Profile, High Profile H.265 Type: Main Profile Bit Rate Control: CBR, VBR Scalable Video Coding (SVC): H.264 and H.265 encoding Region Of Interest (ROI): 1 fixed region(s) for main stream and sub-stream |
| Audio | Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes |
| Network | Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets Simultaneous Live View: Up to 6 channels API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP User/Host: Up to 32 users 3 user levels: administrator, operator, and user Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) Client: iVMS-4200, Hik-Connect, Hik-Central Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | Image Parameters Switch: Yes Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser Day/Night Switch: Day, Night, Auto, Schedule Wide Dynamic Range (WDR): 120 dB SNR: ??? 52 dB Image Enhancement: BLC, HLC, 3D DNR Privacy Mask: Yes |
| Interface | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB Built-In Microphone: Yes Audio: -IS: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 K??, interface type: non-equilibrium 1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 ??, interface type: non-equilibrium |
| Alarm | -IS: 1 input, 1 output (max. 12 VDC, 30 mA) |
| Reset Key | Yes |
| Event | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Face detection Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output (-S), audible warning (-S) |
| General | Power: 12 VDC ?? 25%, 0.45 A, max. 5.5 W, ??5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W Material: Base: aluminum, cover: plastic Dimension: ??110 mm ?? 57.4 mm (??4.3" ?? 2.3") Package Dimension: 134 mm ?? 134 mm ?? 108 mm (5.3" ?? 5.3" ?? 4.3") Weight: Approx. 380 g (0.8 lb.) With Package Weight: Approx. 620 g (1.4 lb.) Storage Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Startup And Operating Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Language: 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function: Anti-flicker, heartbeat, password reset via email, pixel counter Approval: EMC: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 Protection: IP67: IEC 60529-2013; IK08: IEC 62262:2002 |
