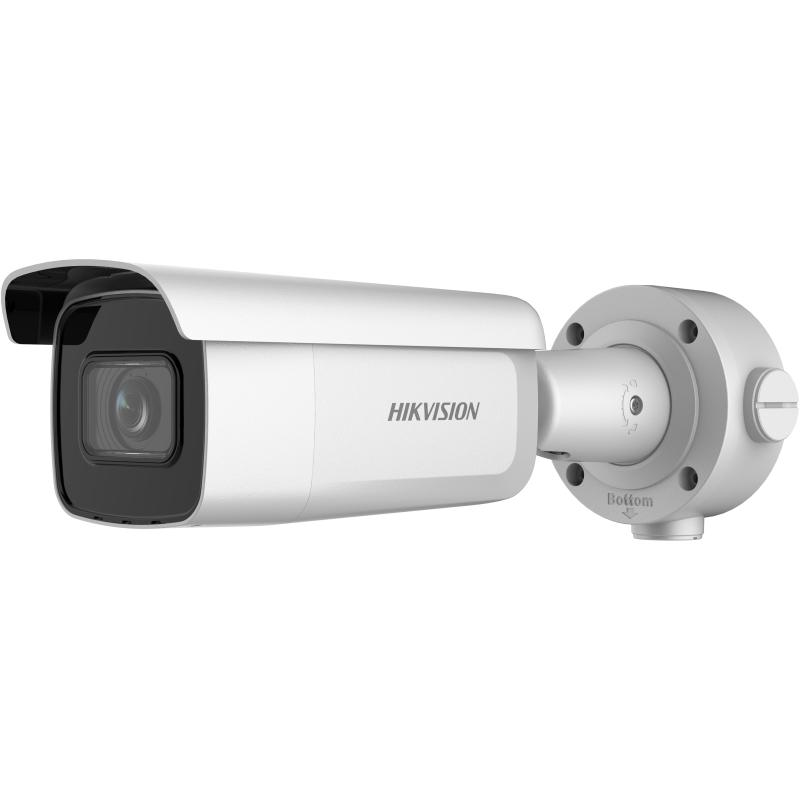

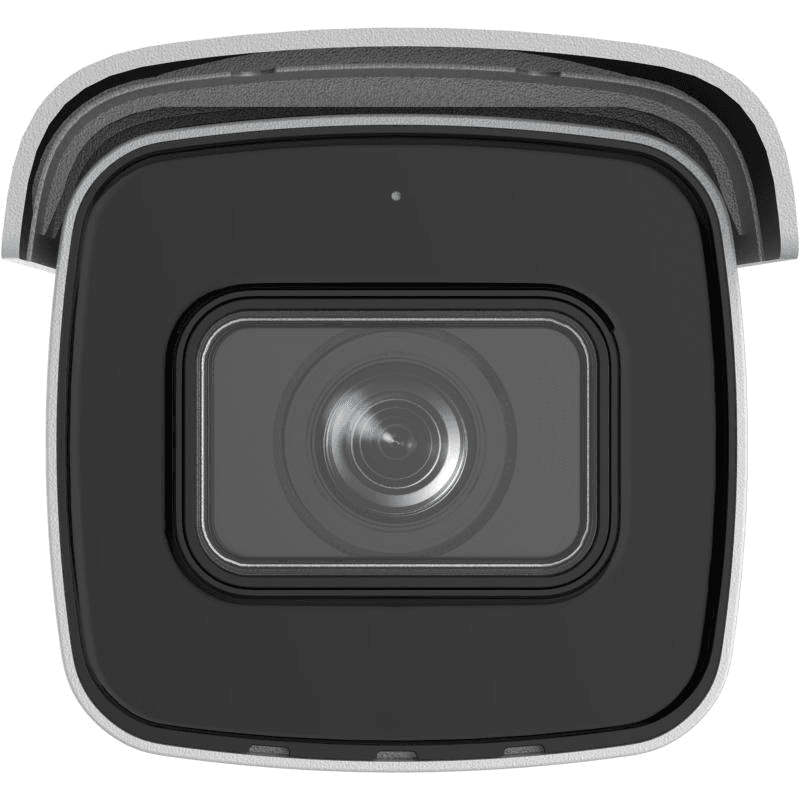

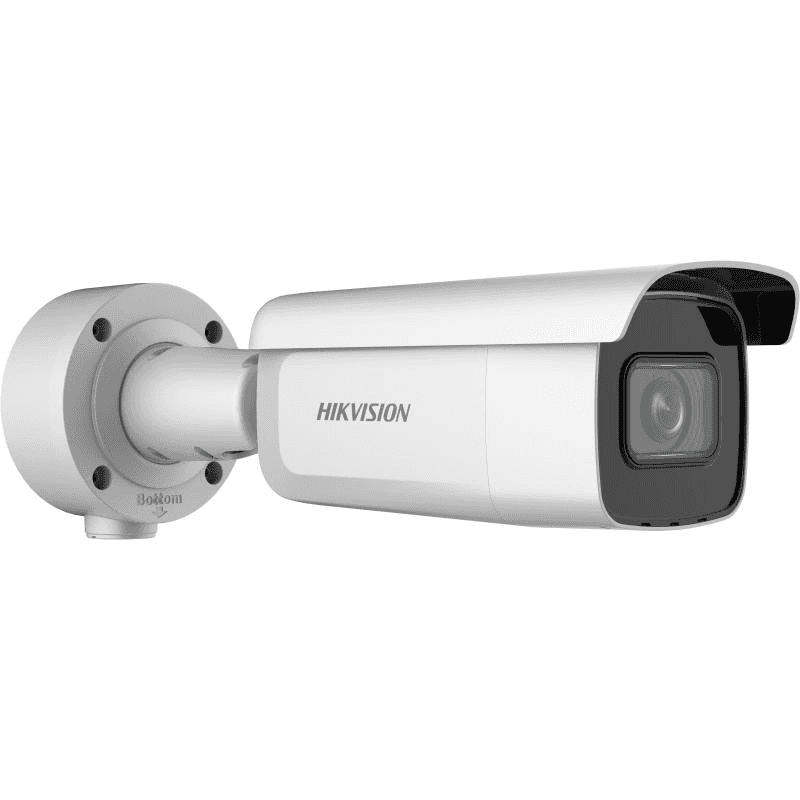

Hikvision DS-2CD3643G2-IZS(UHK) 4 MP AcuSense Motorized Varifocal Bullet Network Camera, Audio and alarm interface available, H.265+, 120 dB true WDR technology, IP67 & IK10, Junction box included in the package
Model :
SKU : DS-2CD3643G2-IZSUHK
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Monitor Specifications table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
Hikvision DS-2CD3643G2-IZS(UHK) 4 MP AcuSense Motorized Varifocal Bullet Network Camera, Audio and alarm interface available, H.265+, 120 dB true WDR technology, IP67 & IK10, Junction box included in the package
| Feature | Details |
|---|---|
| Image Sensor | 1/3??? Progressive Scan CMOS |
| Max. Resolution | 2688 ?? 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| P/N | P/N |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 355??, tilt: 0?? to 90??, rotate: 0?? to 360?? |
| Lens | Varifocal lens, motorized lens, 2.7 to 13.5 mm |
| Iris Type | Auto-iris |
| Lens Type & FOV | 2.7 to 13.5 mm, horizontal FOV 102?? to 31??, vertical FOV 55?? to 18??, diagonal FOV 122?? to 36?? |
| Aperture | F1.6 |
| Lens Mount | ??14 |
| DORI | 2.7 to 13.5 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m |
| Illuminator | Smart Supplement Light |
| IR Range | Up to 60 m |
| Wavelength | 850 nm |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.265 and H.264 support |
| Region of Interest (ROI) | 5 fixed regions for main stream and sub-stream |
| Audio | Environment Noise Filtering: Yes Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC Audio Bit Rate: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3) |
| Network | Simultaneous Live View: Up to 6 channels Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP v2c/v3 User/Host: Up to 32 users. 3 user levels: administrator, operator, and user Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Client: iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | SNR ??? 52 dB Day/Night Switch: Day, Night, Auto, Schedule Image Enhancement: BLC, HLC, 3D DNR, Target cropping Image Parameters Switch: Yes Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Interface | Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 vpp, input impedance: 4.7 K??, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 ??, interface type: non-equilibrium Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) On-board Storage: Built-in micro SD card slot, up to 256 GB Hardware Reset: Yes Communication Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event | Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output |
| General | Power: 12 VDC ?? 25%,1.08 A, max. 13 W, ??5.5 mm coaxial power plug PoE: (802.3at, Class 4, 42.5 V to 57 V ), 0.36 A to 0.27 A, max. 15 W Firmware Version: 5.5.115 Web Client Language: 33 languages (English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian) General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter Software Reset: Yes Storage Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Startup and Operating Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Material: Aluminum alloy body Camera Dimension: ??105.1 mm ?? 348.5 mm (??4.1" ?? 13.7") Package Dimension: 385 mm ?? 190 mm ?? 180 mm (15.2" ?? 7.5" ?? 7.1") Camera Weight: Approx. 1390 g (3 lb.) With Package Weight: Approx. 2236 g (4.9 lb.) Approval: EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection: IP67 (IEC 60529-2013); IK10 (IEC 62262: 2002) |
Specification
Monitor Specifications table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
Hikvision DS-2CD3643G2-IZS(UHK) 4 MP AcuSense Motorized Varifocal Bullet Network Camera, Audio and alarm interface available, H.265+, 120 dB true WDR technology, IP67 & IK10, Junction box included in the package
| Feature | Details |
|---|---|
| Image Sensor | 1/3??? Progressive Scan CMOS |
| Max. Resolution | 2688 ?? 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| P/N | P/N |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 355??, tilt: 0?? to 90??, rotate: 0?? to 360?? |
| Lens | Varifocal lens, motorized lens, 2.7 to 13.5 mm |
| Iris Type | Auto-iris |
| Lens Type & FOV | 2.7 to 13.5 mm, horizontal FOV 102?? to 31??, vertical FOV 55?? to 18??, diagonal FOV 122?? to 36?? |
| Aperture | F1.6 |
| Lens Mount | ??14 |
| DORI | 2.7 to 13.5 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m |
| Illuminator | Smart Supplement Light |
| IR Range | Up to 60 m |
| Wavelength | 850 nm |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.265 and H.264 support |
| Region of Interest (ROI) | 5 fixed regions for main stream and sub-stream |
| Audio | Environment Noise Filtering: Yes Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC Audio Bit Rate: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3) |
| Network | Simultaneous Live View: Up to 6 channels Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP v2c/v3 User/Host: Up to 32 users. 3 user levels: administrator, operator, and user Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Client: iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | SNR ??? 52 dB Day/Night Switch: Day, Night, Auto, Schedule Image Enhancement: BLC, HLC, 3D DNR, Target cropping Image Parameters Switch: Yes Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Interface | Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 vpp, input impedance: 4.7 K??, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 ??, interface type: non-equilibrium Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) On-board Storage: Built-in micro SD card slot, up to 256 GB Hardware Reset: Yes Communication Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event | Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output |
| General | Power: 12 VDC ?? 25%,1.08 A, max. 13 W, ??5.5 mm coaxial power plug PoE: (802.3at, Class 4, 42.5 V to 57 V ), 0.36 A to 0.27 A, max. 15 W Firmware Version: 5.5.115 Web Client Language: 33 languages (English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian) General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter Software Reset: Yes Storage Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Startup and Operating Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Material: Aluminum alloy body Camera Dimension: ??105.1 mm ?? 348.5 mm (??4.1" ?? 13.7") Package Dimension: 385 mm ?? 190 mm ?? 180 mm (15.2" ?? 7.5" ?? 7.1") Camera Weight: Approx. 1390 g (3 lb.) With Package Weight: Approx. 2236 g (4.9 lb.) Approval: EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection: IP67 (IEC 60529-2013); IK10 (IEC 62262: 2002) |
