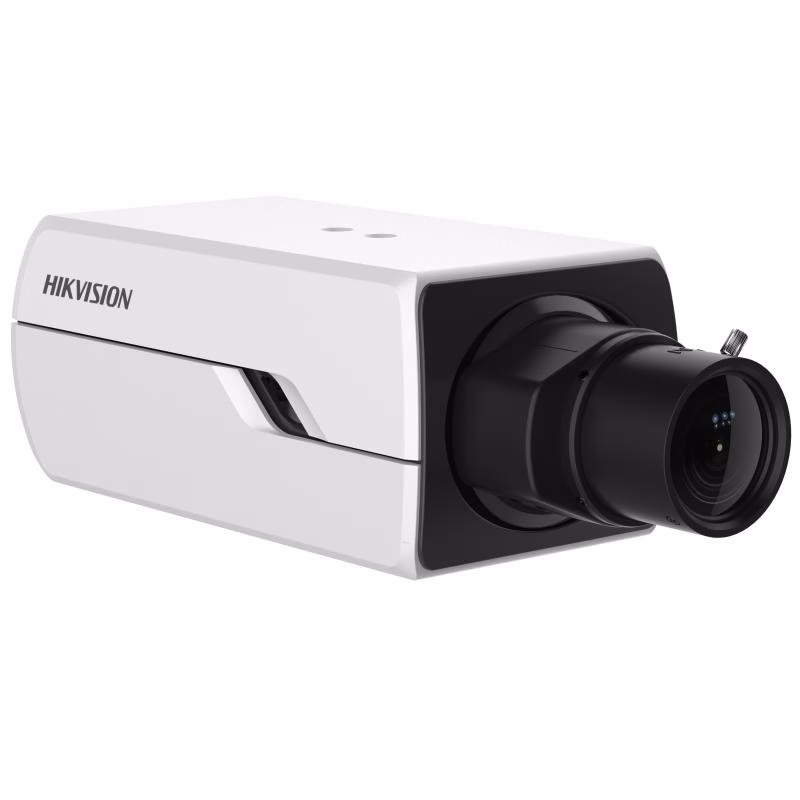

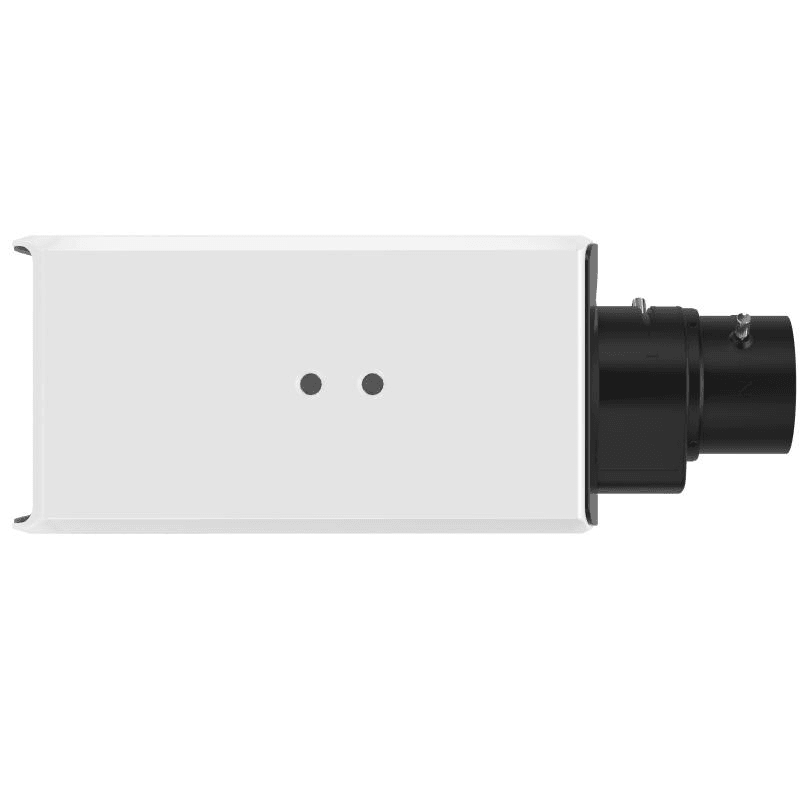

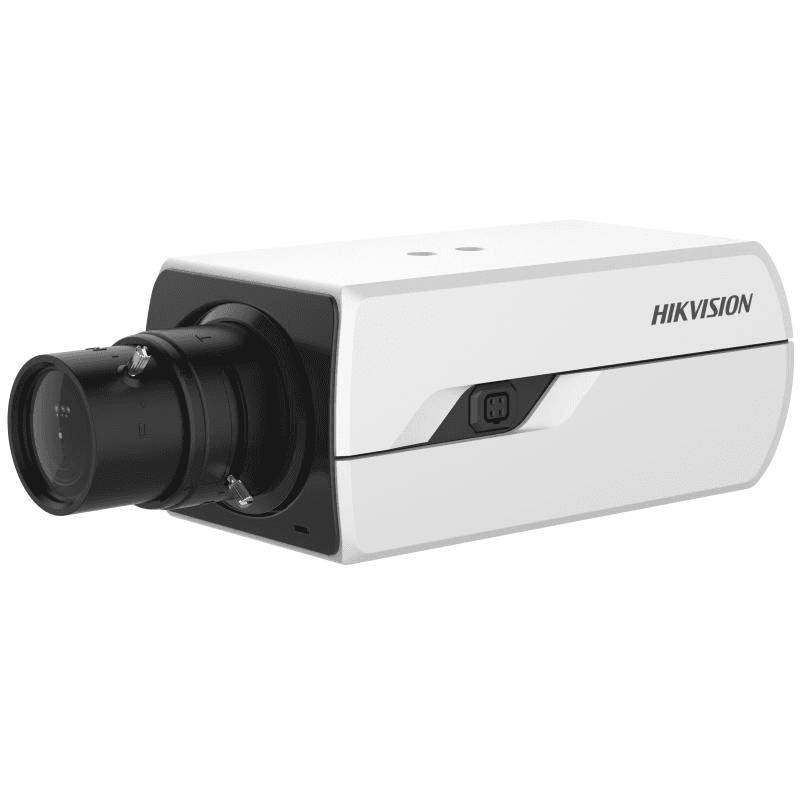

Hikvision DS-2CD3843G0-AP 4MP Indoor Box Network Camera

Model :

SKU : DS-2CD3843G0-AP

About this item

High-quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 120 dB true WDR technology
Audio and alarm interface available
RS485 interface available

dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

stock : 1

About this item

Description

table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }

CameraImage Sensor
1/3" Progressive Scan CMOS
Max. Resolution2560 ?? 1440
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON)
Shutter Speed1/3 s to 1/100,000 s
Day & NightIR cut filter
LensLens Mount
C/CS mount
Iris TypeDC drive; P-iris (depending on lens type)
VideoMain Stream
50 Hz: 20 fps (2560 ?? 1440)
25 fps (1920 ?? 1080, 1280 ?? 720)
60 Hz: 20 fps (2560 ?? 1440)
30 fps (1920 ?? 1080, 1280 ?? 720)
AudioAudio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate64 Kbps(G.711 ulaw/G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to160 Kbps(MP2L2)/16 to 64 Kbps(AAC)
AudioAudio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate64 Kbps(G.711 ulaw/G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to160 Kbps(MP2L2)/16 to 64 Kbps(AAC)
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes
NetworkProtocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP???, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator, and user
Network StorageAuto network replenishment (ANR)
ClientiVMS-4200, Hik-Connect
Web BrowserPlug-in required live view: IE 10+
 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
 Local service: Chrome 57.0+, Firefox 52.0+
ImageImage Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
 Day/Night Switch
Day, Night, Auto, Schedule
 Wide Dynamic Range (WDR)
120 dB
 Image Enhancement
BLC, 3D DNR
InterfaceEthernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
 On-Board Storage
Built-in memory card slot, support microSD card, up to 256 GB
Audio1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 K??, interface type: non-equilibrium;
 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 ??, interface type: non-equilibrium.
Alarm1 alarm in, 1 alarm out, (max. 24 VAC/24 VDC, 500 mA)
RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
Power Output12 VDC, max. 100 mA
EventBasic Event
Motion detection, video tampering alarm, exception
Smart EventLine crossing detection, intrusion detection
LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output
GeneralPower
12 VDC ?? 25%, 0.58 A, max. 7 W, two-core terminal block, reverse polarity protection,
 24 VAC ?? 20%, 0.49 A, max. 7 W, two-core terminal block
 PoE: 802.3af, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
Camera MaterialMetal
Camera Dimension69.8 mm ?? 58 mm ?? 137 mm (2.7" ?? 2.3" ?? 5.4")
Package Dimension315 mm ?? 140 mm ?? 140 mm (12.4" ?? 5.5" ?? 5.5")
Camera WeightApprox. 585 g (1.3 lb.)
With Package WeightApprox. 947 g (2.1 lb.)
Storage Conditions-30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing)
Web Client LanguageEnglish, Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
ApprovalEMC
FCC (47 CFR Part 15, Subpart B)
 CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
Safety
CB		IEC 62368-1: 2014+A11)
 CE-LVD (EN 62368-1: 2014/A11: 2017)
 BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
EnvironmentCE-RoHS (2011/65/EU)
