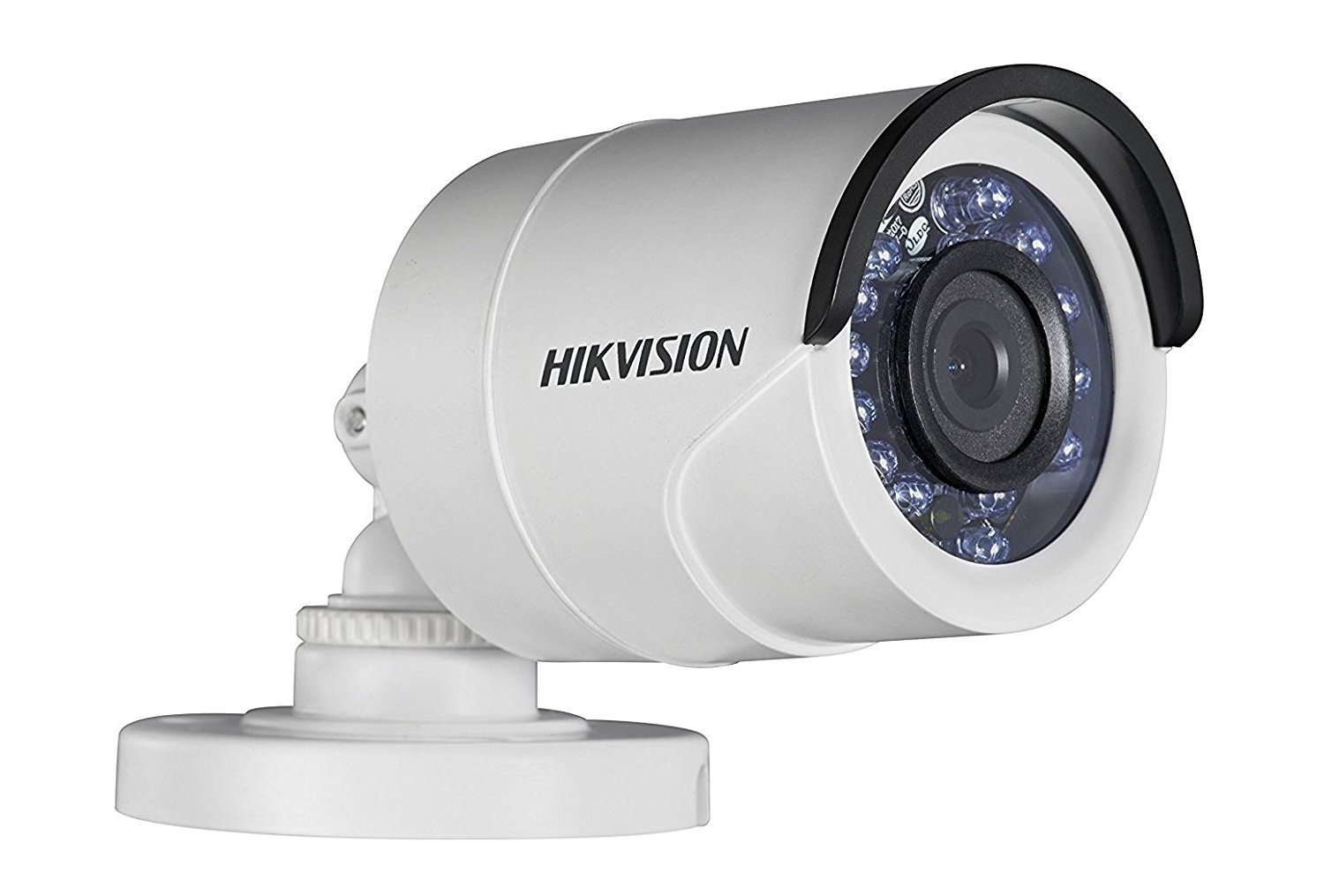

HIKVISION, DS-2CE16D0T-IRPF 2 MP FIXED MINI BULLET CAMERA

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) ?? 1080 (V)
Min. Illumination0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360??, Tilt: 0 to 90??, Rotation: 0 to 360??
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV2.8 mm, horizontal FOV: 101??, vertical FOV: 60??, diagonal FOV: 122??

3.6 mm, horizontal FOV: 79.6??, vertical FOV: 43.5??, diagonal FOV: 93.7??

6 mm, horizontal FOV: 51.9??, vertical FOV: 30??, diagonal FOV: 58.8??
Lens MountM12

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Smart IR
Frame RateTVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC
White BalanceAuto/Manual
AGCYes

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
MaterialPlastic
Dimension?? 70 mm ?? 137.8 mm (?? 2.76" ?? 5.43")
WeightApprox. 150 g (0.33 lb.)
Operating Condition???-40 ??C to 60 ??C (-40 ??F to 140 ??F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ?? 25%
ConsumptionMax. 2.2 W
IR RangeUp to 20 m

Approval
ProtectionIP67
