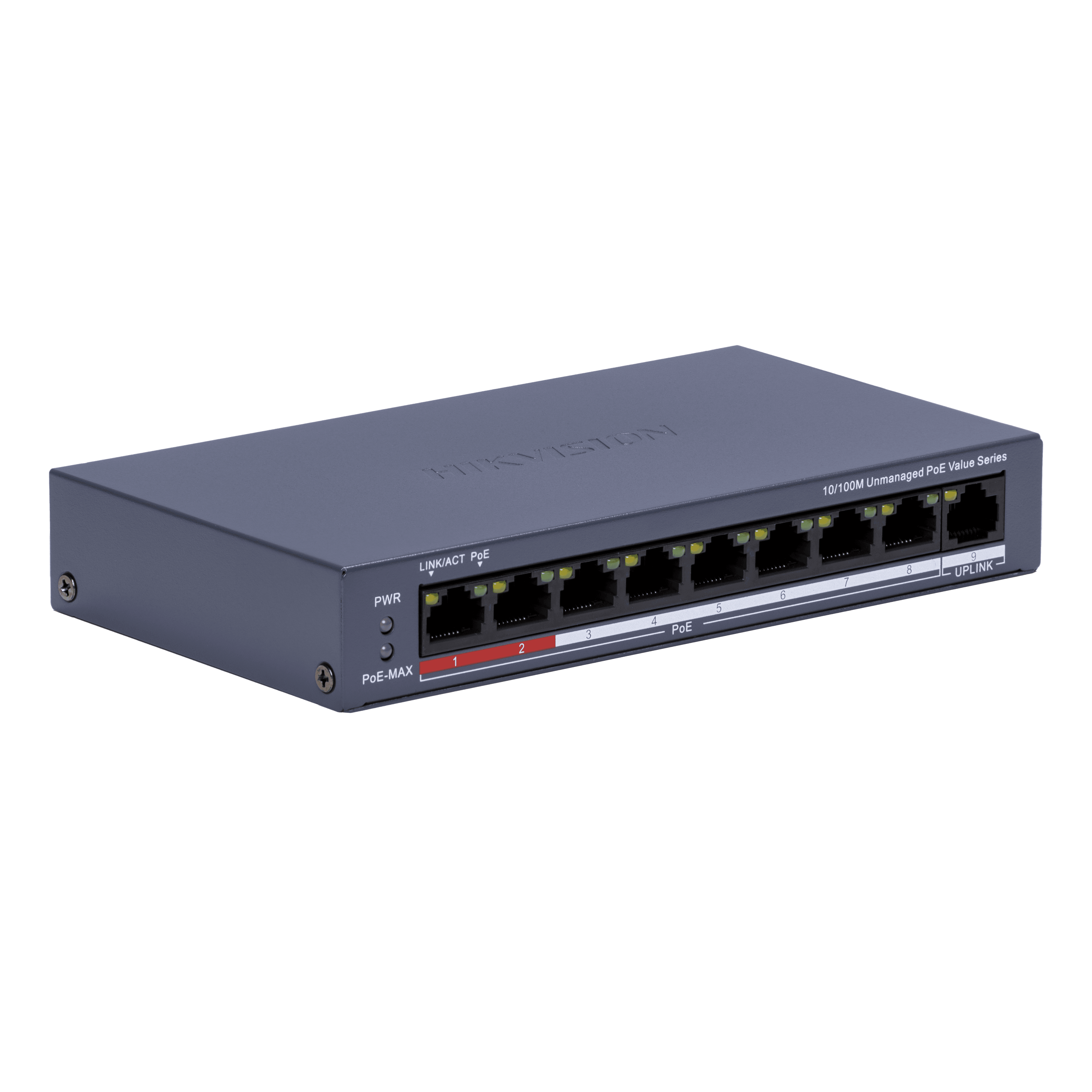

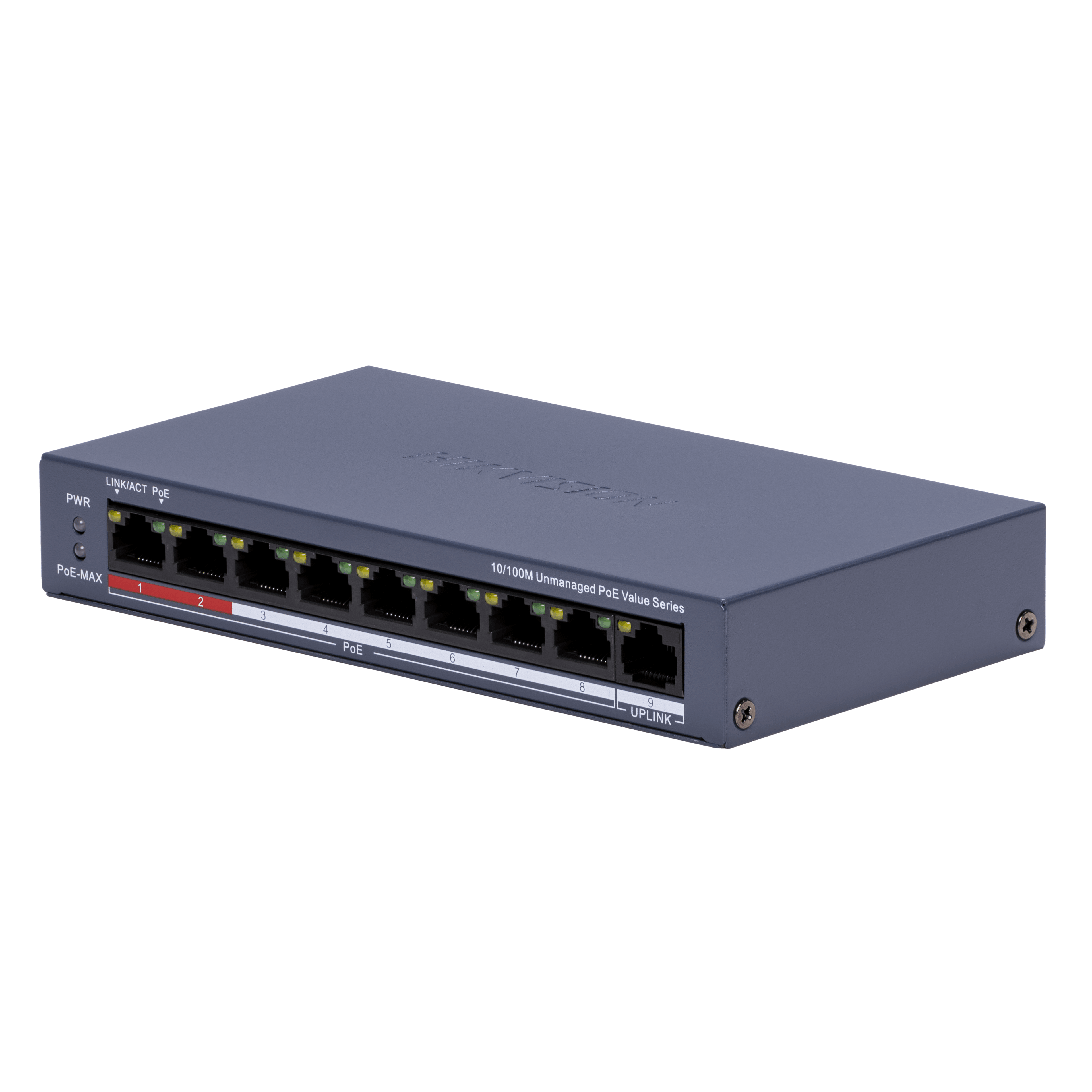

Hikvision DS-3E0109P-E/M(C) 8 Port Fast Ethernet Unmanaged POE Switch, Up to 300 m Long Range PoE Transmission
Model :
SKU : NS-HIK DS-3E0109P-E/M(C)
About this item
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. An 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Description
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
Specification
General
| Shell | Metal material |
| Net Weight | 0.35 kg (0.77 lb) |
| Gross Weight | 0.89 kg (1.96 lb) |
| Dimensions (W × H × D) | 170 mm × 27.6 mm × 93.1 mm (6.7'' × 1.1'' × 3.7'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 54VDC, 1.6A |
| Max. Power Consumption | 86 W |
| Power Consumption in Idle | 6 W |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Surge Protection | 6 kV |
Network Parameters
| Ports | 8 x 10/100 Mbps PoE port, 1 × 10/100 Mbps RJ45 port |
| MAC Address Table | 2 K |
| Switching Capacity | 1.8 Gbps |
| Packet Forwarding Rate | 1.34 Mpps |
| Internal Cache | 1 Mbits |
PoE Power Supply
| PoE Standard | IEEE 802.3af; IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 8 |
| Max. Port Power | 30 W |
| PoE Power Budget | 80 W |
Dialing Function
| Long Range | Ports 1 to 8: up to 300 m. Long range performance may vary depending on camera model or cable condition. |
Approval
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017), UL (UL 60950-1) |
| Chemistry | CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006) |
