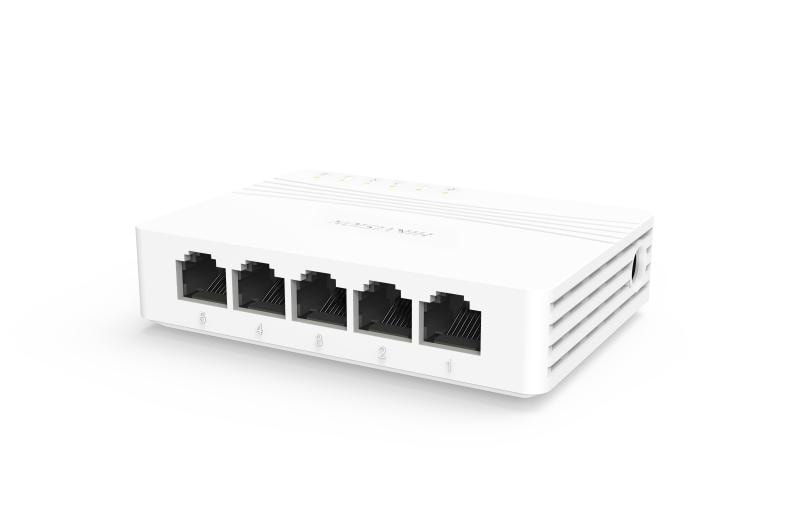

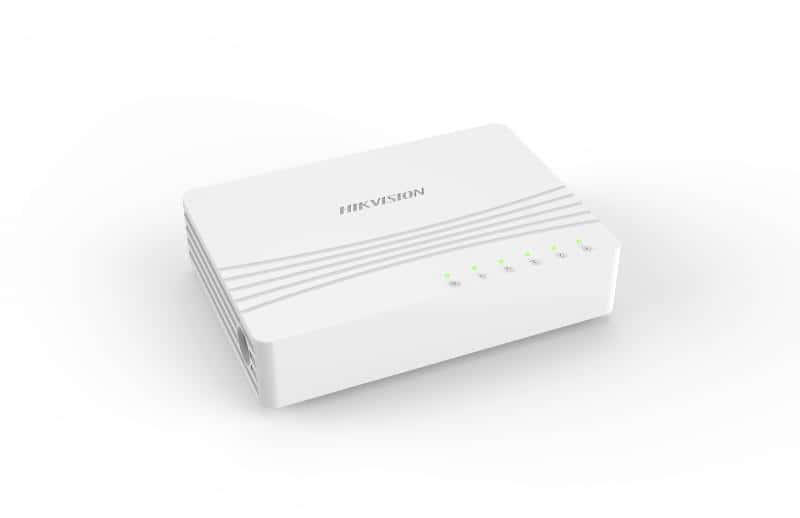

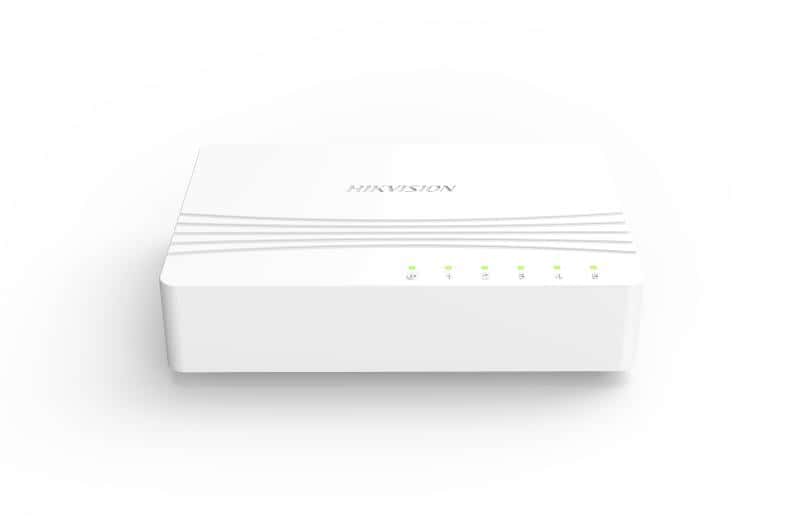

Hikvision DS-3E0505D-E 5 Port Gigabit Unmanaged Desktop Switch, 5 x 10/100/1000 Mbps Ethernet Ports
Model :
SKU : NS-HIK DS-3E0505D-E GIGA
About this item
- 5 x 10/100/1000 Mbps ethernet ports
- Supports ADI/ADIX
- Store-and-forward switching
- Supports MAC address auto-learning and aging
- Simple, compact body design
- Supports desktop and wall-mounting
- Plug & play, easy to use.
Description
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
Specification
5-Port Gigabit Desktop Switch Specifications
General
| Dimensions (W × H × D) | 92.80 mm × 65.80 mm × 22.80 mm (3.65'' × 2.60'' × 0.90'') |
| Shell | ABS |
| Net Weight | 0.03 kg (0.07 lb) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 10%~90% RH non-condensing |
| Storage Temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
| Storage Humidity | 5%~90% RH non-condensing |
| Power Supply | 5 V DC, 0.6 A |
Network Parameters
| Ports | 5 |
| Port Type | 10/100/1000 Mbps RJ45 ports |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Forwarding Mode | Store-and-forward switching |
| MAC Address Table | 2 K |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
