Model :

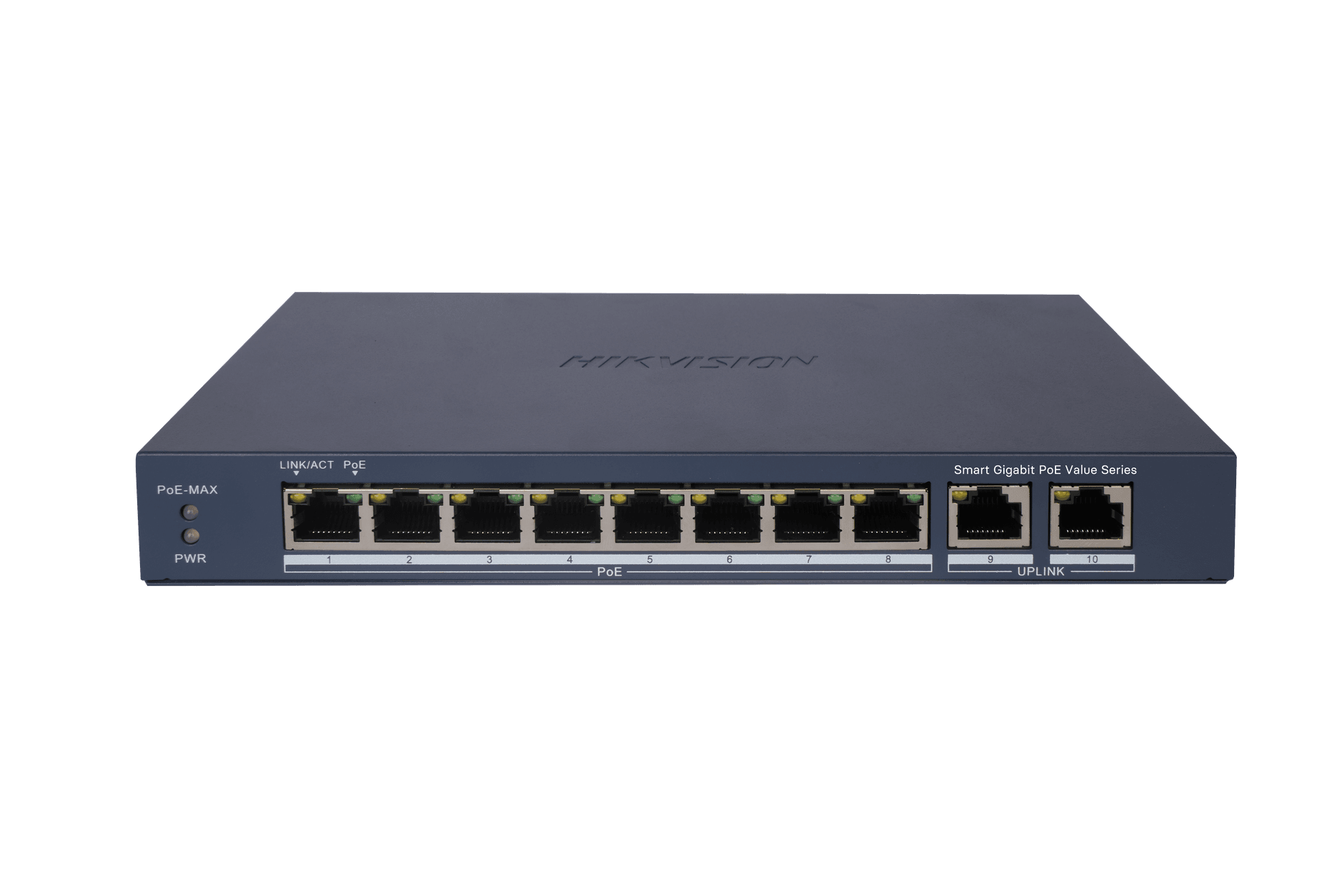

SKU : NS-HIK DS-3E1510P-EI/M
| Shell Material | Metal |
| Net Weight | 0.54 kg (1.19 lb) |
| Gross Weight | 1.08 kg (2.38 lb) |
| Dimensions (W × H × D) | 217.6 mm × 27.6 mm × 108.5 mm (8.57" × 1.09" × 4.27") |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Power Supply | 54VDC, 1.2A |
| Installation Mode | Desk-mounted, Wall-mounted |
| Maximum Power Consumption | 65 W |
| Idle Power Consumption | 2.5 W |
| Surge Protection | 6 KV |
| Ports | 8 × Gigabit PoE ports 2 × Gigabit RJ45 uplink ports |
| MAC Address Table | 4K |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Internal Cache | 1.5 Mbits |
| Long Range Mode | Ports 1–8 support transmission distance up to 300 m. Actual performance depends on cable quality and camera model. |
| Port Isolation | Ports 1–8 support isolation mode for improved network security. Ports within the isolation group cannot communicate with each other but can communicate with uplink ports. |
| PoE Watchdog | Automatically detects and restarts unresponsive cameras on ports 1–8. |
| Link Aggregation | Supports static link aggregation. Supports up to 3 aggregation groups. |
| Loop Prevention | Supports 802.1D STP Supports 802.1w RSTP Disabled by default |
| VLAN Support | Supports IEEE 802.1Q VLAN Configurable VLAN IDs: 1–4094 Supports Trunk and Access modes Maximum 32 VLANs |
| HPP (Hik-Partner Pro) | Supports one-click activation and remote management via Hik-Partner Pro. Functions include: • Port speed display • Port bandwidth monitoring • PoE power usage monitoring • Network topology display • Alarm status monitoring • Remote port/device restart • Long-range mode configuration • Remote firmware upgrade |
| System Maintenance | Supports Web management Supports DHCP Client Supports Super IP (10.180.190.200) direct access Supports Hik-Central Pro management Supports Hik-Partner Pro remote management Supports cable detection (open/short circuit and cable length) Supports LLDP (802.1ab) Supports port mirroring |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) |
| PoE Ports | Ports 1–8 |
| Maximum Power per Port | 30 W |
| Total PoE Power Budget | 60 W |
| EMC Certification | CE-EMC EN 55032:2015+A11:2020 EN IEC 61000-3-2:2019 EN 61000-3-3:2013+A1:2019 EN 50130-4:2011+A1:2014 EN 55035:2017+A11:2020 |
| Safety Certification | CB IEC 62368-1:2014 CE-LVD EN 62368-1:2014+A11:2017 |
| Environmental Compliance | REACH (EC No.1907/2006) WEEE (2012/19/EU) CE-RoHS (2011/65/EU) |
