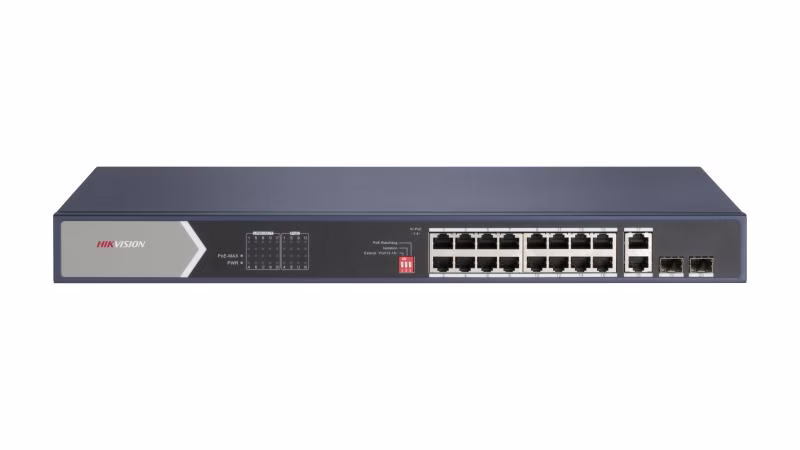

Hikvision DS-3E0520HP-E 16 Port Gigabit Unmanaged POE Switch, 12x Gigabit PoE port, 4x Gigabit Hi-PoE port, 2x Gigabit RJ45 port, 2x Gigabit fiber optical port

Model :

SKU : NS-HIKVISION DS-3E0520HP

About this item

Description

Hikvision DS-3E0520HP-E 16 Port Gigabit Unmanaged POE Switch, 12x Gigabit PoE port, 4x Gigabit Hi-PoE port, 2x Gigabit RJ45 port, 2x Gigabit fiber optical port

Shell	Metal material
Net Weight	2.79 kg (6.15 lb)
Gross Weight	3.60 kg (7.94 lb)
Dimensions (W ?? H ?? D)	440.0 mm ?? 44.0 mm ?? 220.8 mm (17.3'' ?? 1.7'' ?? 8.7'')
Operating Temperature	0 ??C to 45 ??C (32 ??F to 113 ??F)
Storage Temperature	-40 ??C to 85 ??C (-40 ??F to 185 ??F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	100~240 VAC, 50/60 Hz, Max. 4 A
Max. Power Consumption	250 W
Power Consumption in Idle	25 W
Installation Mode	Rack (equipped with mounting ears)
Surge Protection	6 KV

Network Parameters

Ports	16 ?? Gigabit PoE port, 2 ?? Gigabit RJ45 port, 2 ?? Gigabit fiber optical port
MAC Address Table	8 K
Switching Capacity	40 Gbps
Packet Forwarding Rate	29.76 Mpps
Internal Cache	4.10 Mbits

PoE Power Supply

PoE Standard	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
PoE Power Pin	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port	Hi-PoE: Ports 1 to 4 PoE: Ports 5 to 16
Max. Port Power	90 W
PoE Power Budget	225 W

Dialing Function

Long Range	Ports 13 to 16: up to 300 m Long range performance may vary depending on camera model or cable condition.
Port Isolation	Ports 1 to 16: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 16: auto detect and restart the cameras that do not respond.

Approval

EMC	FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) IC (ICES-003: Issue 7:2020) RCM (AS/NZS CISPR 32: 2015)
Safety	UL (UL 60950-1) CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)) CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU)

Specification

Hikvision DS-3E0520HP-E 16 Port Gigabit Unmanaged POE Switch, 12x Gigabit PoE port, 4x Gigabit Hi-PoE port, 2x Gigabit RJ45 port, 2x Gigabit fiber optical port

Shell	Metal material
Net Weight	2.79 kg (6.15 lb)
Gross Weight	3.60 kg (7.94 lb)
Dimensions (W ?? H ?? D)	440.0 mm ?? 44.0 mm ?? 220.8 mm (17.3'' ?? 1.7'' ?? 8.7'')
Operating Temperature	0 ??C to 45 ??C (32 ??F to 113 ??F)
Storage Temperature	-40 ??C to 85 ??C (-40 ??F to 185 ??F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	100~240 VAC, 50/60 Hz, Max. 4 A
Max. Power Consumption	250 W
Power Consumption in Idle	25 W
Installation Mode	Rack (equipped with mounting ears)
Surge Protection	6 KV

Network Parameters

Ports	16 ?? Gigabit PoE port, 2 ?? Gigabit RJ45 port, 2 ?? Gigabit fiber optical port
MAC Address Table	8 K
Switching Capacity	40 Gbps
Packet Forwarding Rate	29.76 Mpps
Internal Cache	4.10 Mbits

PoE Power Supply

PoE Standard	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
PoE Power Pin	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port	Hi-PoE: Ports 1 to 4 PoE: Ports 5 to 16
Max. Port Power	90 W
PoE Power Budget	225 W

Dialing Function

Long Range	Ports 13 to 16: up to 300 m Long range performance may vary depending on camera model or cable condition.
Port Isolation	Ports 1 to 16: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 16: auto detect and restart the cameras that do not respond.

Approval

EMC	FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) IC (ICES-003: Issue 7:2020) RCM (AS/NZS CISPR 32: 2015)
Safety	UL (UL 60950-1) CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)) CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU)

599.00

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

AED 599.00
