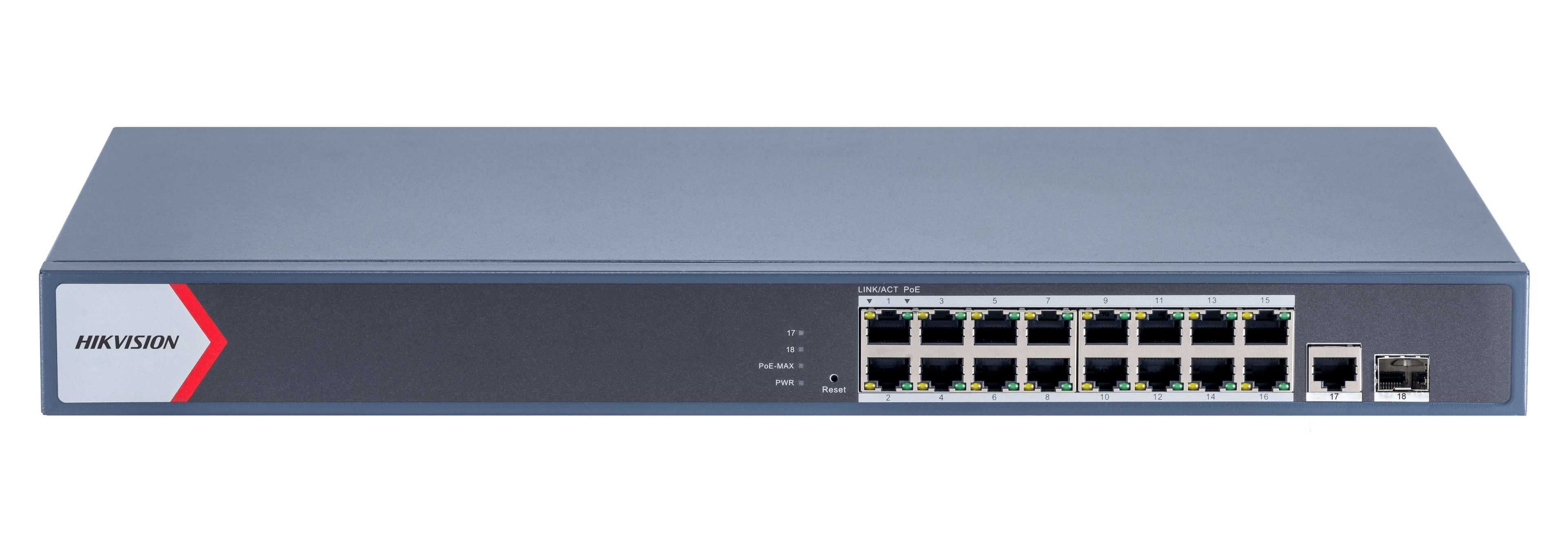

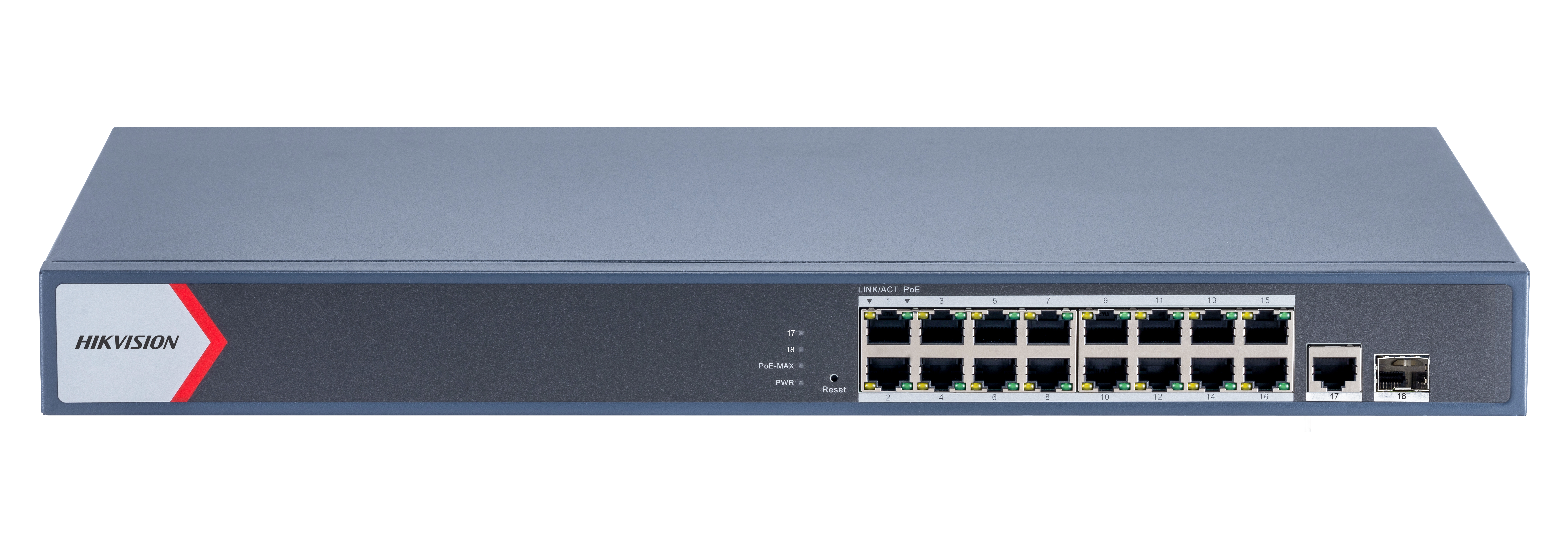

Hikvision DS-3E1518P-EI 16 Port Gigabit Smart POE Switch, 16x gigabit PoE RJ45 ports, 1x gigabit RJ45 port, 1x gigabit fiber optical port
Model :
SKU : NS-HIK DS-3E1518P-EI
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
Specification
| General | Shell: Metal material Net Weight: 2.85 kg (6.28 lb) Gross Weight: 3.05 kg (6.72 lb) Dimensions (W × H × D): 440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'') Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) Operating Humidity: 5% to 95% (no condensation) Relative Humidity: 5% to 95% (no condensation) Power Supply: 100~240 V AC, 50/60 Hz, Max. 4 A Installation Mode: Rack (equipped with mounting ears) Max. Power Consumption: 250 W Power Consumption in Idle: 20 W Surge Protection: 6 KV |
| Network Parameters | Ports: 16 × Gigabit PoE ports, 1 × Gigabit RJ45 port, 1 × Gigabit fiber optical port MAC Address Table: 8 K Switching Capacity: 56 Gbps Packet Forwarding Rate: 41.66 Mpps Internal Cache: 4.1 Mbits |
| PoE Power Supply | PoE Standard: IEEE 802.3af, IEEE 802.3at PoE Power Pin: 8-pin power — 1/2(-), 3/6(+), 4/5(+), 7/8(-) PoE Port: Ports 1 to 16 Max. Port Power: 30 W PoE Power Budget: 230 W |
| Software Function | Long Range: Ports 1 to 16 — up to 300 m (performance may vary depending on camera model or cable condition). Port Isolation: Ports 1 to 16 support port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other but can communicate with ports outside the group. PoE Watchdog: Ports 1 to 16 auto-detect and restart cameras that do not respond. Link Aggregation: Aggregates multiple physical ports into a logical port for load balancing, bandwidth expansion, and protection. Supports static aggregation and up to 8 aggregation groups. Loop Prevention: Prevents network loops that affect communication. Supports 802.1D STP and 802.1w RSTP (disabled by default). VLAN: Supports 802.1Q, configurable VLAN IDs (1–4094), Trunk and Access port modes, and up to 32 VLANs. HPP (Hik-Partner Pro): Supports one-click activation and remote management, including: - Display port rate and bandwidth utilization - Display PoE power usage - Display topology information - Display alarm status - Restart ports and devices - Enable port long-range mode - Remotely upgrade the device System Maintenance: Supports web management, DHCP Client (enabled by default), Super IP (10.180.190.200) for direct access, remote management via Hik-Partner Pro, cable detection (open/short circuit and cable length), 802.1ab LLDP for peer discovery, and port mirroring for fault locating. |
| Approval | EMC: CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017) Safety: CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 62368-1:2014+A11:2017) Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006) |
