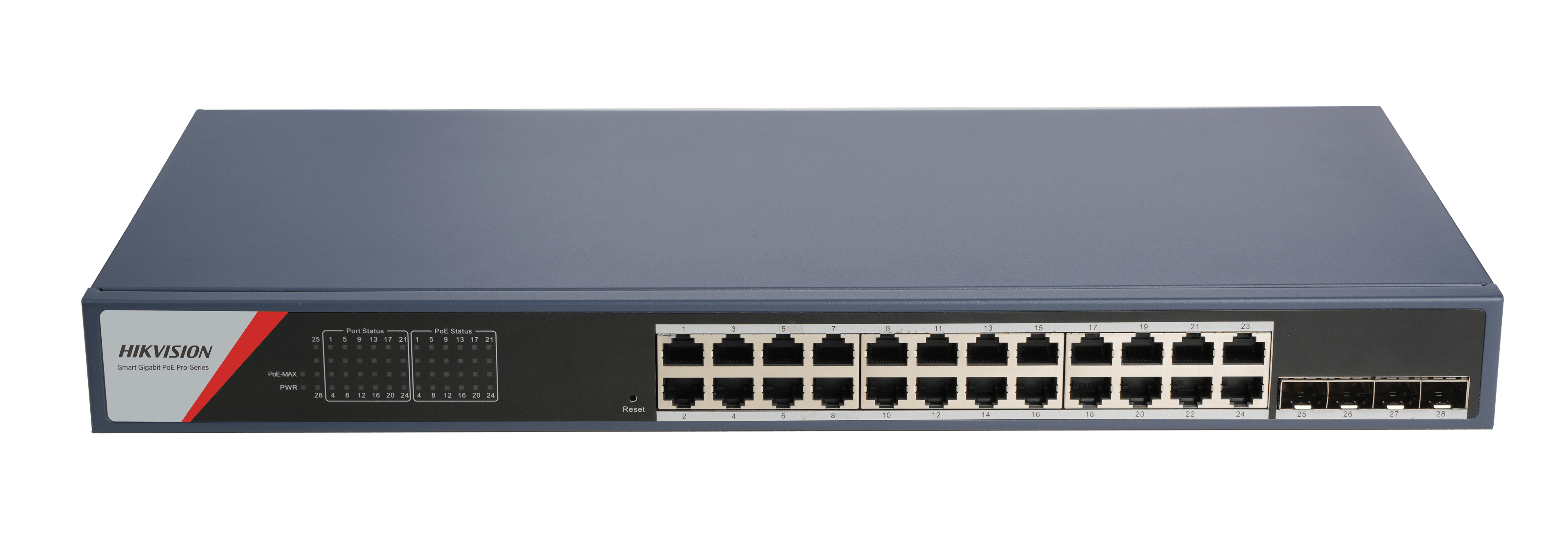

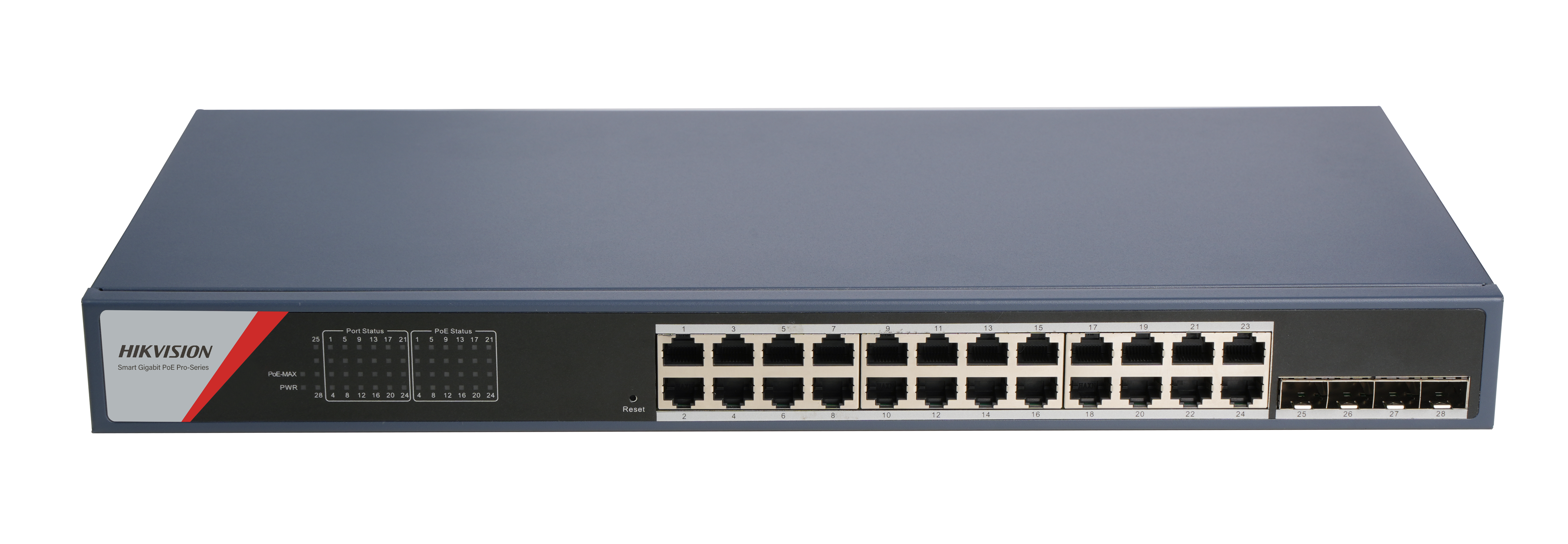

Hikvision DS-3E1528P-SI-24P4F 24 Port Gigabit Smart POE Switch
Model :
SKU : NS-HI DS-3E1528P-SI-24P4F
About this item
- 24 × Gigabit PoE port,4 × Gigabit fiber optical port
- Total PoE power budget 370 W
- Support DHCP snooping
- Support 802.1Q VLAN
- Support ACL List
- Support STP/ERPS loop prevention, storm control
- Support ARP Anti-Spoofing
- Support SNMP, QoS
- 6 kV surge protection
Description
Hikvision DS-3E1528P-SI-24P4F 24 Port Gigabit Smart PoE Switch
Smart managed switches are developed by Hikvision, featuring easy management and maintenance. You can easily deploy, monitor, and expand your video security system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network, and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.
Specification
| Shell | Metal material |
|---|---|
| Net Weight | 2.8 kg (6.17 lb) |
| Gross Weight | 3.46 kg (7.63 lb) |
| Dimensions (W × H × D) | 440 mm × 44 mm × 220.8 mm (17.32” × 1.73” × 8.69”) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating/Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100–240 V, 50/60 Hz, 6.3 A Max |
| Installation Mode | Rack (equipped with mounting ears) |
| Max. Power Consumption | 400 W |
| Power Consumption (Idle) | 10 W |
| Surge Protection | 6 kV |
| Network Ports | 24 × Gigabit PoE ports, 4 × Gigabit fiber optical ports |
| MAC Address Table | 8K |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| Internal Cache | 4.1 Mbits |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) |
| PoE Ports | Ports 1 to 24 |
| Max. Port Power | 30 W |
| Software Features | Port Isolation: Ports 1–28 isolation for security Link Aggregation: Static, 8 groups QoS: Port-based, SP & WRR Loop Prevention: 802.1D STP VLAN: 802.1Q, ID 1–4094, Trunk/Access, Max 4094 VLANs HPP: Remote management via Hik-Partner Pro System Maintenance: Web, DHCP Client, Super IP, Hik-Central Pro, Hik-Partner Pro Others: Cable detection, LLDP, SNMP v1/v2c, port mirroring, rate-limiting, storm control, DHCP snooping, ACL (64 entries), IPSG (256 entries) |
| Approval | EMC: CE-EMC, IC, RCM Safety: CB, CE-LVD Chemistry: CE-RoHS, WEEE, Reach |
