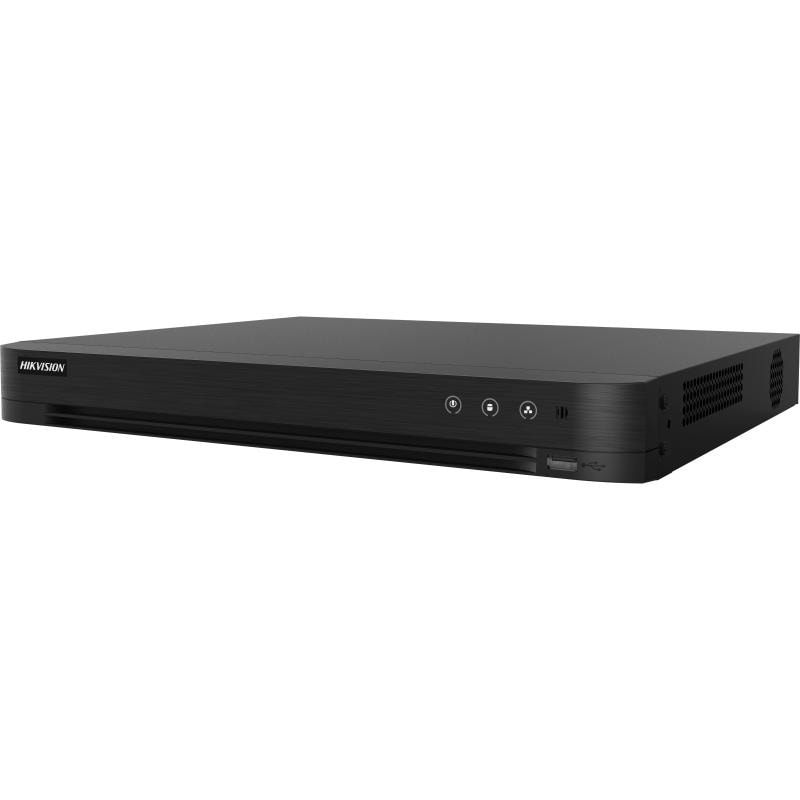

Home/Networking/Hikvision DS-7216HGHI-M1 16-ch 720p 1U H.265 DVR
NaNInclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
| IP Video Input | 2-ch (up to 18-ch), up to 5 MP resolution, supports H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 16-ch, BNC interface (1.0 Vp-p, 75 ??), supporting coaxitron connection |
| HDTVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| HDMI Output | 1-ch, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz |
| VGA Output | 1-ch, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 K??) |
| Audio Output | 1-ch, RCA (Linear, 1 K??) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 K??) (using the first audio input) |
| Synchronous Playback | 16-ch |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 1080p lite/720p/VGA/WD1/4CIF/CIF |
| Frame Rate |
Main Stream: - 1080p stream: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) - 720p stream: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) - Standard Definition: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: - 1080p & 720p stream: CIF/QVGA@15fps - Standard Definition: CIF/QVGA@25fps (P)/30fps (N) |
| Video Bitrate | 32 Kbps to 4 Mbps |
| Dual-stream | Supported |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP???, HTTPS, ONVIF |
| Network Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1, SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| USB Interface | Rear panel: 2 ?? USB 2.0 |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | ??? 18 W |
| Working Temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Working Humidity | 10% to 90% |
| Dimension (W ?? D ?? H) | 260 ?? 222 ?? 45 mm (10.2 ?? 8.7 ?? 1.8 inch) |
| Weight | ??? 2.2 kg (4.9 lb) |
