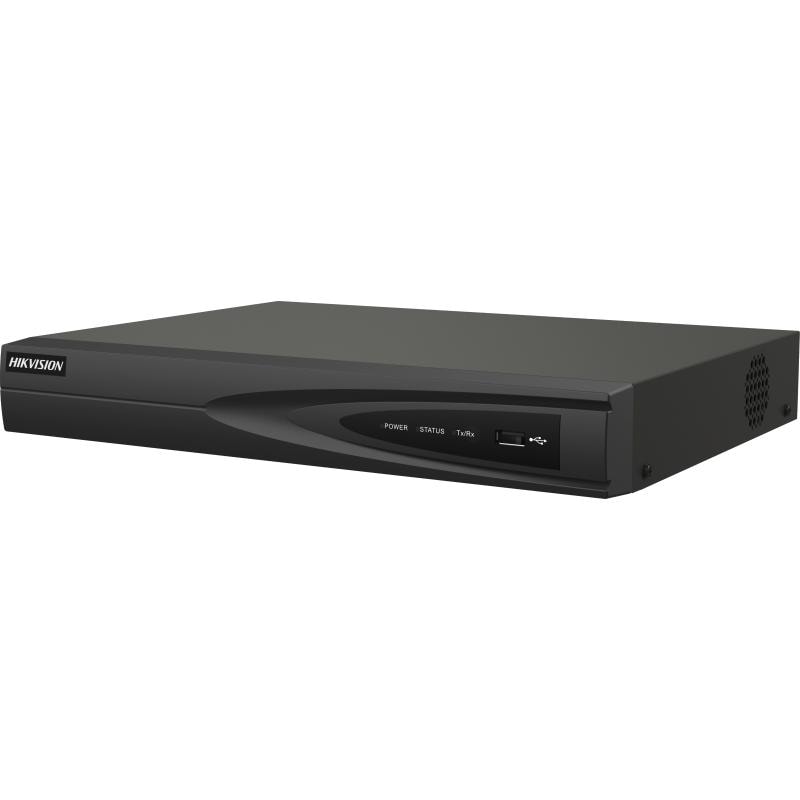

Hikvision DS-7604NI-Q1 4-ch 1U 4K NVR, Up to 4-ch IP camera inputs, Up to 8 TB, 1 SATA interface, 80 Mbps Outgoing and 40 Mbps Incoming Bandwidth
Model :
SKU : DS-7604NI-Q1
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision DS-7604NI-Q1 4-ch 1U 4K NVR, Up to 4-ch IP camera inputs, Up to 8 TB, 1 SATA interface, 80 Mbps Outgoing and 40 Mbps Incoming Bandwidth System Parameters
Motion Detection
| Motion Detection 2.0 | Human/Vehicle Analysis |
| Analysis Channels | 1-ch; 4-ch |
Video and Audio
| IP Video Input | 4-ch |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (3840 ?? 2160) / 30Hz, 1920 ?? 1080p / 60Hz, 1600 ?? 1200 / 60Hz, 1280 ?? 1024 / 60Hz, 1280 ?? 720 / 60Hz, 1024 ?? 768 / 60Hz |
| VGA Output | 1920 ?? 1080 / 60Hz, 1280 ?? 1024 / 60Hz, 1280 ?? 720 / 60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 K??) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k??) |
Decoding
| Decoding Format | H.265+, H.265, H.264+, H.264 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-ch |
| Decoding Capability | 1-ch @ 8 MP (30 fps), 3-ch @ 4 MP (30 fps), 6-ch @ 1080p (30 fps) |
| Note | * The length or width of the camera resolution (each track) cannot exceed 4096 pixels. |
Network
| Remote Connection | 32 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
Auxiliary Interface
| SATA | 1 SATA interface |
| Capacity | Up to 8 TB capacity for each disk |
| USB Interface | 2 ?? USB 2.0 |
General
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | ??? 10 W (without HDD) |
| Working Temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Working Humidity | 10 to 90 % |
| Dimensions (W ?? D ?? H) | 320 ?? 240 ?? 48 mm (12.4" ?? 9.4" ?? 1.9") |
| Weight | ??? 1 kg (without HDD, 2.2 lb.) |
Specification
Hikvision DS-7604NI-Q1 4-ch 1U 4K NVR, Up to 4-ch IP camera inputs, Up to 8 TB, 1 SATA interface, 80 Mbps Outgoing and 40 Mbps Incoming Bandwidth System Parameters
Motion Detection
| Motion Detection 2.0 | Human/Vehicle Analysis |
| Analysis Channels | 1-ch; 4-ch |
Video and Audio
| IP Video Input | 4-ch |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (3840 ?? 2160) / 30Hz, 1920 ?? 1080p / 60Hz, 1600 ?? 1200 / 60Hz, 1280 ?? 1024 / 60Hz, 1280 ?? 720 / 60Hz, 1024 ?? 768 / 60Hz |
| VGA Output | 1920 ?? 1080 / 60Hz, 1280 ?? 1024 / 60Hz, 1280 ?? 720 / 60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 K??) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k??) |
Decoding
| Decoding Format | H.265+, H.265, H.264+, H.264 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-ch |
| Decoding Capability | 1-ch @ 8 MP (30 fps), 3-ch @ 4 MP (30 fps), 6-ch @ 1080p (30 fps) |
| Note | * The length or width of the camera resolution (each track) cannot exceed 4096 pixels. |
Network
| Remote Connection | 32 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
Auxiliary Interface
| SATA | 1 SATA interface |
| Capacity | Up to 8 TB capacity for each disk |
| USB Interface | 2 ?? USB 2.0 |
General
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | ??? 10 W (without HDD) |
| Working Temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Working Humidity | 10 to 90 % |
| Dimensions (W ?? D ?? H) | 320 ?? 240 ?? 48 mm (12.4" ?? 9.4" ?? 1.9") |
| Weight | ??? 1 kg (without HDD, 2.2 lb.) |
