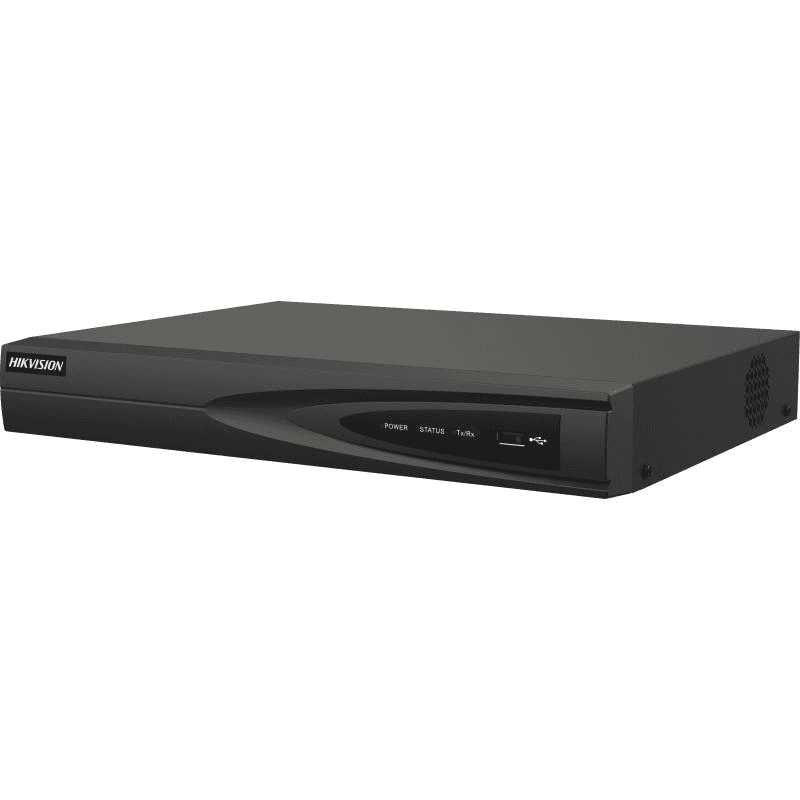

Hikvision DS-7604NI-Q1/4P (D) NVR, Up to 4-ch IP camera inputs, H.265+, Up to 40 Mbps incoming bandwidth, Up to 1-ch@8 MP/6-ch@1080p decoding capacity, Motion Detection 2.0, 1 self-adaptive 10/100 Mbps Ethernet interface, up to 4K resolution

Model :

SKU : DS-7604NI-Q1/4P NEW

About this item

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

AED 0.00

stock : 1

About this item

Description

table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }

Hikvision DS-7604NI-Q1/4P (D) NVR, Up to 4-ch IP camera inputs, H.265+, Up to 40 Mbps incoming bandwidth, Up to 1-ch@8 MP/6-ch@1080p decoding capacity, Motion Detection 2.0, 1 self-adaptive 10/100 Mbps Ethernet interface, up to 4K resolution

Human/Vehicle Analysis

1-ch;4-ch

Recording

Stream Type	Video, Video & Audio
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726
Video And Audio	IP Video Input: 4-ch
Incoming Bandwidth	40 Mbps
Outgoing Bandwidth	80 Mbps
HDMI Output	1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz; HDMI/VGA simultaneous output
VGA Output	1-ch, 1920 ?? 1080p/60Hz, 1600 ?? 1200/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz; HDMI/VGA simultaneous output
Video Output Mode	HDMI/VGA simultaneous output
Audio Output	1-ch, RCA (Linear, 1 K??)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 k ??)
Decoding Format	H.265+,H.265,H.264+,H.264
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Decoding Capability	1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Synchronous Playback	4-ch

Network

Remote Connection	32
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS
Network Interface	1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE Interface	4, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

Power Supply	48 VDC, 1.35 A
Power Consumption	??? 10 W (without HDD, and PoE off)

General

Working Temperature	-10 to +55?? C (+14 to +131?? F)
Working Humidity	10% to 90%
Dimension (W ?? D ?? H)	320 ?? 240 ?? 48 mm (12.4" ?? 9.4" ?? 1.9")
Weight	??? 1 kg (without HDD, 2.2 lb.)

Certification

FCC	Part 15 Subpart B, ANSI C63.4-2014
CE	EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

Specification

Hikvision DS-7604NI-Q1/4P (D) NVR, Up to 4-ch IP camera inputs, H.265+, Up to 40 Mbps incoming bandwidth, Up to 1-ch@8 MP/6-ch@1080p decoding capacity, Motion Detection 2.0, 1 self-adaptive 10/100 Mbps Ethernet interface, up to 4K resolution

Human/Vehicle Analysis

1-ch;4-ch

Recording

Stream Type	Video, Video & Audio
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726
Video And Audio	IP Video Input: 4-ch
Incoming Bandwidth	40 Mbps
Outgoing Bandwidth	80 Mbps
HDMI Output	1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz; HDMI/VGA simultaneous output
VGA Output	1-ch, 1920 ?? 1080p/60Hz, 1600 ?? 1200/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz; HDMI/VGA simultaneous output
Video Output Mode	HDMI/VGA simultaneous output
Audio Output	1-ch, RCA (Linear, 1 K??)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 k ??)
Decoding Format	H.265+,H.265,H.264+,H.264
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Decoding Capability	1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Synchronous Playback	4-ch

Network

Remote Connection	32
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS
Network Interface	1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE Interface	4, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

Power Supply	48 VDC, 1.35 A
Power Consumption	??? 10 W (without HDD, and PoE off)

General

Working Temperature	-10 to +55?? C (+14 to +131?? F)
Working Humidity	10% to 90%
Dimension (W ?? D ?? H)	320 ?? 240 ?? 48 mm (12.4" ?? 9.4" ?? 1.9")
Weight	??? 1 kg (without HDD, 2.2 lb.)

Certification

FCC	Part 15 Subpart B, ANSI C63.4-2014
CE	EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
