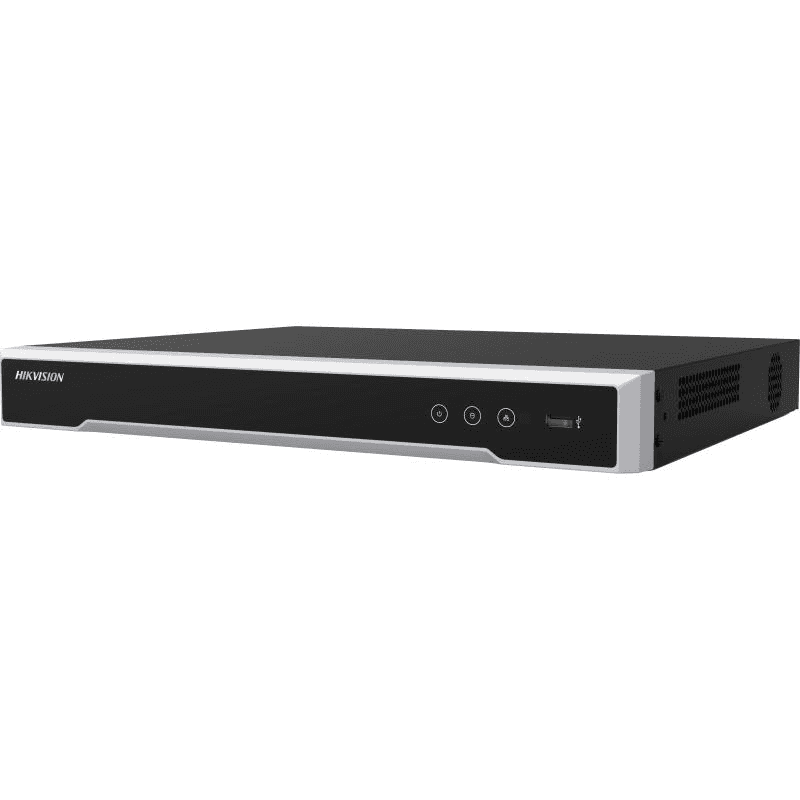

HIKVISION DS-7616NI-Q2 16 Channel NVR NON POE 160Mbps Bit Rate Input Max (up to 16-ch IP video), 2 SATA interfaces, 380 1U case (NO POE PORT MUST Add POE SWITCH)
Model :
SKU : DS-7616NI-Q2
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
HIKVISION DS-7616NI-Q2 16 CHANNEL NVR NON POE 160Mbps Bit Rate Input Max (up to 16-ch IP video), 2 SATA interfaces, 380 1U case DS-7616NI-Q2 (NO POE PORT MUST additional POE SWITCH)
| Human/Vehicle Analysis | 4-ch |
| Video And Audio |
IP Video Input: 16-ch Incoming Bandwidth: 160 Mbps Outgoing Bandwidth: 80 Mbps HDMI Output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz VGA Output: 1-ch, 1920 ?? 1080/60 Hz, 1280 ?? 1024/60 Hz, 1280 ?? 720/60 Hz Video Output Mode: HDMI/VGA simultaneous output Audio Output: 1-ch, RCA (Linear, 1 K??) Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k ??) |
| Decoding |
Decoding Format: H.265+,H.265,H.264+,H.264 Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF Decoding Capability: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. Synchronous Playback: 16-ch |
| Network |
Remote Connection: 32 Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | SATA, 2 SATA interfaces, Capacity: Up to 8 TB capacity for each disk |
| USB Interface | 2 ?? USB 2.0 |
| General |
Power Supply: 12 VDC, 3.33 A Consumption: ??? 15 W (without HDD) Working Temperature: -10 ??C to 55 ??C (14 ??F to 131 ??F) Working Humidity: 10 to 90 % Chassis: 1U chassis Dimension (W ?? D ?? H): 385 ?? 315 ?? 52 mm (15.2"?? 12.4" ?? 2.0") Weight: ??? 1.8 kg (without HDD, 4.0 lb.) |
Specification
HIKVISION DS-7616NI-Q2 16 CHANNEL NVR NON POE 160Mbps Bit Rate Input Max (up to 16-ch IP video), 2 SATA interfaces, 380 1U case DS-7616NI-Q2 (NO POE PORT MUST additional POE SWITCH)
| Human/Vehicle Analysis | 4-ch |
| Video And Audio |
IP Video Input: 16-ch Incoming Bandwidth: 160 Mbps Outgoing Bandwidth: 80 Mbps HDMI Output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz VGA Output: 1-ch, 1920 ?? 1080/60 Hz, 1280 ?? 1024/60 Hz, 1280 ?? 720/60 Hz Video Output Mode: HDMI/VGA simultaneous output Audio Output: 1-ch, RCA (Linear, 1 K??) Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k ??) |
| Decoding |
Decoding Format: H.265+,H.265,H.264+,H.264 Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF Decoding Capability: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. Synchronous Playback: 16-ch |
| Network |
Remote Connection: 32 Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | SATA, 2 SATA interfaces, Capacity: Up to 8 TB capacity for each disk |
| USB Interface | 2 ?? USB 2.0 |
| General |
Power Supply: 12 VDC, 3.33 A Consumption: ??? 15 W (without HDD) Working Temperature: -10 ??C to 55 ??C (14 ??F to 131 ??F) Working Humidity: 10 to 90 % Chassis: 1U chassis Dimension (W ?? D ?? H): 385 ?? 315 ?? 52 mm (15.2"?? 12.4" ?? 2.0") Weight: ??? 1.8 kg (without HDD, 4.0 lb.) |
