Home/Network Products/Network Video Recorders/Hikvision DS-7716NI-M4/16P 16-ch 1.5U 16 PoE 8K NV...

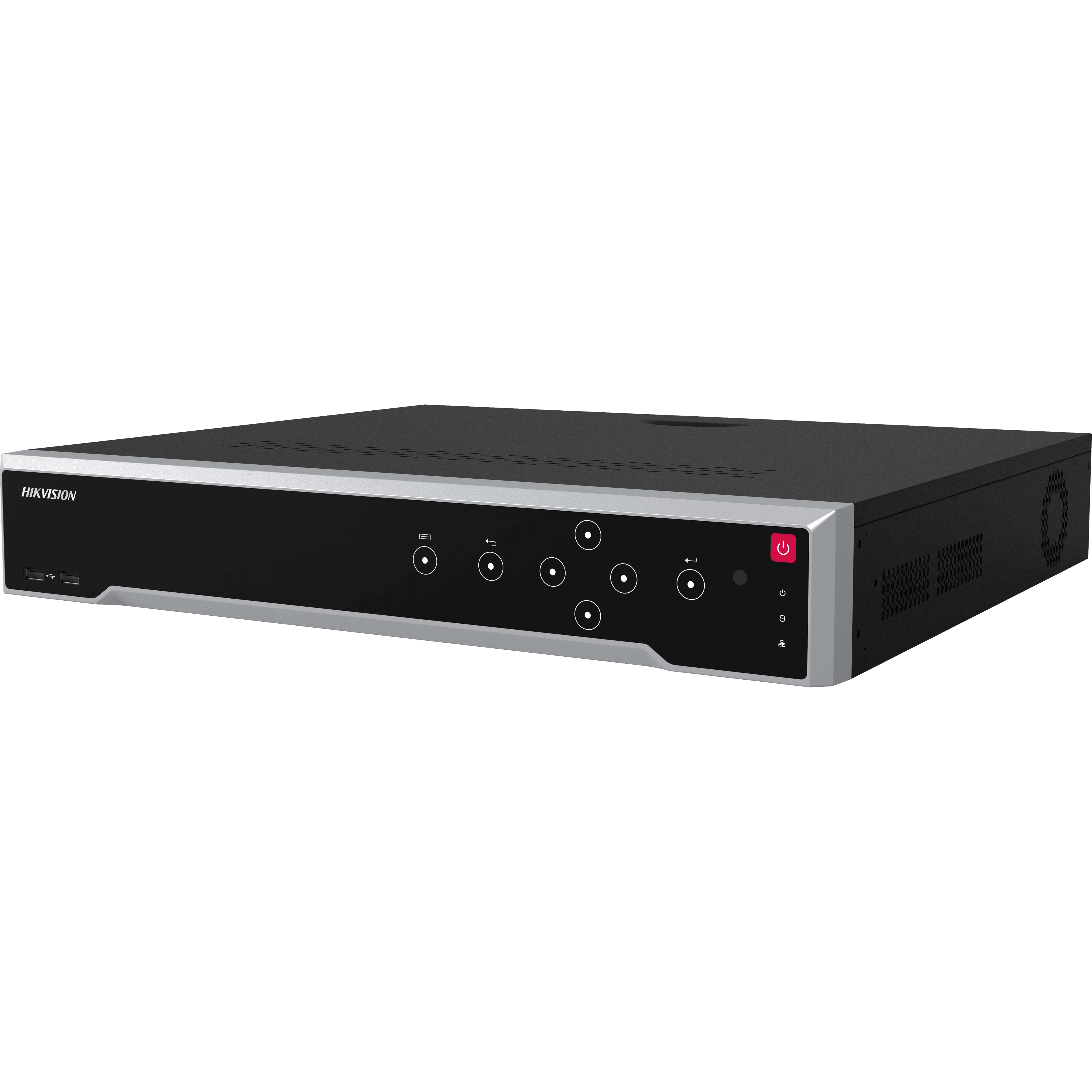

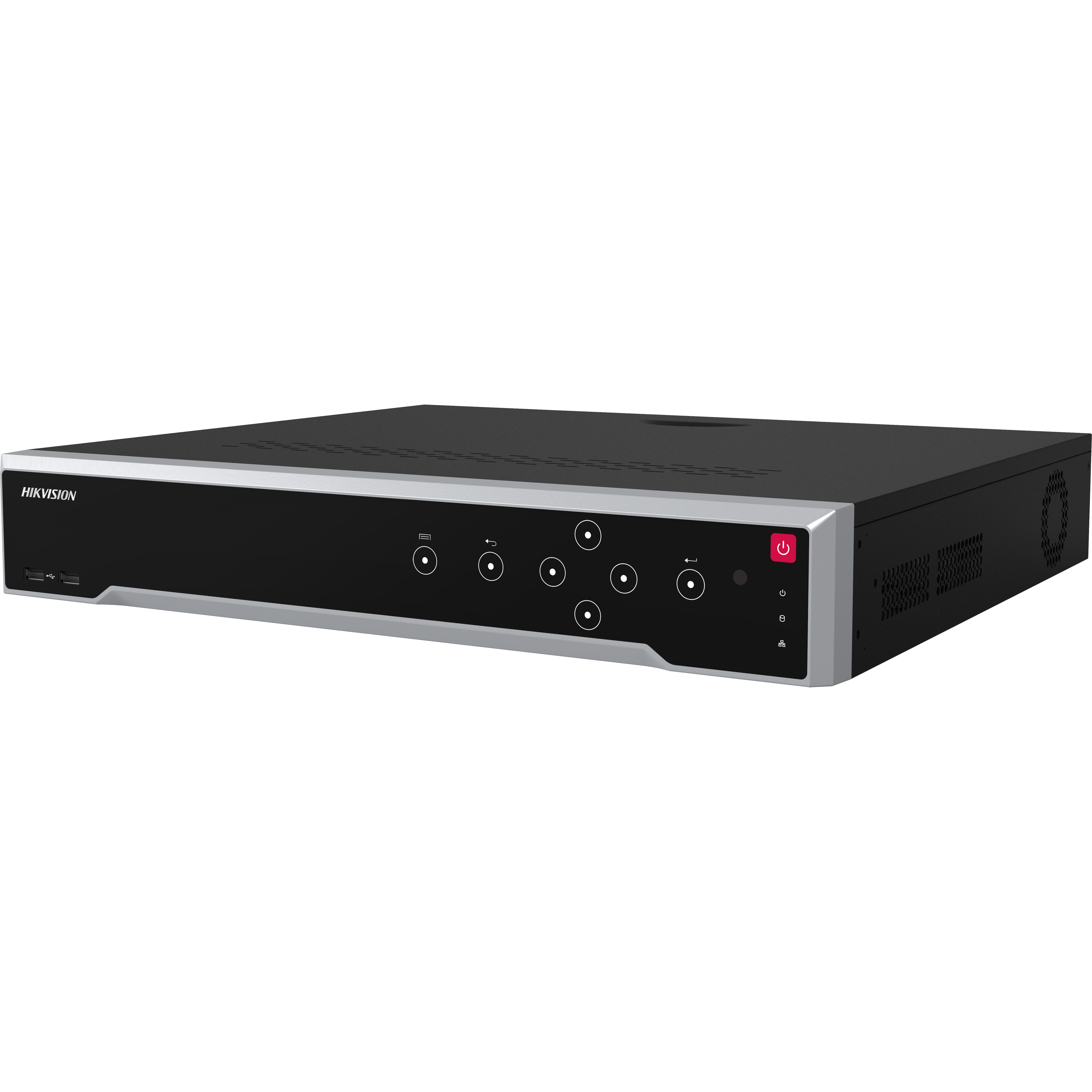

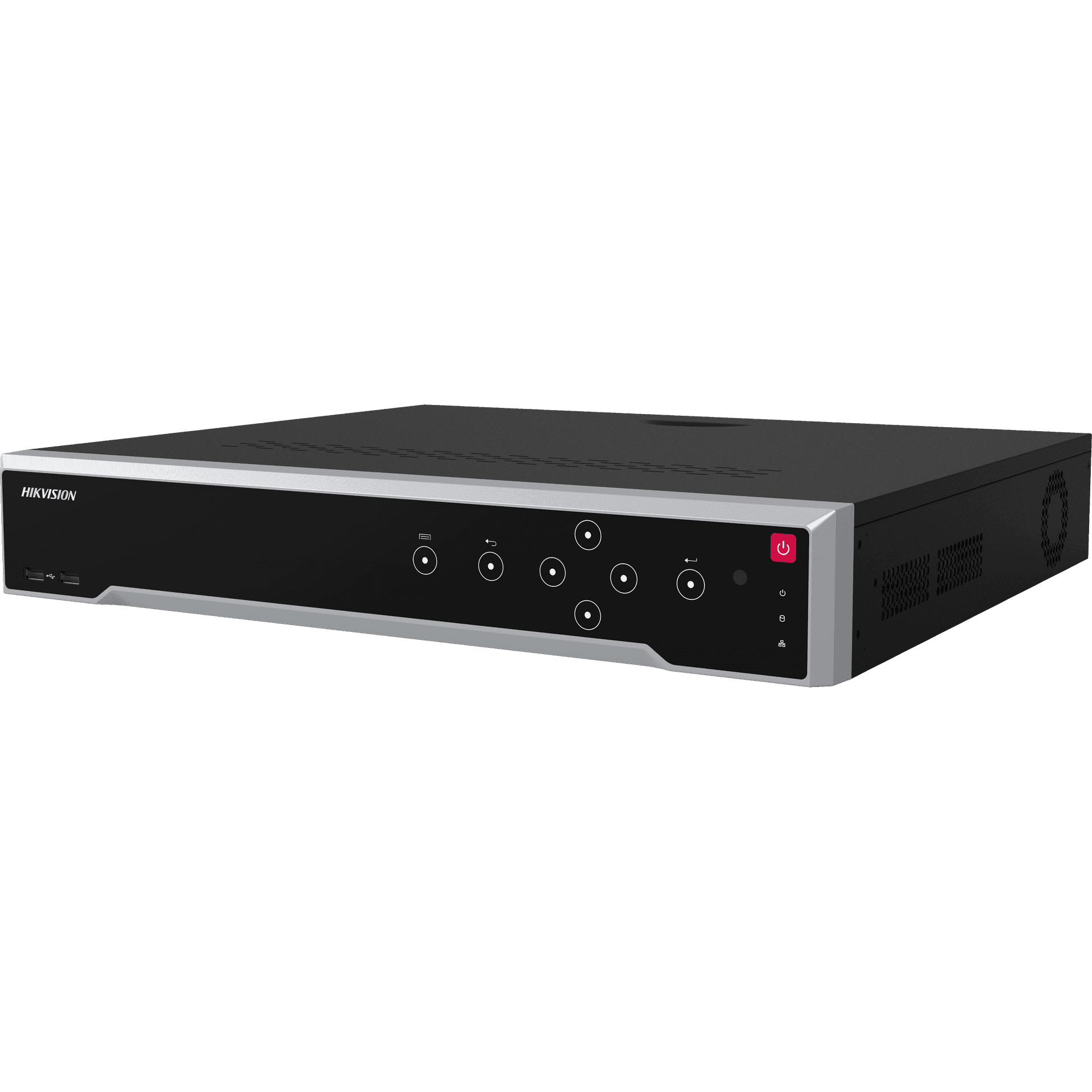

Hikvision DS-7716NI-M4/16P 16-ch 1.5U 16 PoE 8K NVR

Model :

SKU : DS-7716NI-M4/16P

About this item

H.265+/H.265/H.264+/H.264 video formats
Up to 16-ch IP camera inputs
Up to 16-ch@4 MP decoding capacity
Up to 256 Mbps incoming bandwidth
Up to 8-ch IP speakers can be connected

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

AED 0.00

stock : 1

About this item

Description

Specification

IP Video Input	16-ch, up to 32 MP resolution * After ultra HD resolution mode is enabled, supports up to 8-ch 32 MP/24 MP inputs
Incoming Bandwidth	256 Mbps
Outgoing Bandwidth	256 Mbps
HDMI 1 Output	8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output	4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz * When HDMI 1 is 8K, HDMI 2 maxes at 1080p
VGA Output	1920 × 1080/60Hz
Video Output Mode	HDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω), PAL: 704 × 576, NTSC: 704 × 480
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Decoding Format	H.265+/H.265/H.264+/H.264
Recording Resolution	32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback	16-ch
Decoding Capability	2-ch@32 MP (30 fps)+2-ch@8 MP (30 fps) 10-ch@8 MP (30 fps) 20-ch@4 MP (30 fps) 40-ch@1080p (30 fps)
Dual-Stream Recording	Supported
Stream Type	Video, Video & Audio
Audio Compression	G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2

Network Specifications

Remote Connection	128
Protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (V2.2), OTAP
Network Interface	1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet
Camera Access Protocol	ONVIF (V2.5), RTSP
PoE Interface	16 × RJ-45 10/100 Mbps self-adaptive Ethernet
PoE Power	≤ 200 W, IEEE 802.3 af/at

Storage & Interfaces

eSATA	1 × eSATA
SATA	4 × SATA interfaces
Capacity	Up to 16 TB per disk
Serial Interfaces	2 × RS-485 (half-duplex), 1 × RS-232
USB Interfaces	Front: 2 × USB 2.0 Rear: 1 × USB 3.0
Alarm In/Out	16 / 9
Ctrl 12V Output	12 VDC, 1 A (linked to Alarm Out 9)
DC 12V Output	12 VDC, 1 A

General Specifications

Power Supply	100–240 VAC, 50/60 Hz
Consumption	≤ 15 W (without HDD, PoE off)
Operating Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity	10% to 90%
Chassis	19-inch rack-mounted, 1.5U
Dimensions (W×D×H)	445 × 400 × 75 mm (17.5" × 15.7" × 3.0")
Weight	≤ 5 kg (without HDD, ~11 lb)
Certifications	FCC Part 15 Subpart B, ANSI C63.4-2014 CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
