Model :
SKU : 7732NI-M4-24P

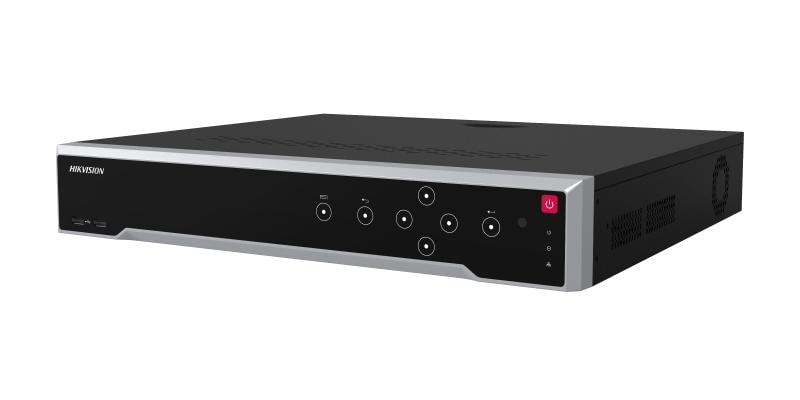

The Hikvision DS-7732NI-M4/24P is a masterclass in high-velocity surveillance engineering, meticulously designed to provide a surgical recording advantage for flagship Ultra Series enterprise ecosystems. Featuring professional-grade 8K decoding and a surgical 32-channel input with 24 integrated PoE ports, it delivers elite-tier power and data transmission for high-production IP camera arrays. With its high-impact 320Mbps bit rate and specialized four-bay storage capacity, this NVR serves as a reliable and technically dominant pillar for the most demanding security infrastructures in the UAE.
The DS-7732NI-M4/24P Ultra Series NVR represents a surgical fusion of ultra-high-bandwidth digital recording and professional-grade power management. Designed for professionals who operate within zero-compromise security environments, this NVR utilizes high-impact 8K resolution support to capture surgical visual details from up to 32 cameras, with recording capabilities up to a staggering 32MP resolution. The specialized integrated 24-port PoE interface is surgically engineered to allow for high-velocity installation, providing direct power and data to the majority of your camera fleet from a single chassis. Whether you are managing a high-stakes infrastructure project or a high-production commercial skyscraper, the DS-7732NI-M4/24P provides the technical refinement and structural integrity required to maintain absolute technical dominance over your video assets.
Key Features
32-Channel IP Video Input: Meticulously designed for surgical management of up to 32 high-definition IP cameras, acting as a reliable enterprise-grade recording foundation.
Integrated 24-Port PoE: Features a surgical Plug-and-Play interface surgically engineered to provide high-velocity power and data via 24 dedicated network ports.
8K Ultra-HD HDMI Output: Equipped with surgical video output capable of high-velocity 8K resolution, providing a surgical advantage in monitoring and high-definition forensic review.
32MP Recording Resolution: Features elite-tier processing power surgically designed to record ultra-high-resolution streams for maximum visual forensic detail.
320 Mbps Incoming Bandwidth: Meticulously crafted to handle high-velocity data streams from high-density camera arrays without throughput bottlenecks in the UAE.
Quad SATA Interfaces: Equipped with high-velocity support for four internal hard drives (up to 14TB each), providing a surgical and reliable archival anchor for massive video datasets.
H.265+ Compression Technology: Surgically tuned to optimize storage space and bandwidth, acting as a reliable pillar for extended recording duration without visual degradation.
Professional 1.5U Chassis: Meticulously designed for surgical rack-mount integration, ensuring high-impact cooling and mechanical durability for 24/7 mission-critical operations.
Why This Product Stands Out
The Hikvision DS-7732NI-M4/24P stands out by offering flagship 32MP recording capabilities and a specialized 24-port PoE architecture within a single high-velocity Ultra Series chassis. While standard enterprise recorders require separate PoE switches for every camera, the integrated high-capacity PoE delivery and 8K decoding power of the M4 model act as a major differentiator, providing a surgical advantage in installation efficiency and system stability. Its professional aesthetic and ultra-precise hardware construction are high-impact benefits for users in the UAE who demand professional-grade hardware. For the security professional who requires technical dominance and a flagship-tier 32-channel anchor, this NVR offers a level of refinement and mechanical excellence that redefines the Ultra Series surveillance category.
| IP Video Input | 32-ch, Up to 32 MP resolution |
| *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. | |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI 1 Output | 8K (7680 4320)/30Hz, 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 2K (2560 1440)/60Hz, 1920 1080/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz |
| HDMI 2 Output | 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 2K (2560 1440)/60Hz, 1920 1080/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz |
| VGA Output | 1920 1080/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 ), resolution: PAL: 704 576, NTSC: 704 480 |
| Audio Output | 1-ch, RCA (Linear, 1 K) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 K, using the audio input) |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
| *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. | |
| Synchronous Playback | 16-ch |
| Decoding Capability | 2-ch@32 MP (30 fps)+2-ch@8MP30fps/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| Interface | 24, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | 210 W |
| Standard | IEEE 802.3 af/at |
| eSATA | 1 eSATA interface |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each disk |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2 USB 2.0; Rear panel: 1 USB 3.0 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. |
| *: The Ctrl 12V power is controlled by alarm output 9. | |
| DC 12V | 12 VDC, 1 A power output |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | 15 W (without HDD and PoE off) |
| Working Temperature | -10 C to 55 C (14 F to 131 F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W D H) | 445 400 70 mm (17.5" 15.7" 2.8") |
| Weight | 5 kg (11.0 lb) (without HDD) |
