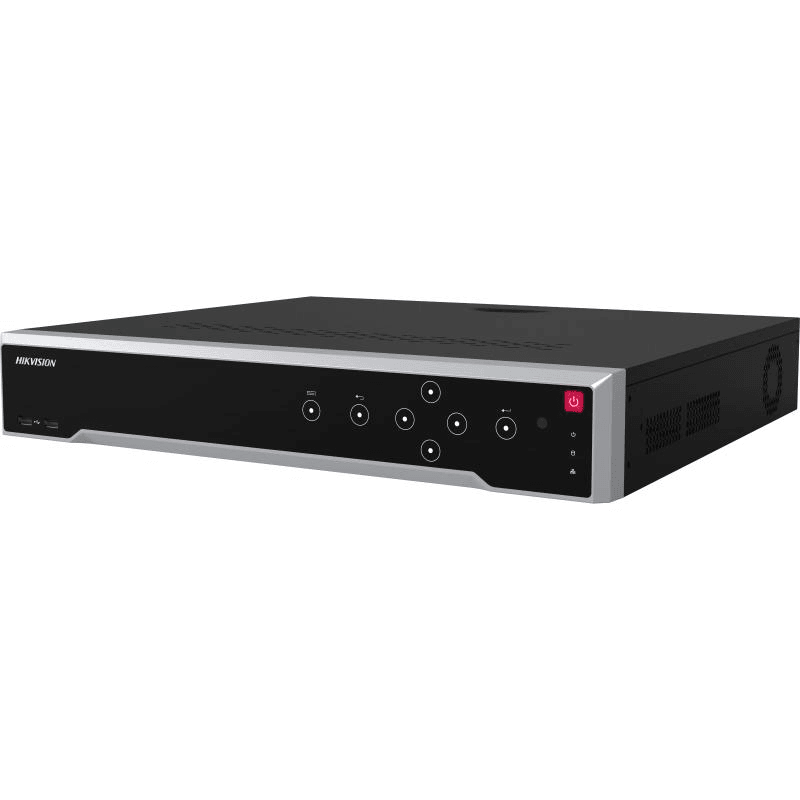

Hikvision DS-7732NI-M4 M Series 8K NVR, Up to 32-ch IP camera, Up to 320 Mbps incoming bandwidth, H.265+, 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces, Dual 4K HDMI output
Model :
SKU : DS-7732NI-M4
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision DS-7732NI-M4 M Series 8K NVR, Up to 32-ch IP camera, Up to 320 Mbps incoming bandwidth, H.265+, 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces, Dual 4K HDMI output
| IP Video Input | 32-ch |
| Up to 32 MP resolution | *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI 1 Output | 8K (7680 ?? 4320)/30Hz, 4K (3840 ?? 2160)/60Hz, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz |
| HDMI 2 Output | 4K (3840 ?? 2160)/60Hz, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz |
| VGA Output | 1920 ?? 1080/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 ??), resolution: PAL: 704 ?? 576, NTSC: 704 ?? 480 |
| Audio Output | 1-ch, RCA (Linear, 1 K??) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 K??, using the audio input) |
| Decoding | Decoding Format: H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Synchronous Playback | 16-ch |
| Decoding Capability | 2-ch@32 MP (30 fps)+2-ch@8MP???30fps???/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| RAID Type | N/A |
| ESATA | 1 eSATA interface |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each HDD |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2 ?? USB 2.0; Rear panel: 1 ?? USB 3.0 |
| Controllable 12 VDC | 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. |
| 12 VDC | 1 A power output | Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ??? 15 W (without HDD ) |
| Working Temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W ?? D ?? H) | 445 ?? 400 ?? 75 mm ( 17.5"?? 15.7" ?? 3.0") |
| Weight | ??? 5 kg (without HDD, 11 lb.) | FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
Specification
Hikvision DS-7732NI-M4 M Series 8K NVR, Up to 32-ch IP camera, Up to 320 Mbps incoming bandwidth, H.265+, 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces, Dual 4K HDMI output
| IP Video Input | 32-ch |
| Up to 32 MP resolution | *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI 1 Output | 8K (7680 ?? 4320)/30Hz, 4K (3840 ?? 2160)/60Hz, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz |
| HDMI 2 Output | 4K (3840 ?? 2160)/60Hz, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz |
| VGA Output | 1920 ?? 1080/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 ??), resolution: PAL: 704 ?? 576, NTSC: 704 ?? 480 |
| Audio Output | 1-ch, RCA (Linear, 1 K??) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 K??, using the audio input) |
| Decoding | Decoding Format: H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Synchronous Playback | 16-ch |
| Decoding Capability | 2-ch@32 MP (30 fps)+2-ch@8MP???30fps???/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| RAID Type | N/A |
| ESATA | 1 eSATA interface |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each HDD |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2 ?? USB 2.0; Rear panel: 1 ?? USB 3.0 |
| Controllable 12 VDC | 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. |
| 12 VDC | 1 A power output | Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ??? 15 W (without HDD ) |
| Working Temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W ?? D ?? H) | 445 ?? 400 ?? 75 mm ( 17.5"?? 15.7" ?? 3.0") |
| Weight | ??? 5 kg (without HDD, 11 lb.) | FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
