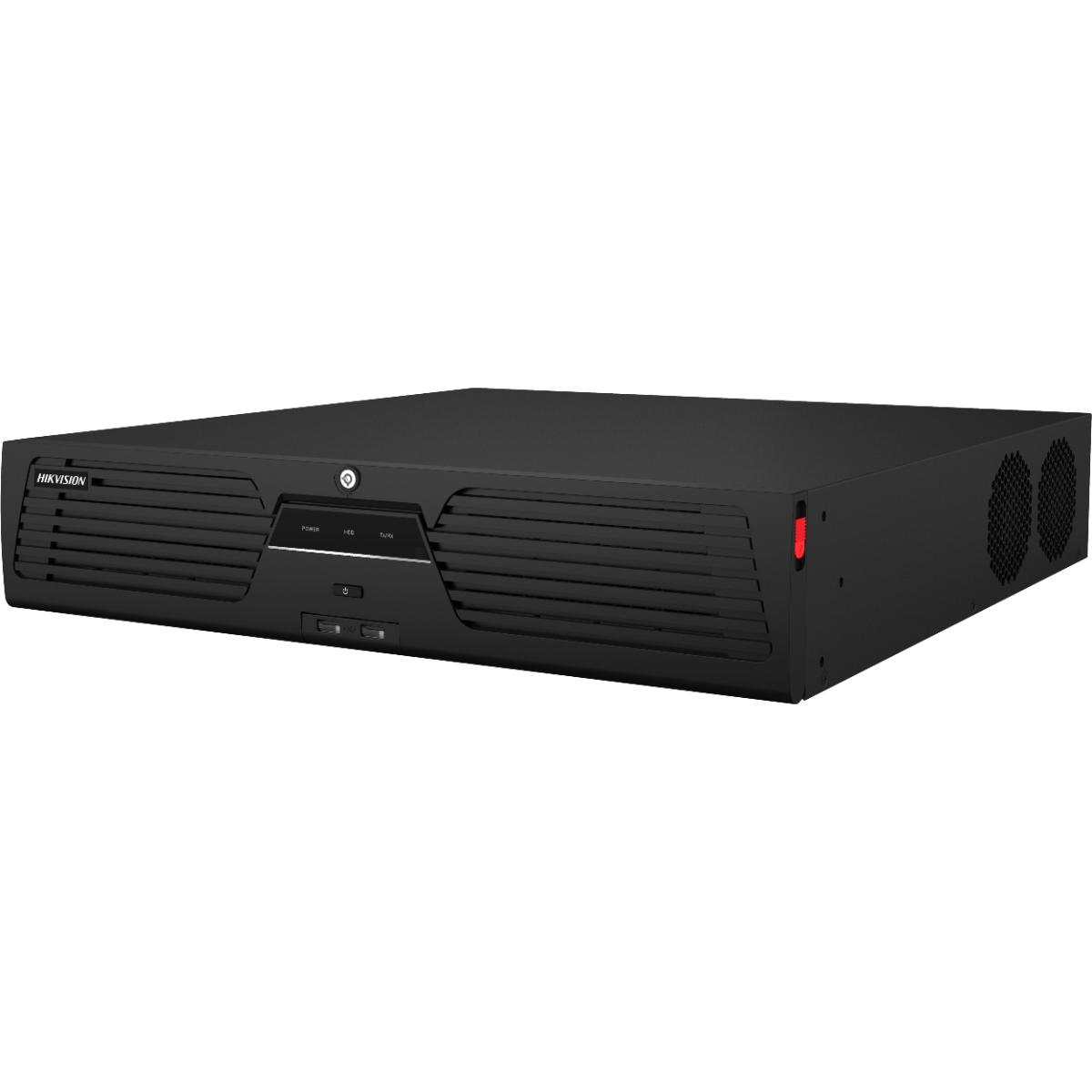

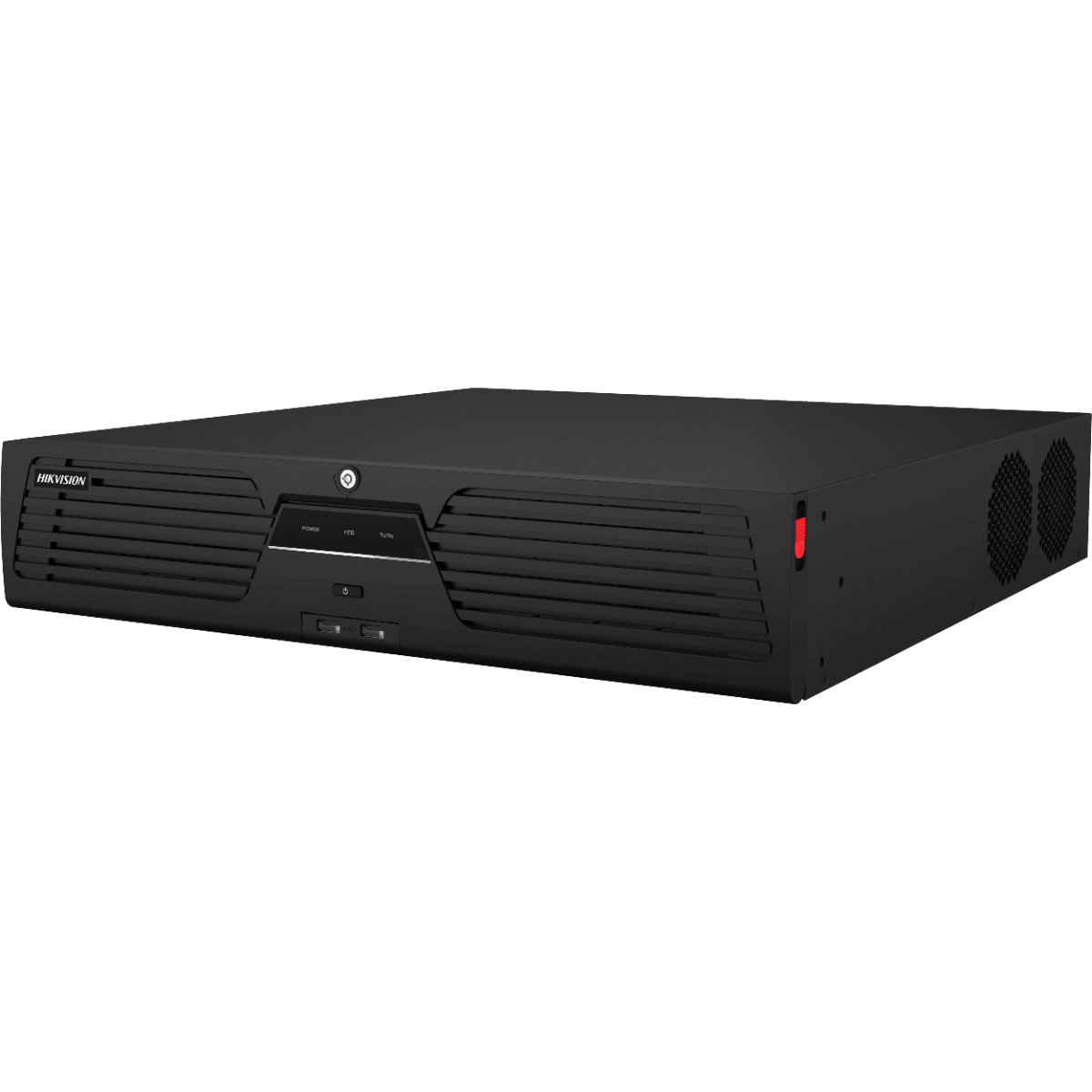

Hikvision M Series 8K NVR DS-9616NI-M8, 16-Channel Video Surveillance Station, 32MP Resolution, H.265+ Compression, HDMI/USB Connectivity, Remote Management, Ethernet Support (1 Year Warranty)
Model :
SKU : DS-9616NI-M8
Description
Hikvision M Series 8K NVR DS-9616NI-M8, 16-Channel Video Surveillance Station, 32MP Resolution, H.265+ Compression, HDMI/USB Connectivity, Remote Management, Ethernet Support
- Up to 16-channel IP camera inputs
- Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
- Up to 320 Mbps incoming bandwidth and 400Mbps outgoing bandwidth
- 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
- Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
- Advanced streaming technology enables smooth live view in poor network conditions
- Supports RAID 0, 1, 5, 6, 10, and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
- Up to 8-ch IP speakers can be connected
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Video Recorder Specifications
| Video and Audio | |
| IP Video Input | 16-ch |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI 1 Output | 8K/30Hz, 4K/60Hz, 4K/30Hz, 2K/60Hz, 1080p/60Hz |
| HDMI 2 Output | 4K/60Hz, 4K/30Hz, 2K/60Hz, 1080p/60Hz |
| VGA 1 Output | 1920 ?? 1080/60Hz |
| VGA 2 Output | 1920 ?? 1080/60Hz |
| Video Output Mode | HDMI 1 & VGA 1: Main Output HDMI 2 & VGA 2: Auxiliary Output |
| CVBS Output | 1-ch, BNC, PAL: 704??576, NTSC: 704??480 |
| Audio Output | 2-ch, RCA (Linear, 1 K??) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 K??) |
| Decoding | |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32MP to QCIF |
| Synchronous Playback | 16-ch |
| Decoding Capability | 2-ch@32MP + 2-ch@8MP / 10-ch@8MP / 20-ch@4MP / 40-ch@1080p (all @30fps) |
| Audio Compression | G.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2, PCM |
| Network | |
| Network Protocol | TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS, ONVIF 2.2, OTAP |
| Network Interface | 2 ?? RJ-45 10/100/1000 Mbps |
| Camera Access Protocol | ONVIF 2.5, RTSP |
| RAID | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Auxiliary Interface | |
| Serial Interface | 1 ?? RS-485 (full-duplex), 1 ?? RS-232 |
| SATA | 8 SATA interfaces (hot-plug) |
| eSATA | 1 eSATA interface |
| Disk Capacity | Up to 16 TB per disk |
| Alarm In/Out | 16/9 |
| USB | Front: 2 ?? USB 2.0; Rear: 2 ?? USB 3.0 |
| Ctrl 12V | 12 VDC, 1 A (alarm-controlled power) |
| DC 12V | 12 VDC, 1 A |
| General | |
| Power Supply | 100???240 VAC, 50???60 Hz |
| Power Consumption | ??? 50 W (without HDD) |
| Operating Temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Operating Humidity | 10% to 90% |
| Chassis | 2U |
| Dimensions | 445 ?? 465 ?? 93 mm (17.5" ?? 18.3" ?? 3.7") |
| Weight | ??? 10 kg (without HDD) |
| Certification | |
| Obtained Certifications | CE, FCC |
| CE Standards | EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
