Hikvision DS-2CD1327G2H-LIUF/S(L) 2 MP ColorVu with Smart Hybrid Light Fixed Turret Network Camera, Built-in Two-way Audio, Strobe Light Alarm
229.00Home/Networking/Networking Cables/Cat 6/Hikvision DS-9632NI-M16 M Series 8K NVR, Up to 32-...

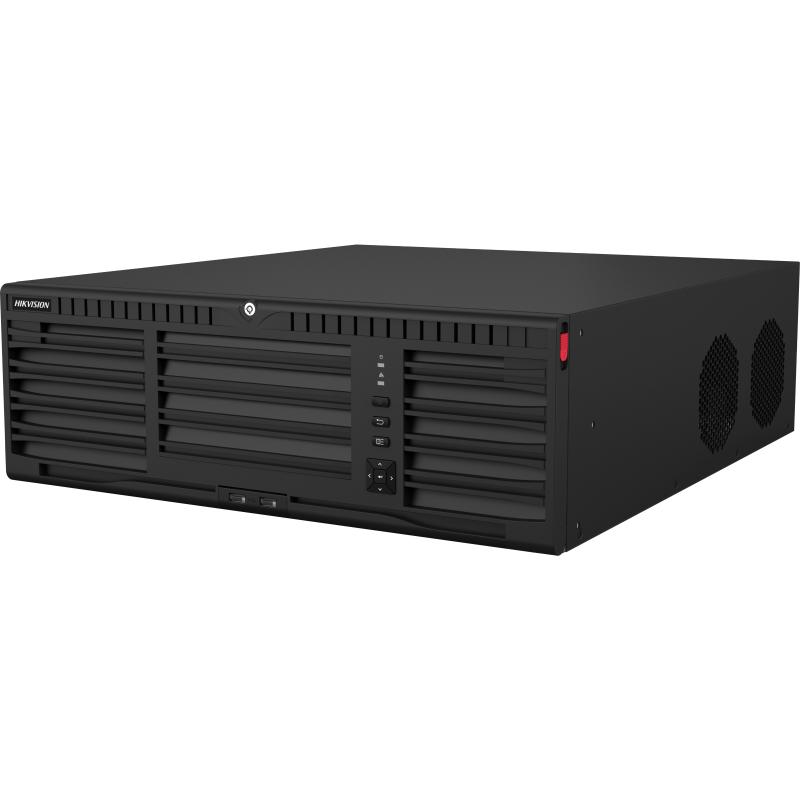

Hikvision DS-9632NI-M16 M Series 8K NVR, Up to 32-ch IP camera inputs, 16x SATA, 1x eSATA, Up to 16 TB capacity for each disk
Model :
SKU : DS-9632NI-M16
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Hikvision DS-9632NI-M16 M Series 8K NVR, Up to 32-ch IP camera inputs, 16x SATA, 1x eSATA, Up to 16 TB capacity for each disk Specifications
| IP Video Input | 32-ch |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI 1 Output | 8K (7680 ?? 4320)/30 Hz, 4K (3840 ?? 2160)/60 Hz, 4K (3840 ?? 2160)/30 Hz, 2K (2560 ?? 1440)/60 Hz, 1920 ?? 1080/60 Hz |
| HDMI 2 Output | 4K (3840 ?? 2160)/60 Hz, 4K (3840 ?? 2160)/30 Hz, 2K (2560 ?? 1440)/60 Hz, 1920 ?? 1080/60 Hz |
| Note | * When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. |
| VGA 1 Output | 1920 ?? 1080/60 Hz |
| VGA 2 Output | 1920 ?? 1080/60 Hz |
| Video Output Mode | HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 ??), resolution: PAL: 704 ?? 576, NTSC: 704 ?? 480 |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 K??) |
| Audio Output | 2-ch, RCA (Linear, 1 K??) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 K??, using the audio input) |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Decoding Capability | 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP???, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Serial Interface | 1 RS-485 (full-duplex), 1 RS-232 |
| SATA | 16 SATA interfaces supporting hot-plug |
| eSATA | 1 eSATA interface |
| Capacity | Up to 16 TB capacity for each disk |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2 ?? USB 2.0; Rear panel: 2 ?? USB 3.0 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. * The Ctrl 12V power is controlled by alarm output 9. |
| DC 12V | 12 VDC, 1 A power output |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | ??? 50 W (without HDD) |
| Working Temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Working Humidity | 10% to 90% |
| Chassis | 3U chassis |
| Dimensions (W ?? D ?? H) | 445 ?? 496 ?? 150 mm (17.5" ?? 19.5" ?? 5.9") |
| Weight | ??? 12.5 kg (without HDD, 27.6 lb.) |
| Certification | CE, FCC |
| CE Certification | EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
