Model :
SKU : DS-K1104MK CARD READER

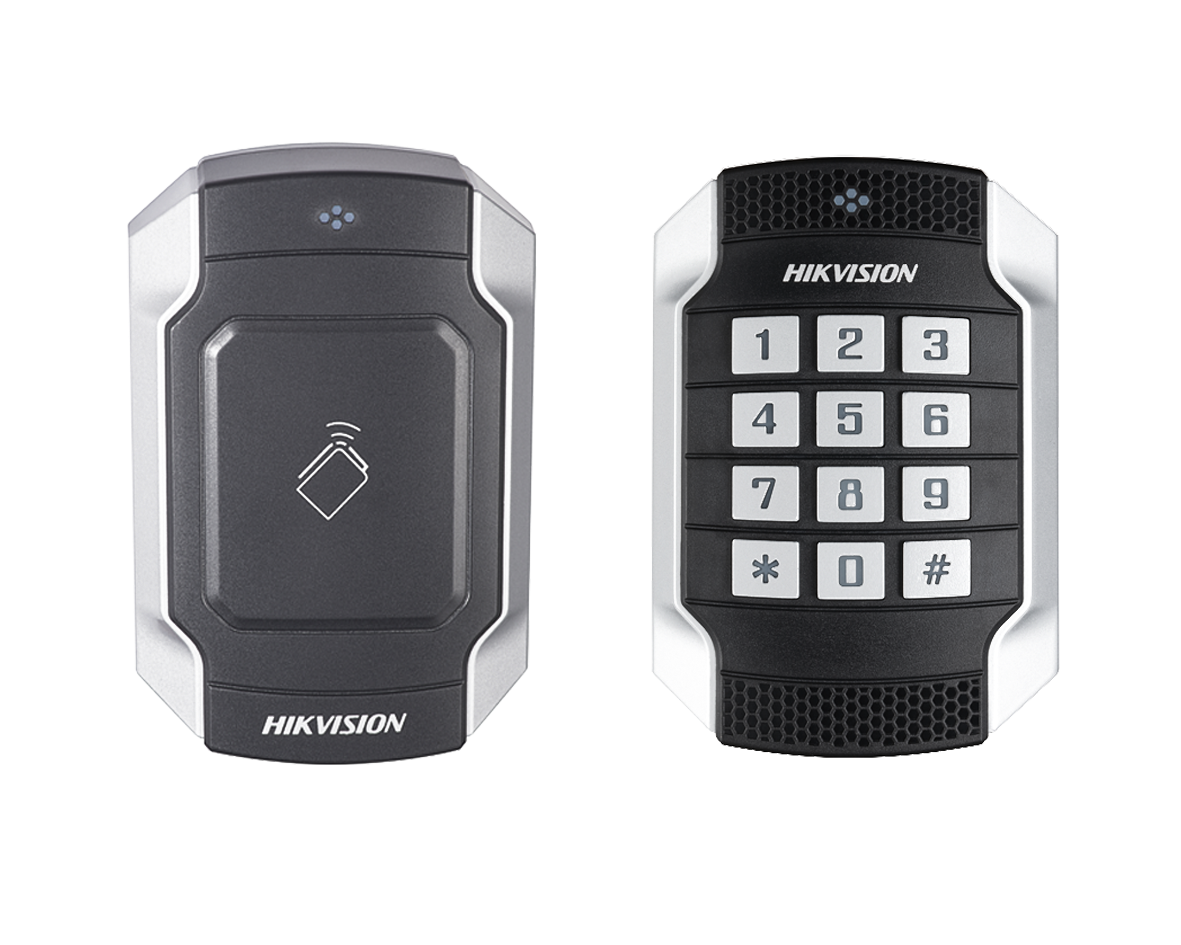

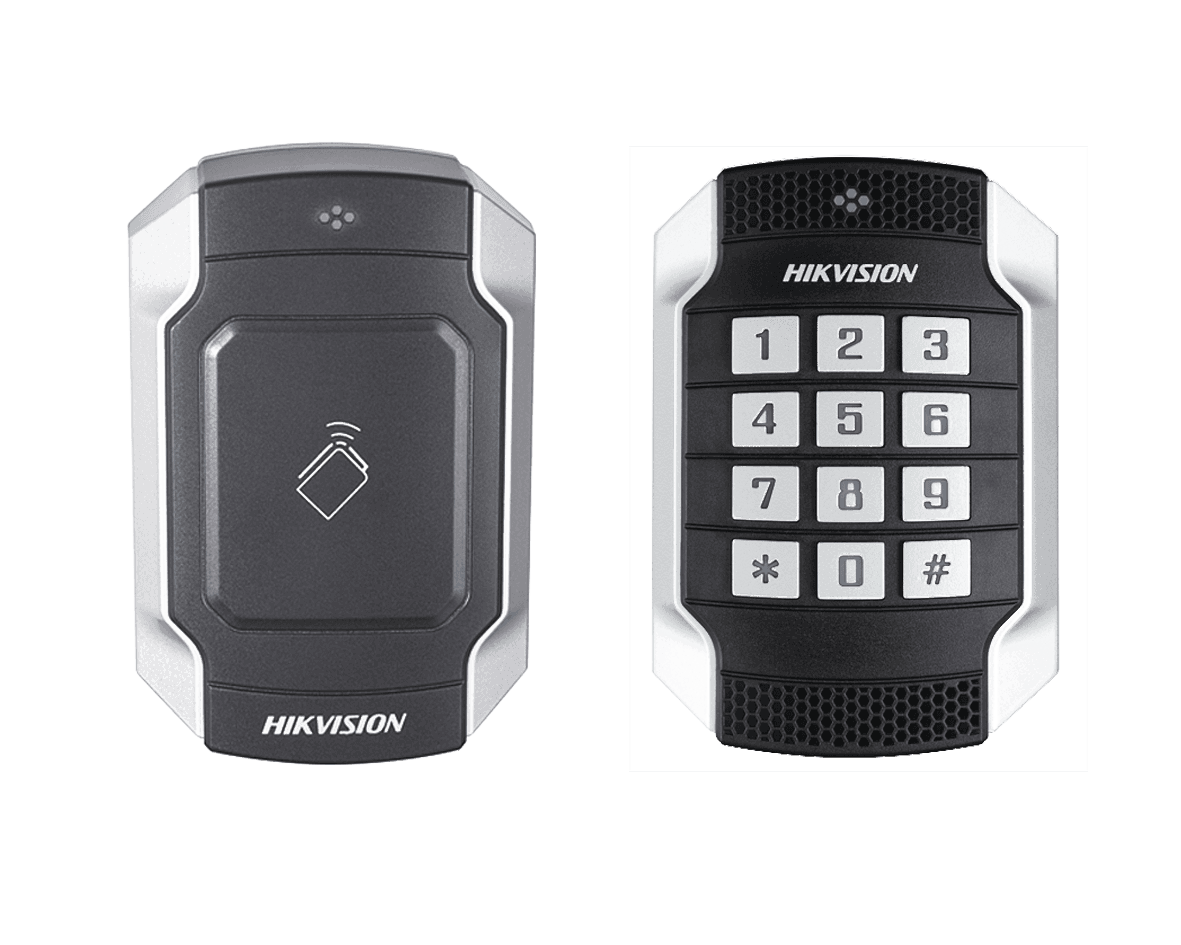

The Hikvision DS-K1104 is a Pro-series access control card reader designed for high-security environments where durability is paramount. Encased in a rugged PC and zinc-alloy shell, this reader is IK10 rated for vandal resistance, making it ideal for outdoor or high-traffic public areas. It supports M1 (Mifare) contactless cards and offers versatile integration via both RS-485 and Wiegand interfaces. With a built-in audible beeper for user feedback and a sleek, industrial design, the DS-K1104 combines professional security with a tamper-resistant build that stands up to the toughest conditions.
When security requires physical resilience, the DS-K1104 Pro Series reader is the industry standard. Specifically engineered for locations prone to tampering or physical impact, this vandal-proof reader ensures that your access control system remains operational even under duress.
IK10 Rated Vandal-Proof Construction: The standout feature of the DS-K1104 is its mechanical strength. Rated IK10, the highest level of protection against external mechanical impacts, this device is shielded by a premium zinc-alloy material shell. This robust housing protects the internal electronics from intentional damage, making it the perfect choice for prisons, schools, public transportation hubs, and unattended industrial sites.
High-Precision M1 Card Reading: Optimized for the widely used M1 (Mifare) card technology, the reader provides rapid, contactless authentication. Its high-speed processor ensures that card data is read and transmitted to the controller instantly, preventing bottlenecking at entry points. An integrated audible beeper provides clear confirmation of successful reads or access errors, improving the user experience.
Dual-Interface Versatility: The DS-K1104 is designed to fit into any existing infrastructure. It supports both the modern, secure RS-485 protocol (for longer distances and encrypted communication) and the industry-standard Wiegand (W26/W34) interface. This dual-interface capability ensures seamless compatibility with both Hikvision access controllers and third-party security systems.
Professional Aesthetic & Reliability: Despite its heavy-duty build, the DS-K1104 maintains a professional, slim profile. The combination of PC (polycarbonate) and zinc alloy provides a weather-resistant and tamper-resistant finish that complements modern architectural styles while providing years of 24/7 dependable service.
| General | |
|---|---|
| Physical | |
| Installation | |
| Keypad | |
| Additional Features | |
| Authentication | Card |
| Card Reading Frequency | 13.56 MHz |
| Power Supply | 12 VDC, ≤ 500 mA |
| Power Consumption | ≤ 2 W |
| Working Temperature | -20 °C to 65 °C (-4 °F to 149 °F) |
| Working Humidity | 10% to 90% (No Condensing) |
| Dimensions | 118 × 76 × 23 mm (4.65 × 2.99 × 0.91 in) |
| Weight | ≤ 0.52 kg (1.1 lb) |
| Mounting Type | 86 & 120 Gang Box |
| DS-K1104M | No Keypad |
| DS-K1104MK | 12-Key Keypad (0–9, *, #) |
| Buzzer | Supported |
| ID Settings | Via DIP Switch |
