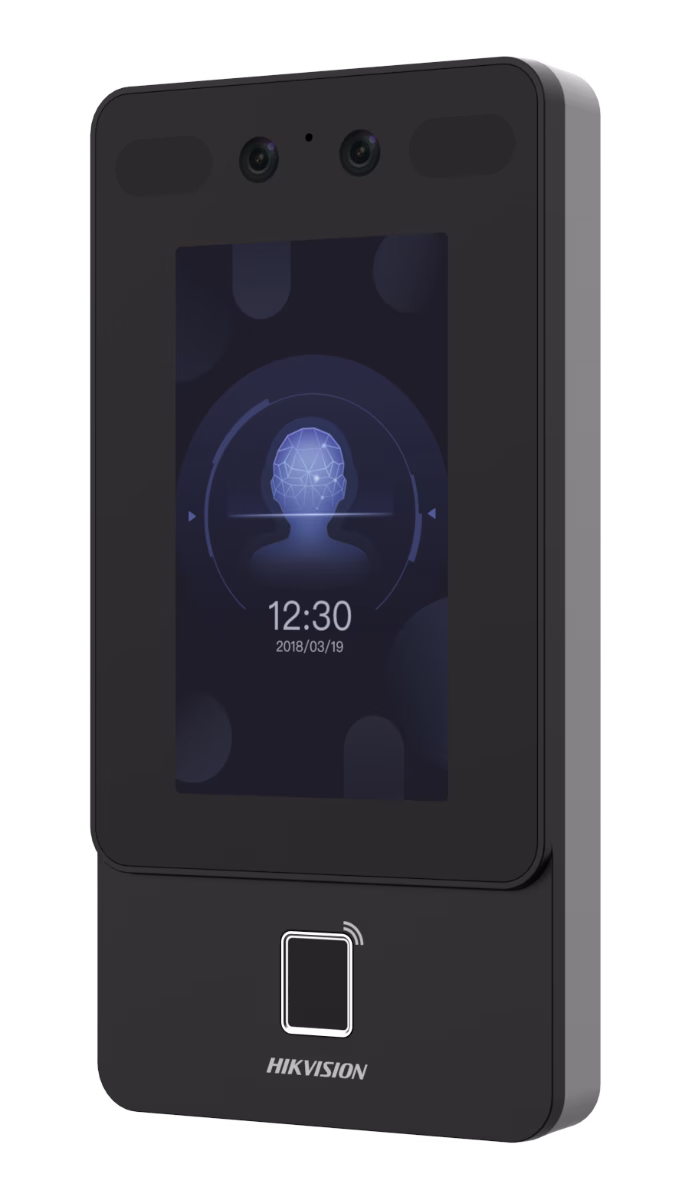

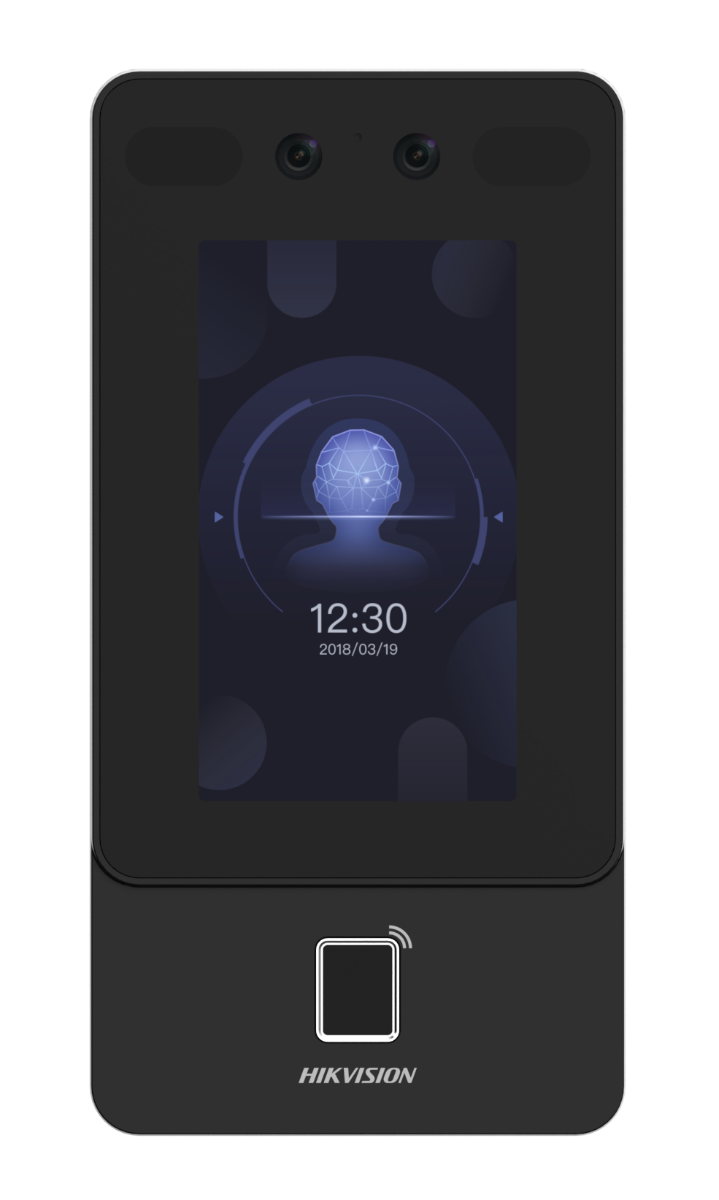

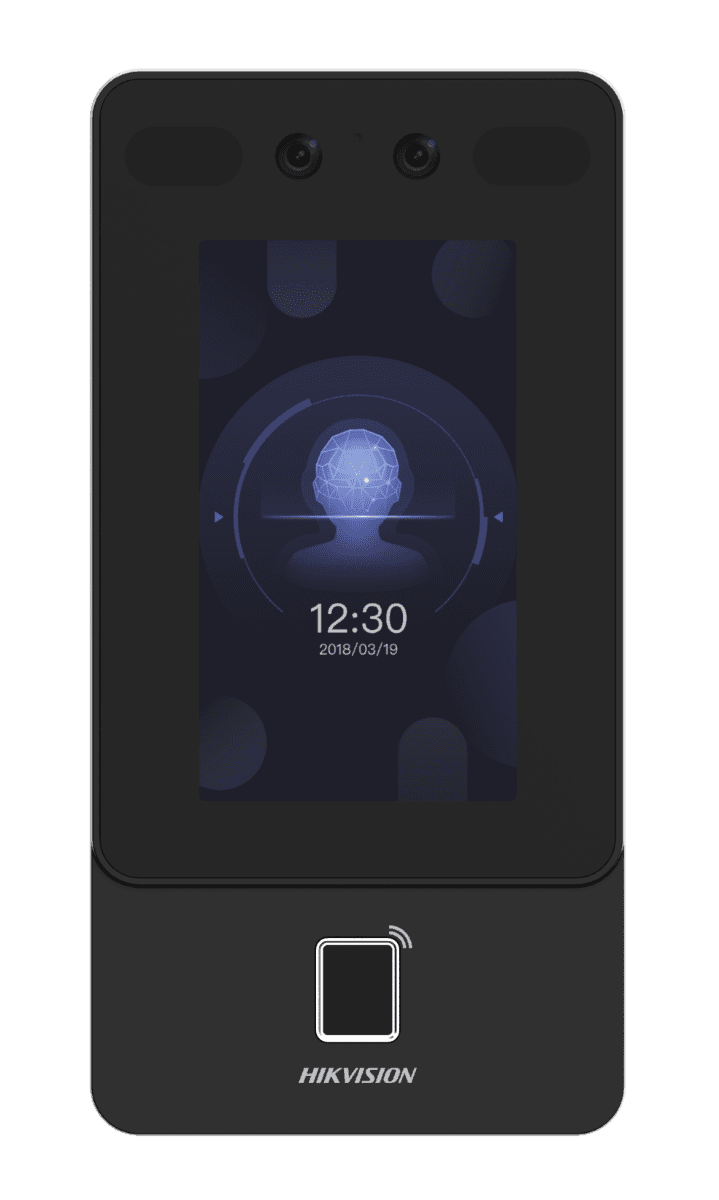

Hikvision DS-K1T342MFWX-E1 Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1card reading module
Model :
SKU : DS-K1T342MFWX-E1
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| Operation System | Linux |
Display
| Dimensions | 4.3-inch |
| Resolution | 272 ?? 480 |
| Type | LCD |
| Operation Method | Capacitive touch screen |
Video
| Pixel | 2 MP |
| Lens | ?? 2 |
| Video Standard | PAL (Default) and NTSC |
Network
| Wired Network | 10 M/100 M self-adaptive |
| Wi-Fi | Support |
Interface
| PoE | IEEE802.3at, standard PoE |
| Network Interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock Output | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| TAMPER | 1 |
| USB | 1 |
Capacity
| Card Capacity | 3,000 |
| Face Capacity | 1,500 |
| Fingerprint Capacity | 3,000 |
| Event Capacity | 150,000 |
Authentication
| Card Type | M1 card |
| Card Reading Frequency | 13.56 MHz |
| Face Recognition Duration | < 0.2 s |
| Face Recognition Accuracy Rate | >99% |
| Face Recognition Distance | 0.3 to 1.5 m |
| Fingerprint Recognition Duration | <1 s |
General
| Power Supply | Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A) Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock) |
| Working Temperature | -30 ??C to 60 ??C (-22 ??F to 140 ??F) |
| Working Humidity | 0 to 90% (No condensing) |
| Dimensions | 91.3 mm ?? 181.3 mm ?? 24.5 mm (3.59" ?? 7.14" ?? 0.96") |
| Installation | Wall Mounting |
| Protective Level | IP65 |
| Language | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean |
| Weight | Gross weight: 0.93 kg (2.05 lbs) Net weight: 0.36 kg (0.79 lbs) |
Function
| Face Anti-Spoofing | Support |
| Audio Prompt | Support |
| Time Synchronization | Support |
