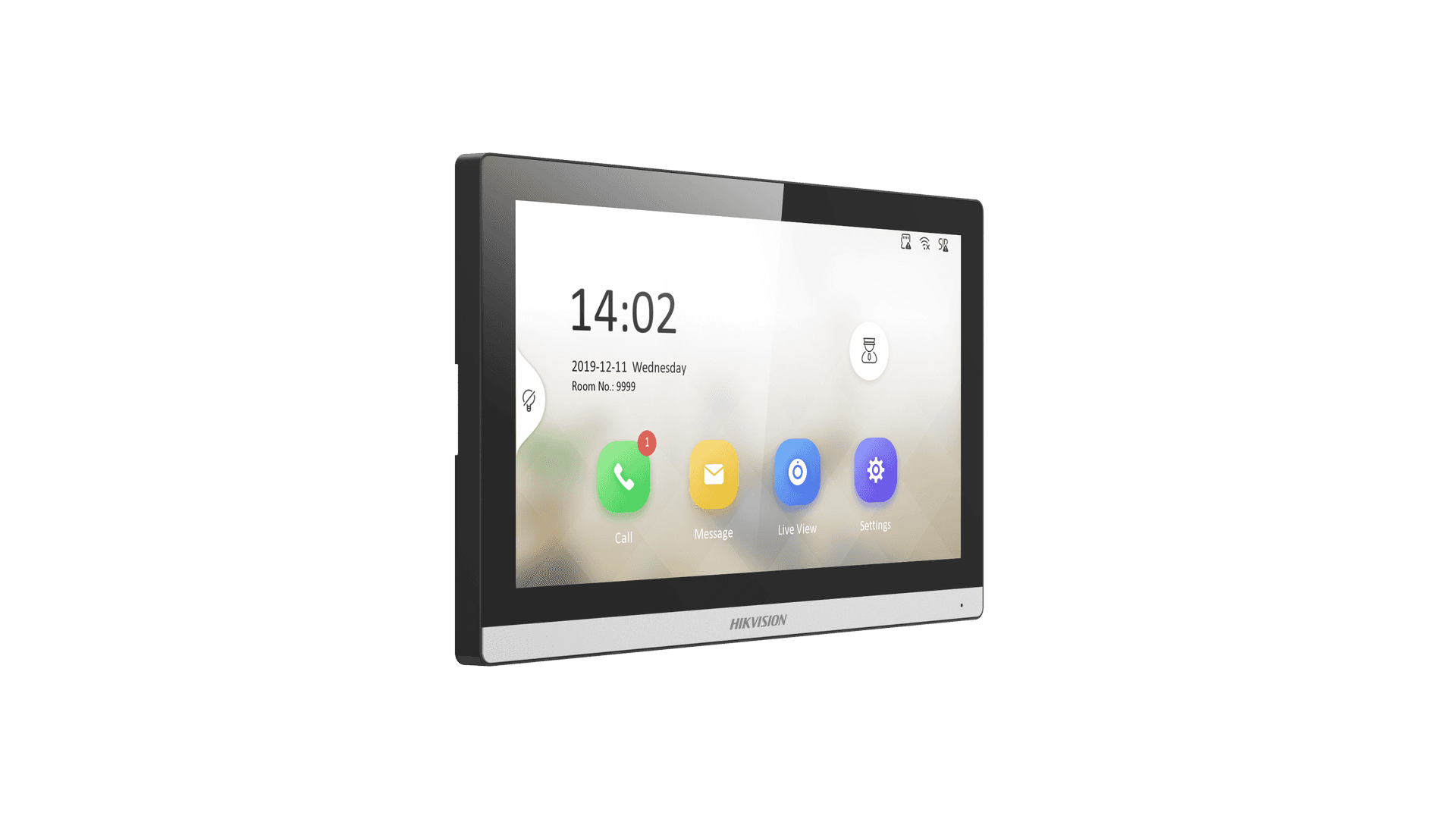

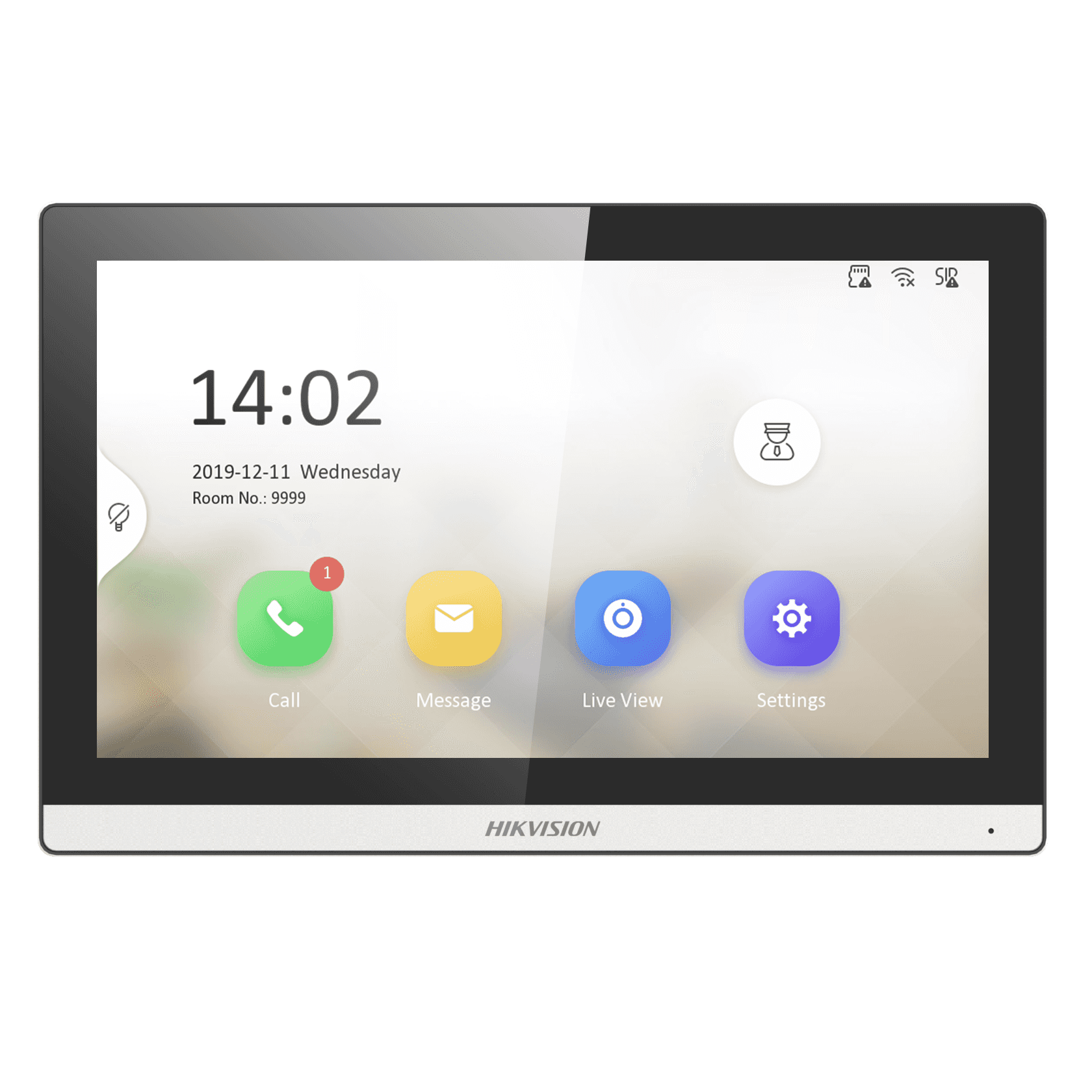

Hikvision DS-KH6350-WTE1 KH6 Series IP Indoor Station, 7-inch 1024x600 Touchscreen, Wi-Fi & PoE, Hik-Connect Mobile Control
Model :
SKU : DS-KH6350-WTE1

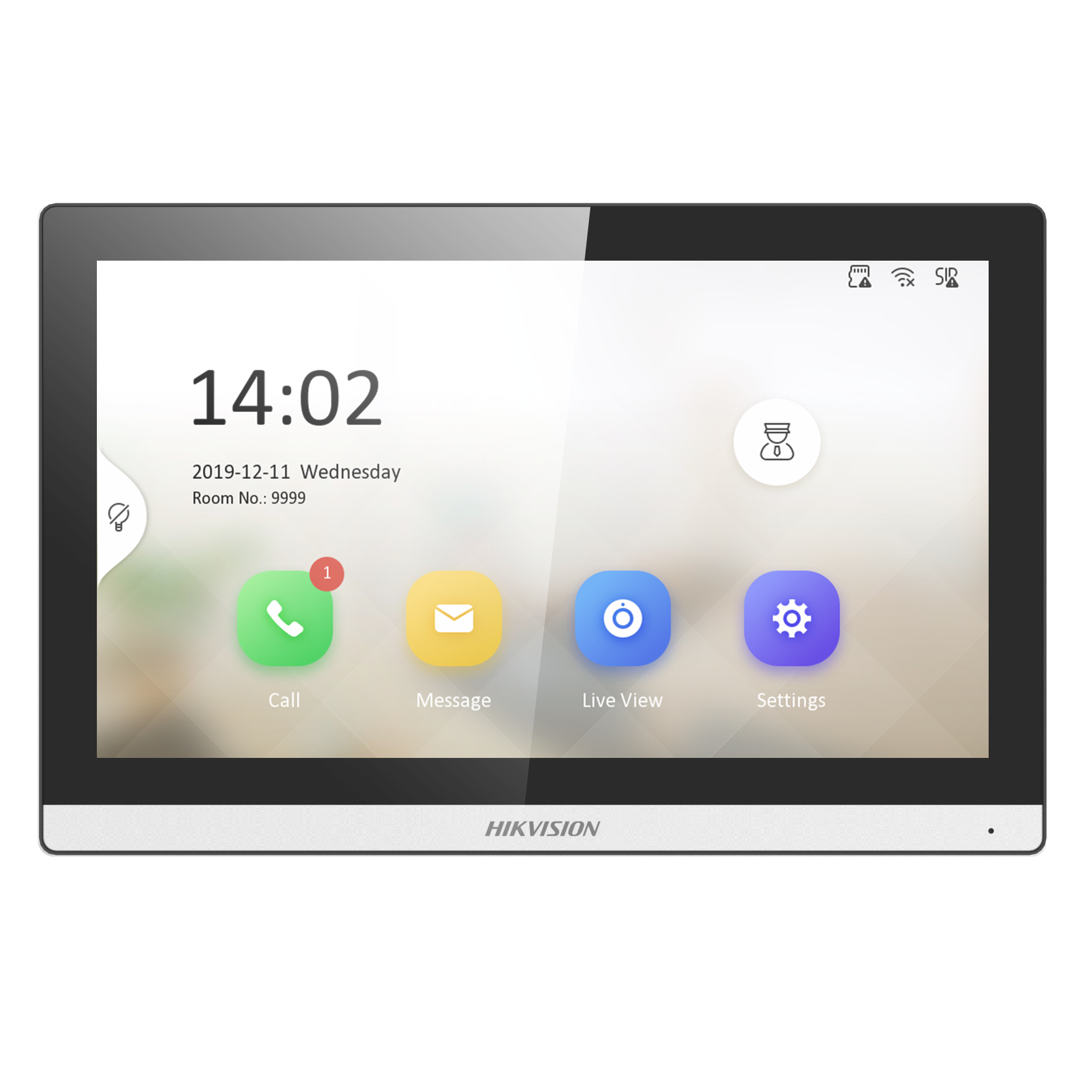

The Hikvision DS-KH6350-WTE1 is a 7-inch IP-based Indoor Station from the KH6 Series, designed to be the central control hub for your video intercom and security system. Featuring a responsive 7-inch TFT touchscreen with 1024 x 600 resolution and a narrow bezel, it offers a user-friendly experience (New UI V2.0). With built-in Wi-Fi and PoE support, setup is simplified, allowing for quick system configuration without a PC. The station provides essential functions like receiving calls, remote door opening, live view of door stations and linked CCTV cameras, and integration with alarm systems and elevator access control via the convenient Hik-Connect App Mobile Control.
Description
Centralized Control for Modern Intercom Systems: Hikvision DS-KH6350-WTE1
The Hikvision DS-KH6350-WTE1 indoor station is a key component of a modern IP video intercom and security ecosystem. It allows users to manage their home or office security, communication, and access control directly from one intuitive touch screen.
Seamless Communication and Access Control:
- Remote Management: Features convenient Hik-Connect APP Mobile Control, enabling users to receive calls, view live video, and open the door remotely from their smartphone or tablet, providing security even when away from home.
- Elevator Access Control: Supports integration with elevator control systems, adding another layer of building security and convenience.
- Voice Messaging: Can support voice messages to be stored and played back when there is no response from the indoor station.
- Bidirectional Audio: Built-in microphone and loudspeaker with noise suppression and echo cancellation ensure clear two-way communication with visitors.
Simplified Setup and System Integration:
- Easy Wizard Setup: The device is designed for easy use without a PC, featuring a quick setup wizard that allows you to configure the entire video intercom system directly on the touch screen.
- CCTV and Alarm Linkage: Allows live viewing of the door station and other linked security cameras (up to 16 linked network cameras) and receives alarms by linkage with an external alarm system (8 Alarm Inputs, 2 Alarm Outputs).
- Flexible Power and Network: Supports both Standard PoE (IEEE802.3af) and 12 VDC power supply, offering installation flexibility. Includes built-in 2.4 GHz Wi-Fi and a 10/100 Mbps Ethernet port.
Key Hardware Specifications:
- Display: 7-inch Colorful TFT Capacitive Touch Screen.
- Resolution: 1024 x 600.
- Storage: Supports TF Card (MicroSD) up to 128 GB for storing captured pictures (200) and alarm records (200).
- Lock Control: Features 2 relay outputs for controlling up to two locks/gates.
- Dimensions: 175 mm x 113.5 mm x 21 mm.
Specification
System Parameters & Technical Specifications
| Operating System | Linux |
| Processor | Embedded high performance processor |
| ROM | 32 MB |
| RAM | 128 MB |
| Screen Size | 7-inch |
| Display Type | Colorful TFT |
| Resolution | 1024 × 600 |
| Operation Method | Capacitive touch screen |
| Video Compression | H.265 / H.264 |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Output | 1 built-in loudspeaker |
| Audio Compression | G.711 U, G.711 A, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
| Audio Bitrate | 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Message Capacity | TF card: 200 pictures & 200 alarm records / Without TF card: 2 MB RAM storage |
| Notice Capacity | 200 |
| Linked Indoor Extensions | 16 |
| Linked Doorphone Capacity | 17 |
| Network Protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | 2.4 GHz (802.11 b/g/n) |
| Alarm Input | 8 |
| Alarm Output | 2 |
| Network Interface | 1 × RJ45 10/100 Mbps |
| RS-485 | 1 × RS-485 (Half duplex) |
| TF Card Support | Up to 128 GB |
| Lock Control | 2 relays (Max. 30 VDC, 0.3 A) |
| Installation | Wall mounting / Table mounting |
| Net Weight | 355 g |
| Gross Weight | 683 g |
| Working Temperature | -10 °C to 50 °C |
| Working Humidity | 10% to 90% (non-condensing) |
| Dimensions (W × H × D) | 175 × 113.5 × 21 mm |
| Application Environment | Indoor |
| Power Consumption | ≤ 5 W |
| Language Support | English, Arabic, French, Russian, Spanish, Italian, German, Portuguese, Turkish, and more |
| Power Supply | 12 VDC, 1 A / IEEE 802.3af PoE |
