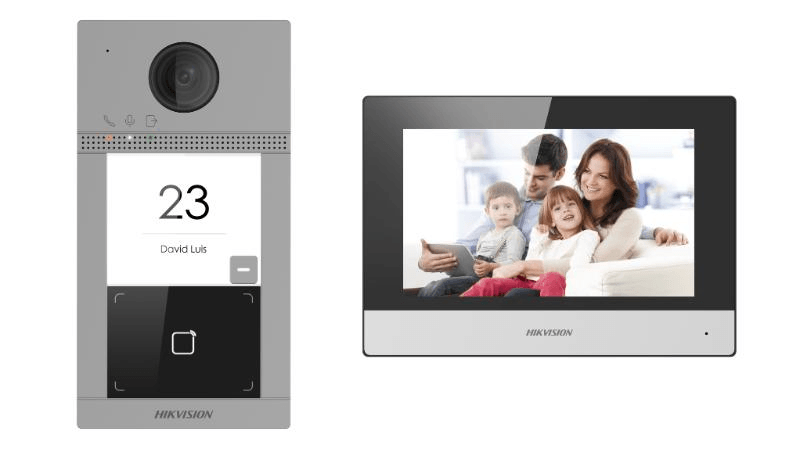

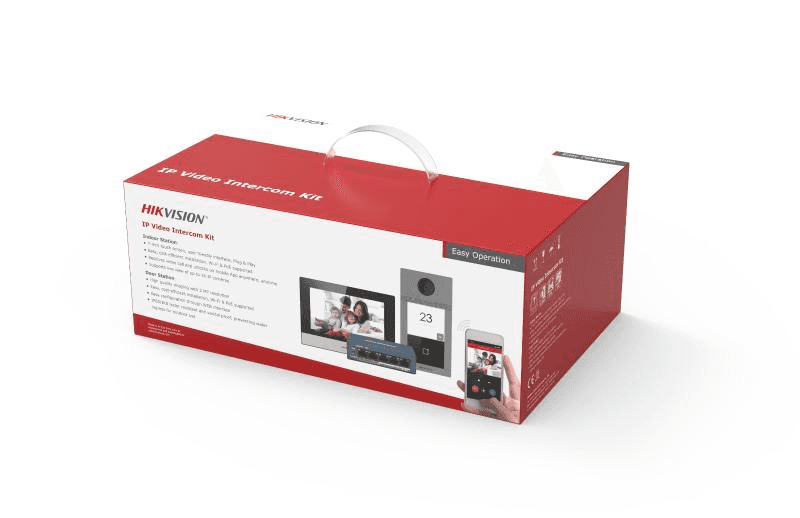

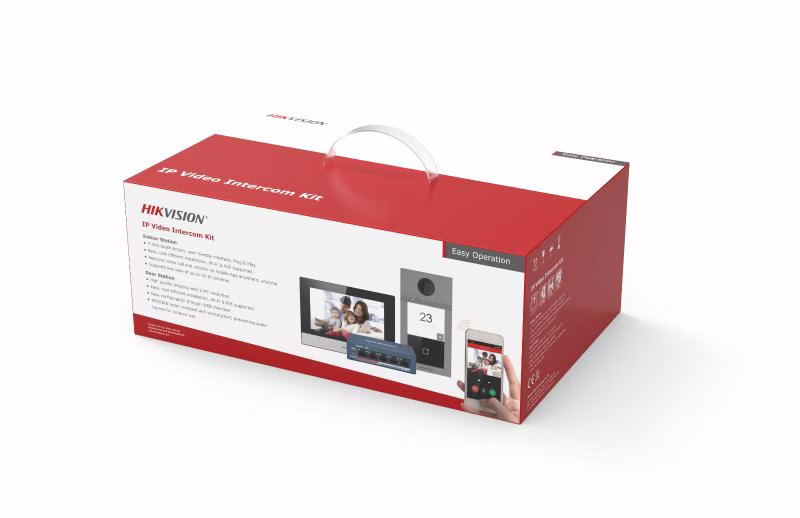

Hikvision DS-KIS604-S(C) Network Video Intercom Kit (Bundle), Network video intercom bundle for villa or house, Stores messages and captured pictures in the TF card
Model :
SKU : DS-KIS604-S(C) KIT
About this item
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Door Station/System Parameters
| Operation system | Embedded Linux operation system |
| Flash | 32 M |
| RAM | 256 M |
Door Station/Video Parameters
| Supplement light | IR supplement |
| Resolution | Main stream: 1920 ?? 1080 Sub stream: 640 ?? 480 |
| Lens | 1 |
| WDR | Support |
| FOV | Horizontal: 124?? Vertical: 75?? |
| Video compression standard | H.264 |
Door Station/Audio Parameters
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker (more than 80 dB within 30 cm) |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Audio compression standard | G.711 U, G.711 A |
| Audio compression Rate | 64 Kbps |
| Audio intercom | Two-way audio communication |
Door Station/Capacity Parameters
| User capacity | 2000 |
Door Station/Network Parameters
| Network protocol | TCP/IP, RTSP |
| Wi-Fi | Wi-Fi 802.11 b/g/n |
| Wired network | 10/100 Mbps self-adaptive Ethernet |
| 3G/4G | / |
| Bluetooth | / |
Door Station/Device Interfaces
| Network interface | 1 |
| RS-485 | 1 |
| Wiegand | 0 |
| Alarm input | 4 |
| Lock control | 2 |
| Exit button | 2 Max. |
| Door contact | 2 |
| Alarm output | 0 |
| Power interface | 1 |
| TAMPER | 1 |
| USB interface | 0 |
| TF card | 1 (reserved) |
Door Station/General
| Button | 1 |
| Indicator | 3 |
| Power consumption | < 10 W |
| Power supply | Standard PoE/12 VDC; IEEE802.3af, standard PoE 12 VDC |
| Working temperature | -40?? C to 53?? C (-40?? F to 127.4?? F) |
| Working humidity | 10% to 95% |
| Dimension | 174 mm ?? 91 mm ?? 29 mm |
| Application environment | Outdoor |
| Protection level | IP65, IK08 |
| Weight | 380 g |
| Installation | Surface Mounting |
Indoor Station/System Parameters
| Operation system | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
Indoor Station/Display Parameters
| Display screen | 7-inch colorful TFT screen |
| Display resolution | 1024 ?? 600 |
| Operation method | Capacitive touch screen |
Indoor Station/Audio Parameters
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
Indoor Station/Network Parameters
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| Wired network | 10/100 Mbps self-adaptive |
| Wireless network | Wi-Fi 802.11 b/g/n |
| Protocol | TCP/IP, SIP, RTSP |
Indoor Station/Device Interfaces
| RS-485 | 1 |
| Alarm input | 8-ch alarm inputs |
| Relay output | 2 |
| TF card | Max to 32 G, SD 2.0 or lower version |
Indoor Station/General
| Power consumption | ??? 6 W |
| Power supply | Standard PoE, 12 VDC |
| Working temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Working humidity | 10% to 90% |
| Dimension (L x W x H) | 200 mm ?? 140 mm ?? 15.1 mm (7.9" ?? 5.5 ?? 0.6") |
