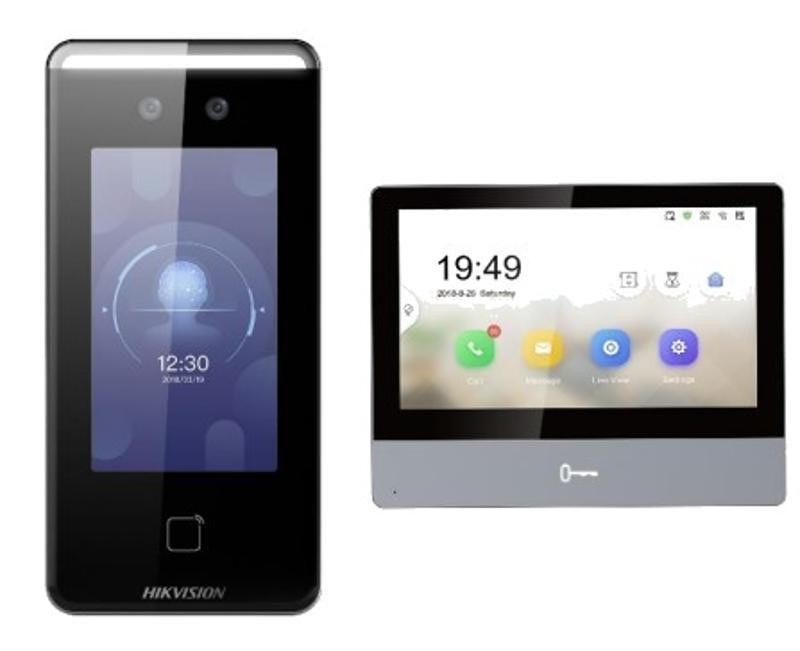

Hikvision DS-KIS605-P Video Intercom Network Kit (Bundle), 7-inch colorful touch screen with resolution 1024 ?? 600, Standard PoE, Access control functions

Face Recognition Terminal and Indoor Station Specifications

Face Recognition Terminal/Audio

Audio input	Built-in omnidirectional microphone
Audio output	Built-in loudspeaker
Volume adjustment	Adjust via device or client

Face Recognition Terminal/Authentication

Card type	M1 card
Card reading distance	0 to 3 cm
Card reading duration	< 1 s
Face recognition duration	< 0.2 s
Face recognition distance	0.3 to 1.5 m

Face Recognition Terminal/Camera

Pixel	2 MP
WDR	Support
Lens	2
Video standard	PAL (Default) and NTSC

Face Recognition Terminal/Capacity

Card capacity	1500
Face capacity	1500
Event capacity	150000

Face Recognition Terminal/Function

Face antispoofing	Support
Live view	Supports live view on the platform, H.264
Face recognition	Supports face recognition in low illumination
Access control management	Support multiple authentication methods

Face Recognition Terminal/General

Protection level	IP65
Power supply	12 VDC, 2A
Working temperature	-30 ??C to 60 ??C (-22 ??F to 140 ??F)
Working humidity	0 to 90% (No condensing)

Face Recognition Terminal/Interfaces

Network interface	1, RJ45
RS-486	1
Wiegand	Wiegand 26 and Wiegand 34
Lock output	1
Exit button	1
Door contact input	1
Power interface	1
TAMPER switch	1
USB	1, USB 2.0

Face Recognition Terminal/Network

Wired network	10/100/1000 Mbps self-adaptive
Communication protocol	ISUP 5.0

Face Recognition Terminal/Screen

Size	4.3-inch
Resolution	800 ?? 480
Operation method	Capacitive touch screen

Face Recognition Terminal/System parameters

Operation system

Embedded Linux operation system

Indoor Station/System parameters

Operation system	Embedded Linux operation system
Memory	128 MB
Flash	32 MB

Indoor Station/Display parameters

Display screen	7-inch colorful IPS LCD
Display resolution	1024 ?? 600
Operation method	Capacitive touch screen, physical button

Indoor Station/Audio parameters

Audio input	Built-in omnidirectional microphone
Audio output	Built-in loudspeaker
Audio quality	Noise suppression and echo cancellation
Audio compression standard	G.711 U
Audio compression Rate	64 Kbps

Indoor Station/Network parameters

Wired network	10/100 Mbps self-adaptive
Wireless network	Wi-Fi 802.11 b/g/n
Protocol	TCP/IP, SIP, RTSP
Network interface	1 RJ-45 10/100 Mbps self-adaptive
Alarm input	8-ch alarm inputs
I/O output	2
TF card	Max to 32 G, SD 2.0 or lower version

Indoor Station/General

Power supply	IEEE802.3af, standard PoE 12 VDC/1 A
Power consumption	??? 7 W
Working temperature	-10 ??C to 55 ??C (14 ??F to 131 ??F)
Working humidity	10% to 90%
Dimension (L x W x H)	180 mm ?? 140 mm ?? 22.4 mm (7.09" ??5.51" ?? 0.88")
Power supply via detector	12 V, 200 mA
Weight	899 g (with packaging) 355 g (without packaging)
